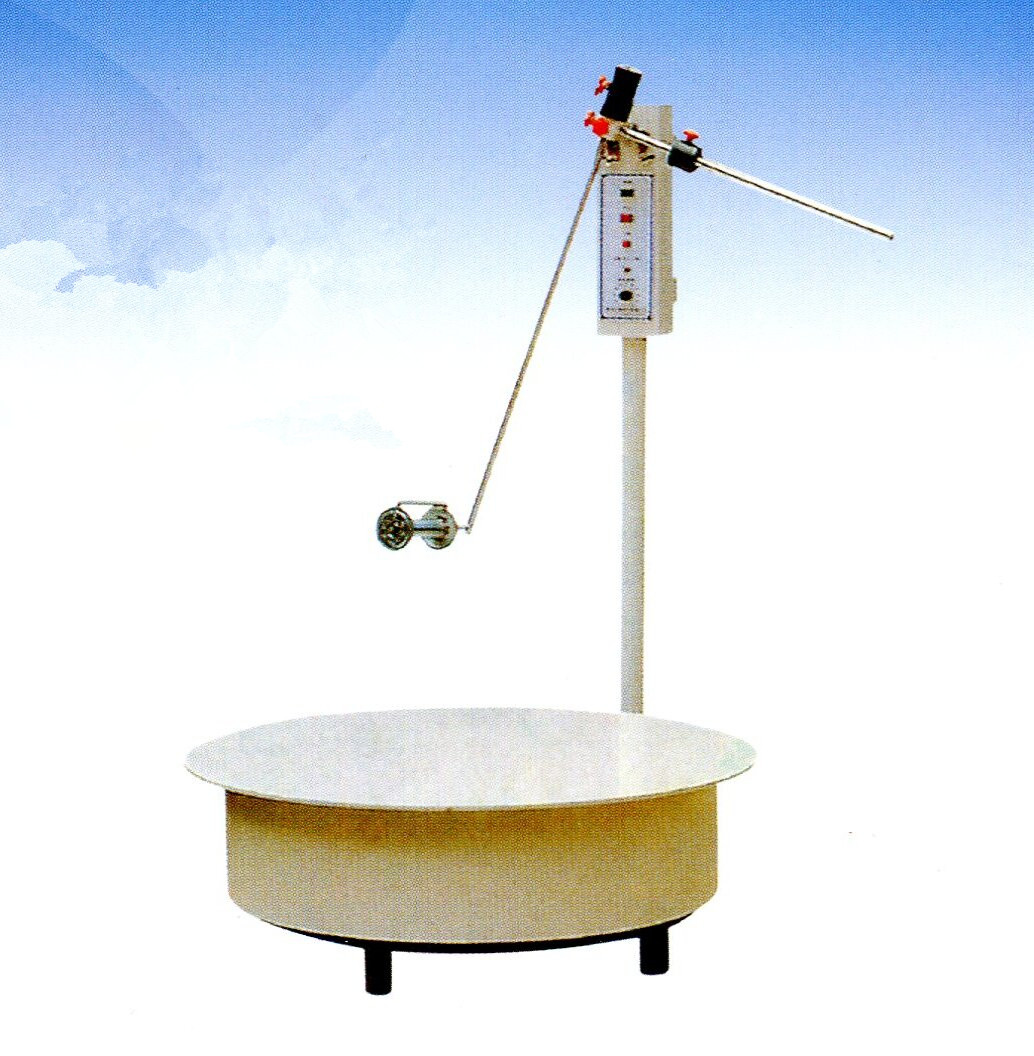

Electronic Flat Uncoiler
Characteristis:
1.Feeding with Inverter,tracer without joints and speed may be adjusted willfully,
2.Coil storage may be overlapped so as to reduce loading times and Savo time
in replacing materials.
3.Operation is easy and structure is solid.
4.Attached safety emergency device,it will inspect itselt when กo materials or over materials.
5.Rotating angle ,operation is smooth without dead angle,which can match leveler to use.
6.Coil storage can be adjusted,the height of the control bar also can be adjusted willfuly.
| Model | FU-1000 | FU-2000 |
| Material Thickness(mm) | 1.0 | 1.2 |
| Max width(mm) | 120 | 150 |
| Max material Weight(kg) | 1000 | 1500 |
| HRLGHT(mm) | 600 | 600 |
| Material O.D(mm) | 800 | 1000 |
| Max Feed speed(m/min) | 0-24 | 0-24 |
| Motor(hp) | 1/2 | 1 |
