Name: Automatic Mandrel Reel Feeder Machine Introduction Contact Control
Brand: Wuxi Tripod Machinery Imp. & Exp. Co., Ltd.
SKU: MT200~800 MT1000/1300/1600
Price: 10,000.00 USD
Availability: InStock

Automatic Mandrel Reel Feeder Machine Introduction Contact Control

1 SET

MOQ

to be negotiated

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Automatic Mandrel Reel

Power: Various According To Different Machine Models

Certification: As Per Customer's Request

Key Selling Points: Long Service Life

After-sales Service: Engineers Available To Service Machinery Overseas

Application: Receiving And Sending Coils Of Various Materials

Voltage: Required

Type: Feeder Machine

Highlight:

Automatic Mandrel Reel

Introduction contact control Mandrel Reel

Automatic Mandrel Reel Feeder Machine

Basic Infomation

Place of Origin: Jiangsu, China

Brand Name: DURA

Certification: CE

Model Number: MT200~800 MT1000/1300/1600

Payment & Shipping Terms

Packaging Details: plywood case or nude package

Delivery Time: 1 Set/30 Days; ＞1 To Be Negotiated

Payment Terms: L/C, D/P, T/T

Supply Ability: 100 Sets Per Month

Gallery

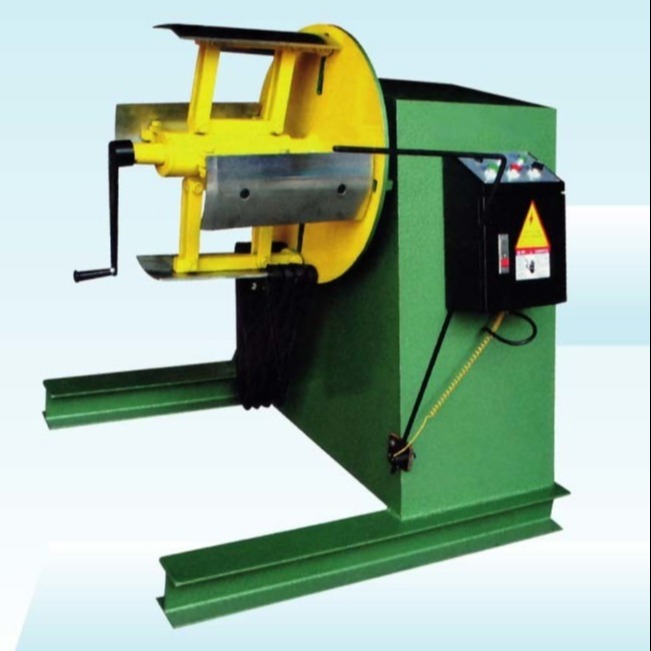

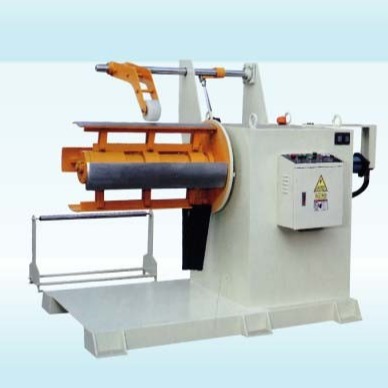

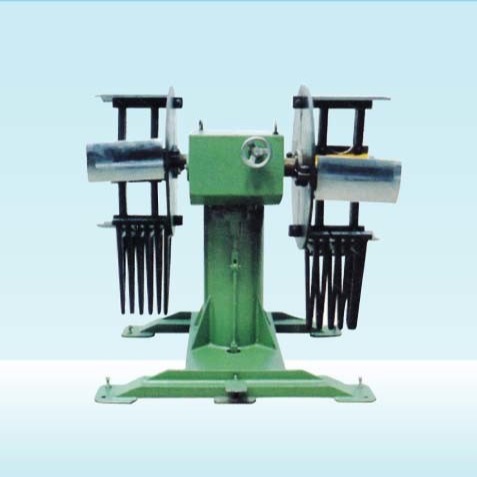

Automatic Mandrel Reel Feeder Machine Introduction Contact Control

Product Description

Automatic Mandrel Reel

Characteristics:

1.This is a necessary part in full automation production.It sves manpower, material and lowers cost;

2.The barking device may be adjusted,its shaft is reinforced and will load more.

The rolling of material will be more smooth;

3.It will take and feed various kings of coil stock,metal and non-metal sheets;

4.Introduction contact control is fitted,so it is easy and safe to operate it.

Japanese electromagnetic contact strike and motor parts,less trouble,long life.

Model	MT-200	MT-300	MT-400	MT-500	MT-600	MT-700	MT-800
Width of material(mm)	200	300	400	500	600	700	800
Thickness of material(mm)	2
Coil.D(mm)	450-530
Coil O.D(mm)	1200
Coil weight (kg)	500	1000	1500	2000	2500	3000	3000
Feed speed(m/min)	15
Motor(hp)	1/2	1	1	2	2	3	3
Machine weight(kg)	275	350	550	800	900	1000	1500
Machine ABC(m)	1.00.81.1	1.11.01.2	1.21.11.3	1.41.21.3	1.51.21.3	1.71.31.4	1.81.41.4

Model	MT-1000	MT-1300	MT-1600
Width of material(mm)	1000	1300	1600
Thickness of material(mm)	2
Coil.D(mm)	450-530
Coil O.D(mm)	1200
Coil weight (kg)	5000
Feed speed(m/min)	15
Motor(hp)	5	7.5	10
Machine weight(kg)	2000	3000	4000
Machine ABC(m)	2.01.51.6	2.51.81.8	3.02.02.0

Automatic Mandrel Reel Feeder Machine Introduction Contact Control 0
