Name: Roofing Nail Head Press Making Machine Cap Forming
Brand: Wuxi Tripod Machinery Imp. & Exp. Co., Ltd.
SKU: J23-16B J23-40 BJ23-16B BJ23-40
Price: 10,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Roofing Nail Head Press Machine

Machine Type: Nail Making Machine

After-sales Service: Online Support, Field Installation, Commissioning And Training, Video Technical Support;

After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance

Warranty: One Year

Key Selling Points: Competitive Price

Application: Domed Head Nail Production

Local Service Location: None

Highlight:

Roofing Nail Making machine

Cap forming Roofing Nail Making machine

roofing nail machine

Basic Infomation

Place of Origin: Jiangsu, China

Brand Name: DURA

Certification: CE

Model Number: J23-16B J23-40 BJ23-16B BJ23-40

Payment & Shipping Terms

Packaging Details: Steel Pallet or Plywood Case under Request

Delivery Time: 1 Set/30 Days; ＞1 To Be Negotiated

Payment Terms: L/C, D/P, T/T

Supply Ability: 100 Sets Per Month

Gallery

Roofing Nail Head Press Making Machine Cap Forming

Product Description

Hot Selling Cap Striking Machine For Domed Head Nail / Roofing Nail Productio

Features:

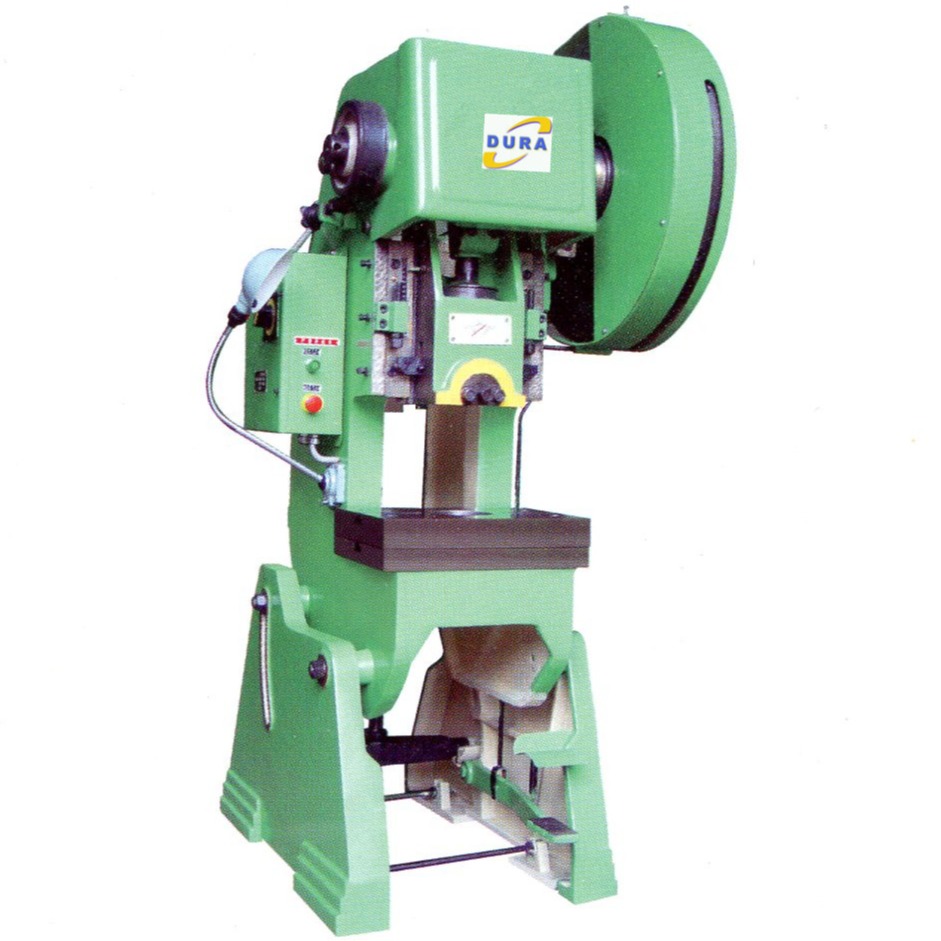

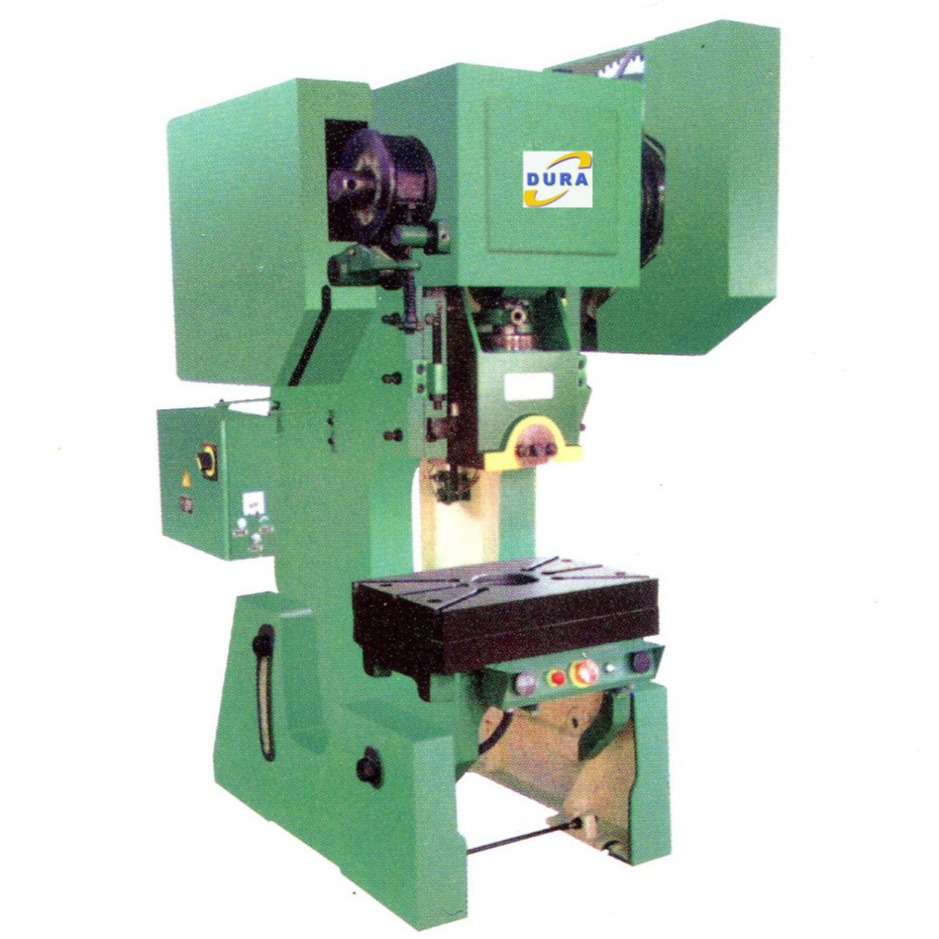

- Dies & die frame are not displayed in photo of the press machine
- Basic technical specifications: see table 2-2 - Position: the machine is horizontally set on the floor - Capacity for domed nail heads : 125pcs x 2/min - 2 domed nail heads are made in each stroke - The automatic air feeder is fixed above the worktable - The sizes of the steel strip applied in the feeder are suggested as follows:

Table 2-1
No.	Dia. of domed head	Width x Thickness
1	20mm	45 x 1.2mm
2	18mm	41 x 1.1mm
3	14mm	34 x 1.0mm

- Dies/moulds set for only one of above sizes is covered in seller’s price.

Table 2-2
Model And Descriptions	Unit	J23-16B	J23-40
Nominal force	KN	160	400
Slide block stroke	mm	70	100
Number of stroke	Min.	125	55
Max. die set height	mm	170	220
Die set height adjustment	mm	45	80
Distance from slide block centre to the frame	mm	170	240
Worktable dimensions (W x L)	mm	320 x 480	460x700
Hole dimensions in bed: Dia. x Depth x Width	mm	Ø210 x 160 x 240	Ø150 x 320 x 270
Thickness of worktable	mm	60	80
Sizes of slide block bottom (W x L)	mm	180 x 200	x270
Sizes of the handle hole : Dia. x Depth	mm	Ø40 x 60	Ø50 x 60
Max. tilting angle of body	Deg.	25°	25°
Motor power (Type: Y2 100L-6)	kw	1.5KW	4KW
Net weight(approx.)	kg	1080	3400
Overall dimensions (L×W×H)	mm	1150 x 900 x 1055	1500 x 1180 x 2300

Roofing Nail Production Flow:

Cap forming(Domed nail head press machine/cap former) → cap polishing(polishing machine) → roofing nail making(roofing nail making machine) → galvanizing(galvanizing equipment) → packing.
*Device for making twist/threaded roofing nails is available under request.

Roofing nail making machine, polishing machine and other machine and accessories are available.
