NCF Servo Roll Feeder-Features High Speed and Long-length Material Feeding

1 SET
MOQ
to be negotiated
Price
NCF Servo Roll Feeder-Features High Speed and Long-length Material Feeding
Features Gallery Product Description Request A Quote
Features
Specifications
Name: NCF Servo Roll Feeder-Features High Speed And Long-length Material Feeding
Condition: New
Warranty: 1 Year
Key Selling Points: Easy To Operate
Local Service Location: None
Showroom Location: None
Machine Type: Feeder
Application: Metal Sheet Feeding
High Light:

Servo Roll Feeder Equipment

,

60m Min Compact Servo Roll Feeder

,

Compact Servo Roll Feeder Machine

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: NCF Series
Payment & Shipping Terms
Packaging Details: Plywood Case or Carton
Delivery Time: 1 Set/10 Days; >1 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Month
Product Description

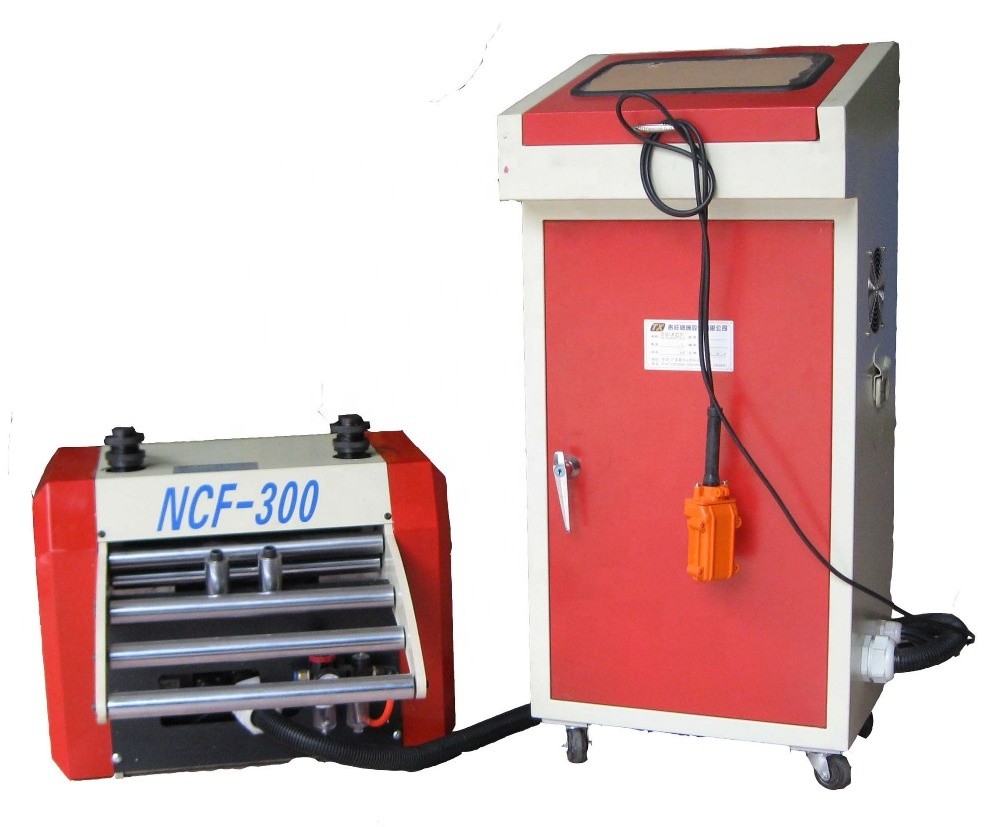

NCF Servo Roll Feeder-Features High Speed and Long-length Material Feeding



Features

1. Suitable for feeding materials of various thickness and length.

2. Suitable for high speed and long-length feeding, improving efficiency and feeding

accuracy.

3. User-friendly manual mode for easy operation, with feeding length and speed input

keyboard. Operator can set the data freely and quickly, from 0.1mm to 9999.99mm.

4.Application of mechanical release and pneumatic relaxation device(accurate relaxation point), long life, less mailfunction, best choice for automation.



Structure

1. Apply high quality, nonelectric brush servo motor drive, effectively shorten the time of feeding length adjustment and testing. 2. Apply high-sensitivity decoder with feeding precision of ±0.02mm. 3. Equipped with timing belt drive, eliminating gear clearance, abrasion, noise, with no need for lubricant, safe and eco-friendly. 4. Built-in motor unit, avoiding damage caused from transporting and handling.



Model Unit NCF-200 NCF-300 NCF-400
Max. Feeding width mm 200 300 400
Max. Feeding length mm 99999.99 9999.99 9999.99
Material thickness mm 0.2-3.2 0.2-3.2 0.2-3.2
Mold line height mm 70-150 100-170 100-170
Max. Feeding speed m/min 20 20 20
