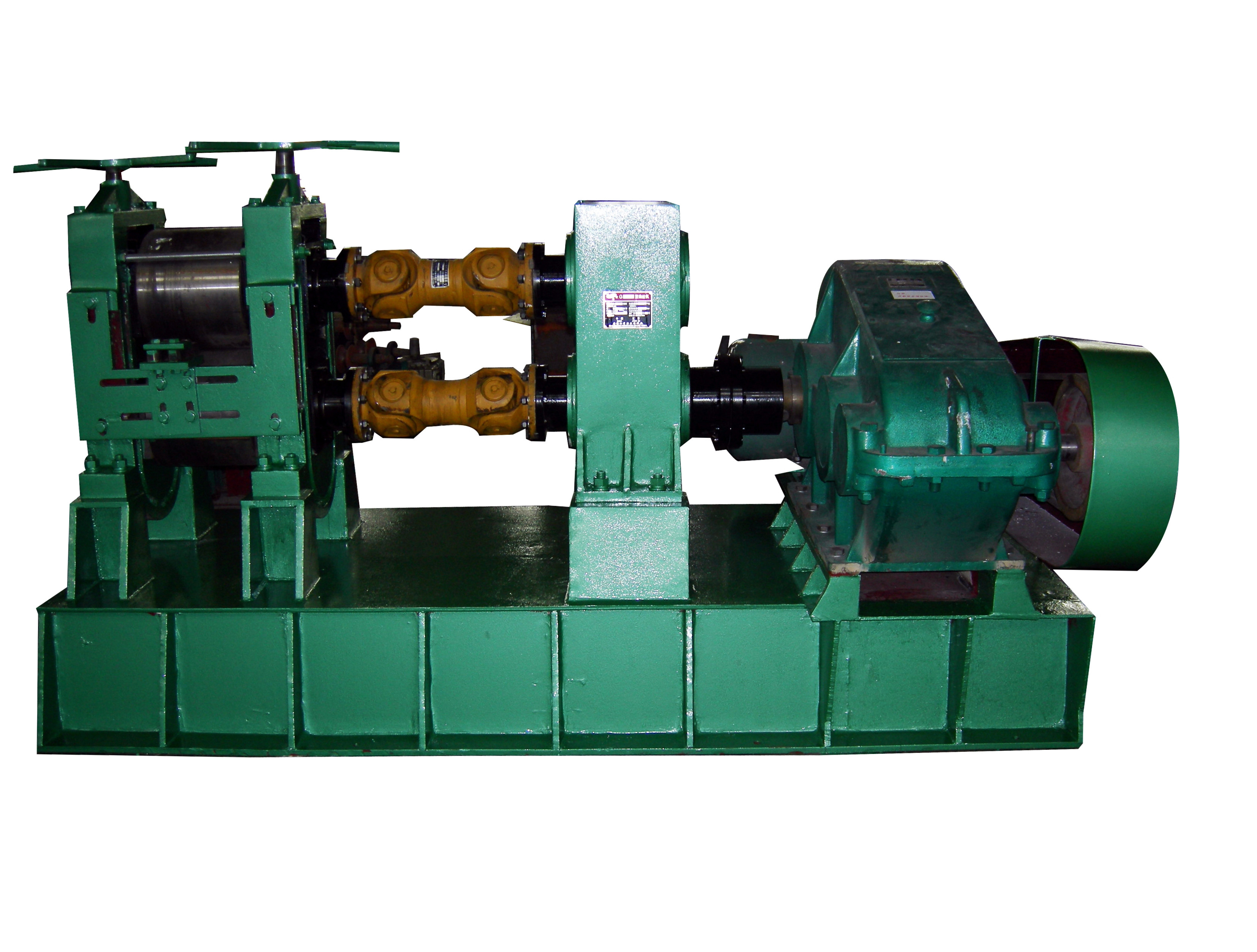

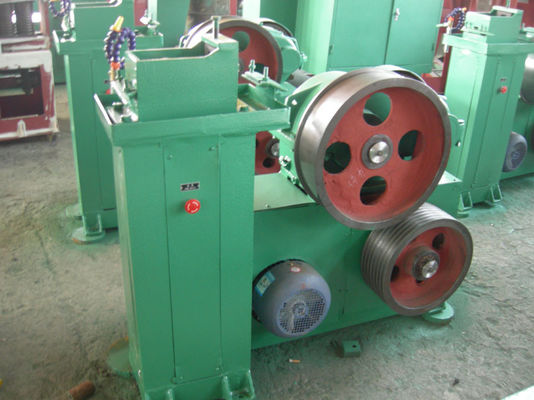

Flat Bar Fine Drawing and Coiling Machine
The following machinery is necessary for making cross section II type flat bar:
C-1. Flat bar fine drawing Unit
| Technical data | Model | FFW-500 | FFW-500(L) |
| Oulet flat bar size | mm | W x T - 12 x 3 | W x T - 12.2 x 3 |
| Flat bar drawing die | Fixed or 4-pc adjustable type | Fixed or 4-pc adjustable type | |
| Capstan diameter | mm | Ø500 | Ø500 |
| Drawing speed | M/min. | 30 | 60-80 |
| Motor power | kw | 7.5 | 15 |
| Frequency Inverter | kw | 7.5 | 15 |
| Net Weight(approx.) | kg | 1400 | 1700 |
C-2. Flat bar spool coiler
| Technical data | Model | FFC-500 | FFC-1200 |
| Spool size | mm | Ø500 | Ø1200 |
| Designed spool coiling capacity | kg | 100 ( or as per user’s requirement) | As per user’s requirement |
| Motor power | kw | 4 | 15 |
| Frequency Inverter | kw | 4 | 15 |
| Net Weight(approx.) | kg | 800 | 3200 |
