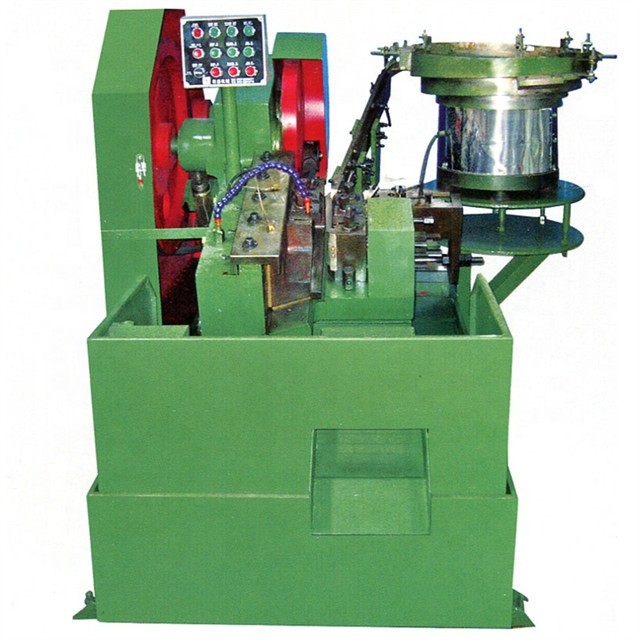

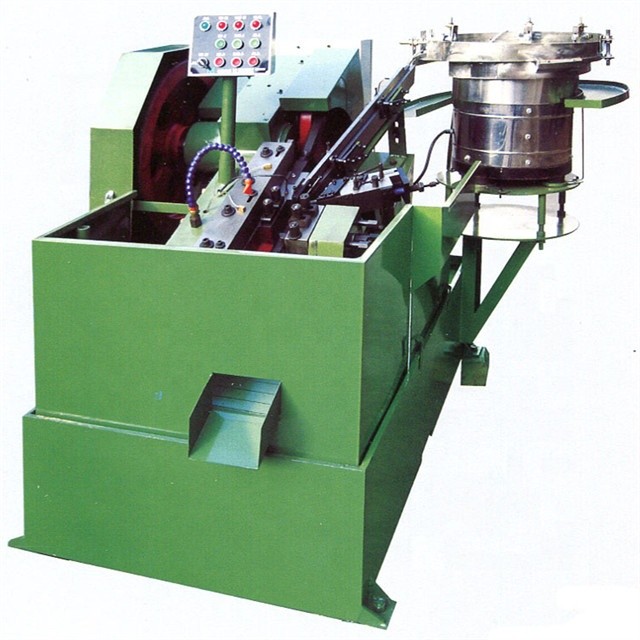

Automatic High Speed Thread Rolling Machines for Screw Production
The machine is designed for precise machining of all types of screw thread conforming to the Metric System, Japanese System, American System, etc. Vibrating feeder is available upon customer's request.
| Model |
Threading Dia. Range (mm) |
Max. Screw / Bolt Length to be processed (mm) |
Max. Capacity (pcs/min.) |
Fixed/Moving Threading Die Size(mm) |
Main Motor (kw) |
Net Weight (kg) |
| TM-004 | Φ2-4 | 25 | 200-300 | 65/80*20*25 | 2.2 | 650 |
| TM-4S | Φ2.5-4 | 50 | 180-240 | 75/90*25*50 | 3 | 900 |
| TM-6S/6Z | Φ4-6 | 75 | 140-180 | 110/125*25*80 | 4 | 1300 |
| TM-8Z | Φ5-8 | 120 | 70-100 | 150/170*30*120 | 5.5 | 2000 |
| TM-10Z | Φ6-10 | 120 | 60-80 | 150/170*30*120 | 11 | 2200 |
| TM-10ZX | Φ6-10 | 150 | 60 | 190/210*40*150 | 11 | 3000 |
