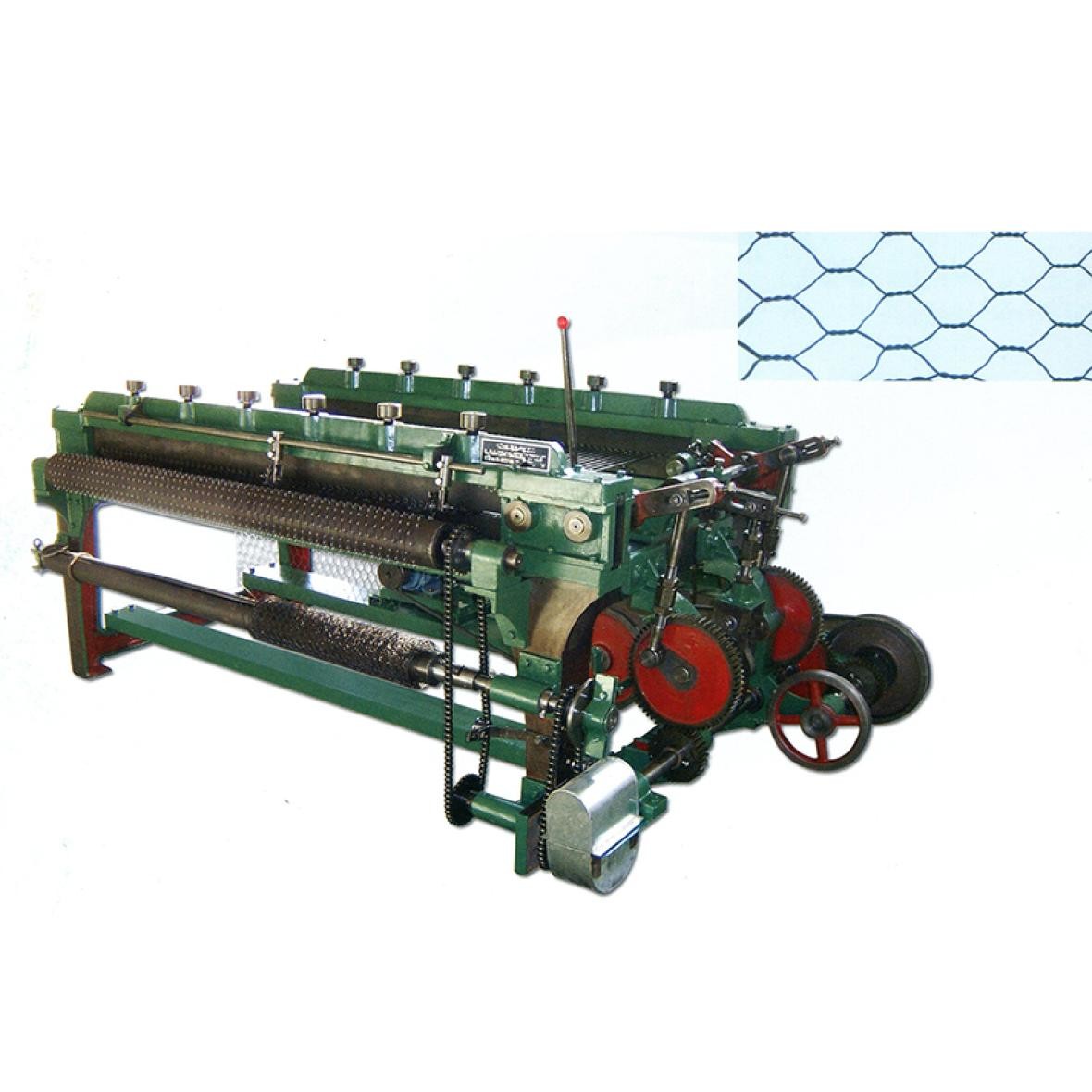

Hexagonal Wire Mesh Machine
Application of Hexagonal Wire Mesh
- river training
- soil conservation
- retaining structures
- landscaping, gabion revetment
- lining og canals and dams
- marine works, rockfall protection
- highway slope protection
- highway fencing mesh
Technical specifications
Mesh size (mm) | Max. width (mm) | Max. Wire dia. (mm) | Twist modle | Speed of main axle | Motor power (kw) | Theoretical manufacturing speed | Exterior size (L*W*H)(mm) | Weight (T) | |
Mesh hole No./min. | M/hr. | ||||||||
60×80 | 2300 | 2.8 | double | 25 | 11 | 25 | 165 | 5200*1400*2400 | 13 |
3300 | 15 | 6200*1400*2400 | 14 | ||||||
4300 | 22 | 7200*1400*2400 | 15 | ||||||
80×10 | 2300 | 3.0 | 11 | 195 | 5200*1400*2400 | 13 | |||
3300 | 15 | 6200*1400*2400 | 14 | ||||||
4300 | 22 | 7200*1400*2400 | 15 | ||||||
100×120 | 2300 | 3.2 | 11 | 225 | 5200*1400*2400 | 13 | |||
3300 | 15 | 6200*1400*2400 | 14 | ||||||
4300 | 22 | 7200*1400*2400 | 15 | ||||||
120×150 | 2300 | 3.5 | triple | 11 | 255 | 5200*1400*2400 | 13 | ||
3300 | 15 | 6200*1400*2400 | 14 | ||||||
4300 | 22 | 7200*1400*2400 | 15 |
Wire for making hexagonal wire mesh
Mesh size (mm) | Max. Galvanised wire dia.(mm) | Max. PVC-coated wire dia.(mm) | Galvanised selvedge wire dia. | PVC selvedge wire dia.(mm) |
50×70 | 2.8 | 4.0 | >2.8 | >4.0 |
60×80 | 2.8 | 4.0 | >2.8 | >4.0 |
80×100 | 3.0 | 4.2 | >3.0 | >4.2 |
100×120 | 3.2 | 4.4 | >3.2 | >4.4 |
120×150 | 4.0 | 5.2 | >4.0 | >5.2 |
