Introduction

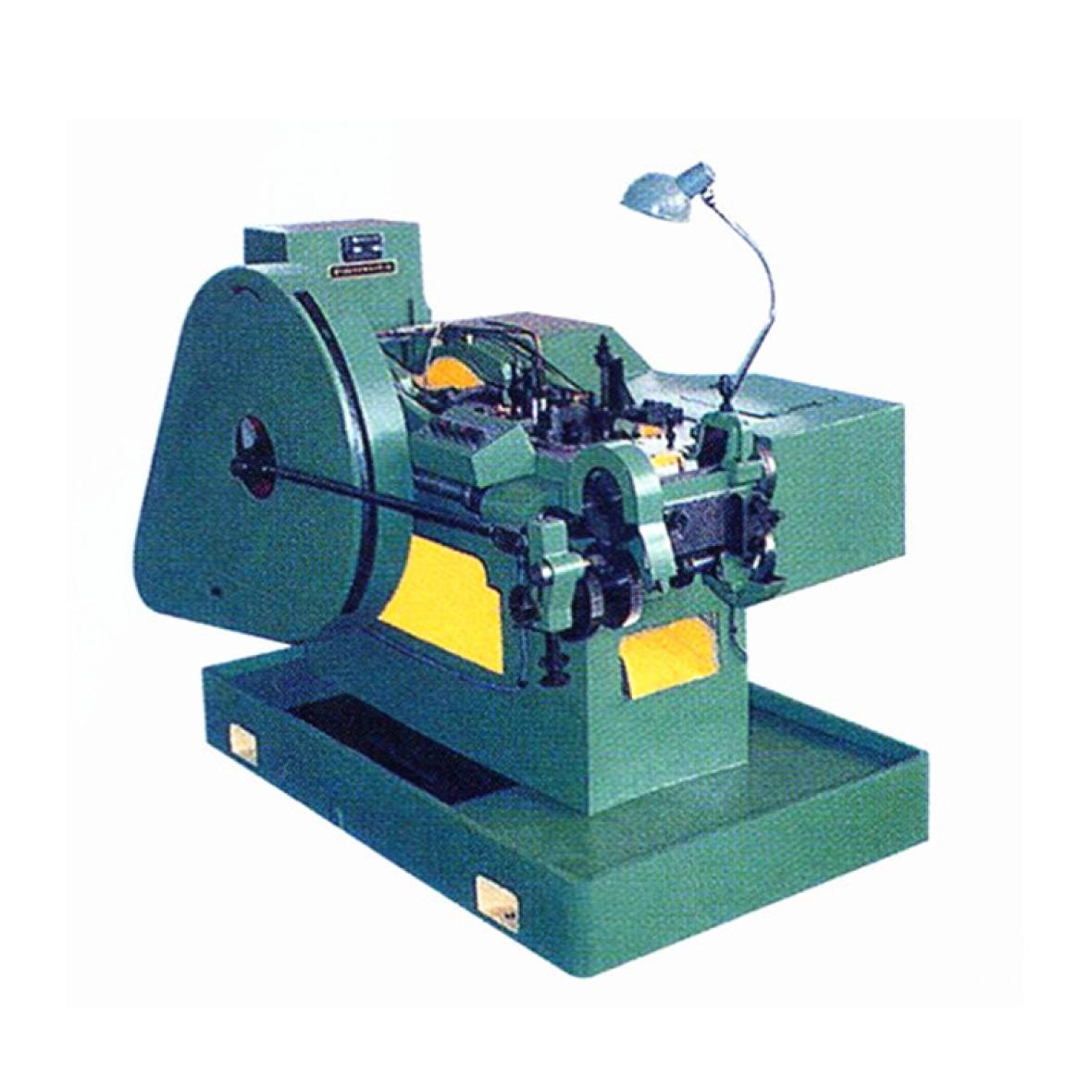

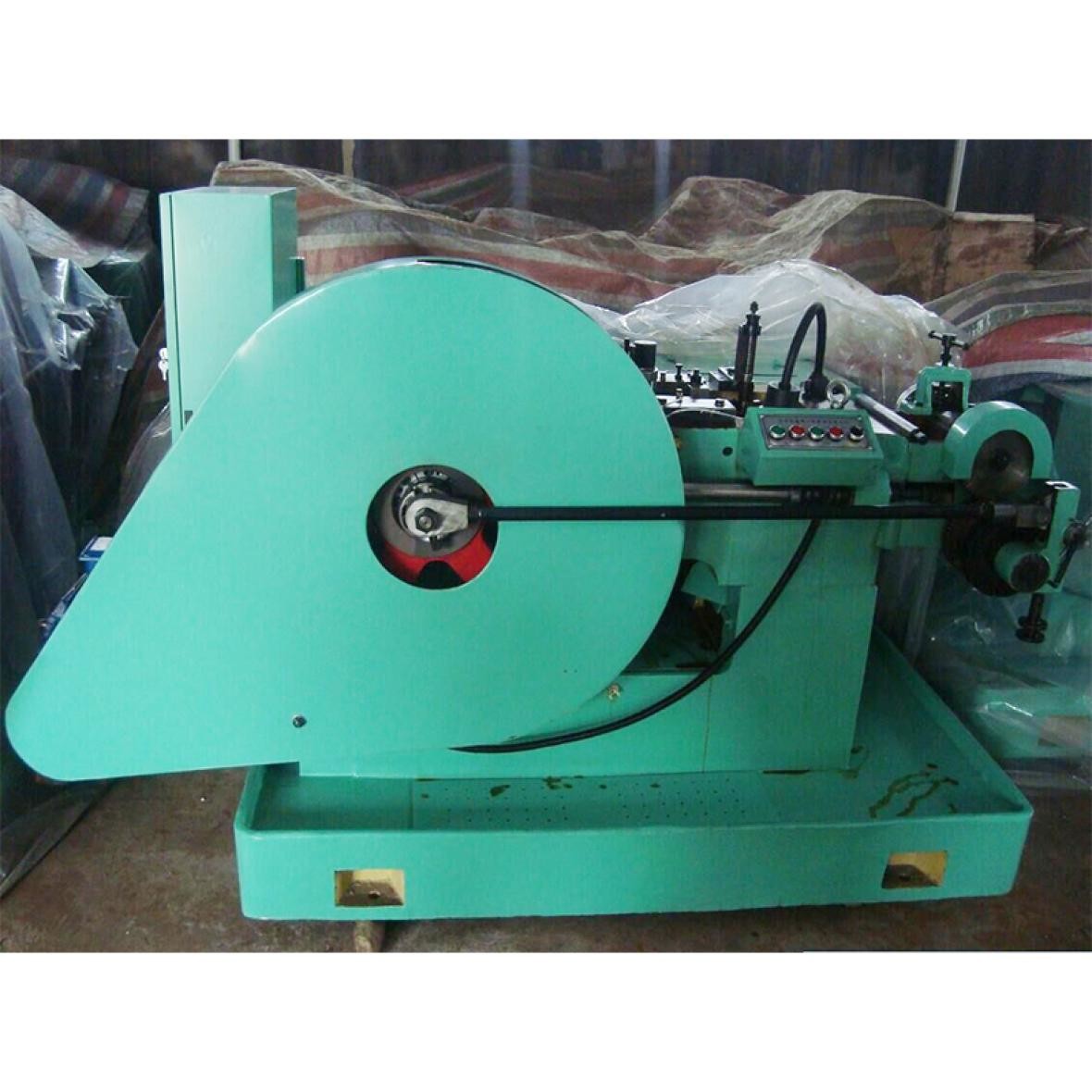

This machine is specially designed for manufacturing ball- blanks. It applies a form of reasonable construction, reliable performance and easy adjustment.
Technical Specifications
Model | Z32-5 | Z32-7.5 | Z32-10 | Z32-13 | Z32-16 |
Max Dia. of Steel-ball(mm) | 4.7 | 6.7 | 9.5 | 12.7 | 15.8 |
Min Dia. of Steel-ball(mm) | 1.58 | 3.17 | 4.7 | 6.3 | 9.5 |
Rated Output (pcs/min.) | 250 | 180~200 | 150 | 130 | 100 |
Motor Power(kw) | 1.1 | 2.2 | 5.5 | 7.5 | 15 |
Weight(kg) | 600 | 1780 | 2500 | 3000 | 8660 |
Overall Dimensions(L.W.H)(mm) | 1300x810x1075 | 1800x1050x1220 | 2190x1300x1350 | 2600x1400x1400 | 4000x2540x2570 |
