Automatic Air Feeder Machine

1 SET
MOQ
to be negotiated
Price
Automatic Air Feeder Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Automatic Air Feeder Machine
Power: Various According To Different Machine Models
Certification: As Per Customer's Request
Key Selling Points: Long Service Life
After-sales Service: Engineers Available To Service Machinery Overseas
Application: Feeding Plastic/Tape/Metal
Use: Wire
Type: Feeder Machine
Voltage: Required
Highlight:

Pneumatic Auto Air Feeder Machine

,

Air Feeder Machine machine 200strokes min

,

Automatic Air Feeder Machine
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: AF-1C~14C AF-5CS
Payment & Shipping Terms
Packaging Details: Carton Box, Wooden Cases/Pallets, Plywood Cases/Pallets.
Delivery Time: 1 Set/7 Days; ＞1 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 Sets Per Month
Product Description

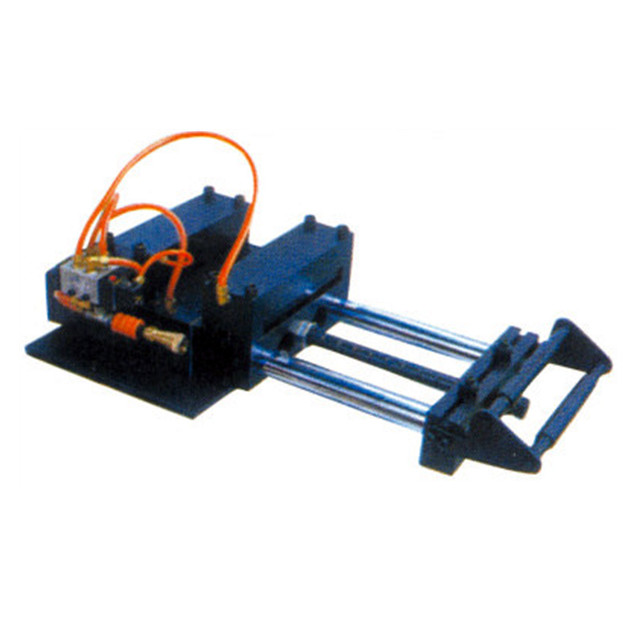

Automatic Air Feeder Machine



Briefs:

1. Type of feeder: Standard type, E-type, Standard & R type; E & R type 2. Applicable feeding material: metal strip, tape, plastic strip 3. A buffer is equipped on the models over AF-3C.

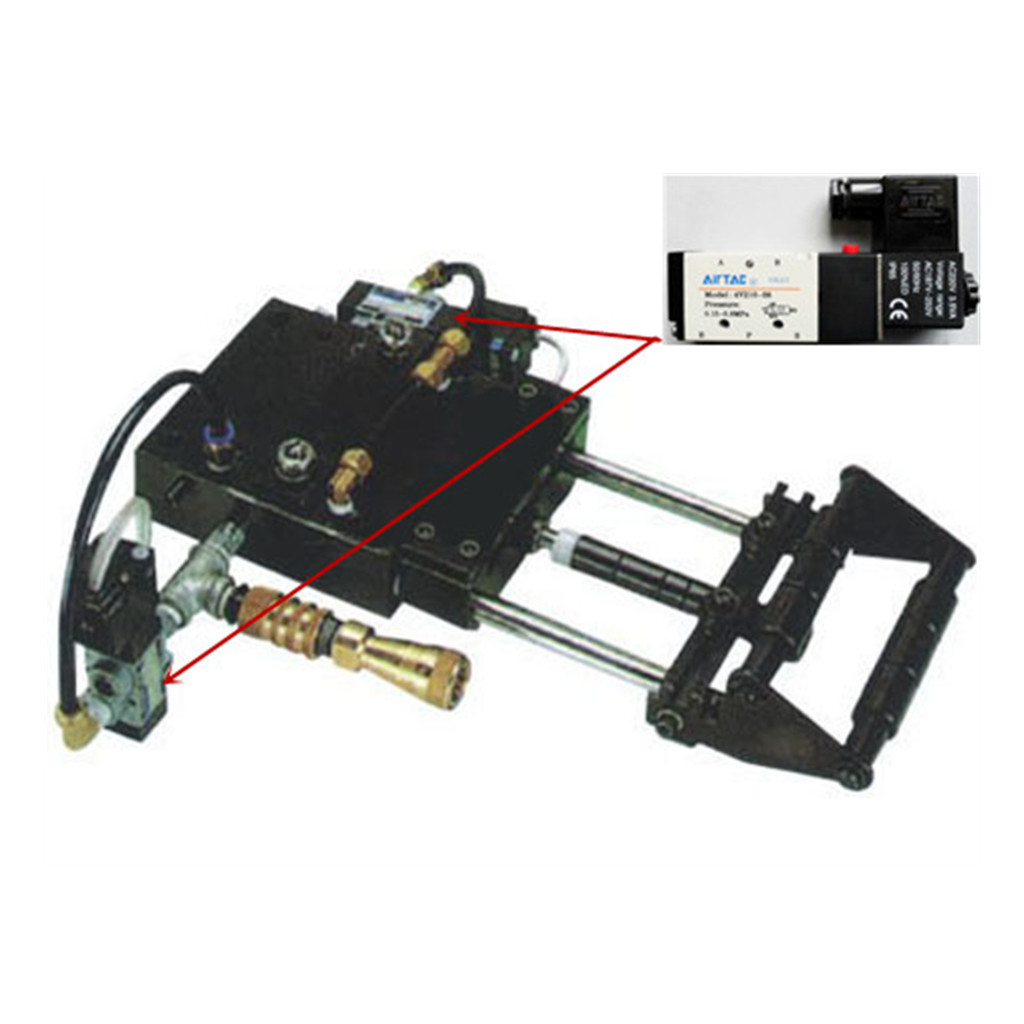

Air feeders, as a kind of automatic feeding device, are driven with compressed air. They are widely applied for press, press machine or punch, and its for all industrial production. Except the Standard type, other variations are all available upon request. E-type air feeder (instead of pilot lever, fixed with a pilot electromagnetic valve), Standard & R type air feeder (Based on standard type, added with an electromagnetic valve to make the fixed clamp carry a releasing function ) and E & R type (Both electromagnetic pilot valve and releasing valves are fixed ) can be supplied according to the real applications to different press machines. If a high precision feeding is needed, an electromagnetic valve for the fixed clamp’s releasing function is required; if a shorter stroke or long distance feed is happened to the press process, an electromagnetic pilot valve must be fixed.





Model
AF-1C
AF-2C
AF-3C
AF-4C
AF-5C
AF-6C
AF-7C
Max. Width(mm)
50
65
80
100
150
200
250
Max. Length(mm)
50
80
80
130
150
200
250
Max. Thickness(mm)
0.5
0.8
1.2
1.5
2
2
2.5
Air Press (kg/cm2)
4.5
4.5
4.5
4.5
4.5
4.5
4.5
Max. Speed (strokes/min)
200
160
150
93
80
60
48
Weight(kg)
8.8
9.6
12.8
19.6
38.4
52.4
80
Model
AF-8C
AF-10C
AF12C
AF-14C
AF-5CS
Max. Width(mm)
300
400
500
600
150
Max. Length(mm)
300
400
500
600
150
Max. Thickness(mm)
2.5
3
3
3.5
6
Air Press (kg/cm2)
4.5
4.5
4.5
4.5
4.5
Max. Speed (strokes/min)
40
30
23
20
60
Weight(kg)
95
178
240
200
90
