High Speed Pneumatic Feeder

1 SET
MOQ
to be negotiated
Price
High Speed Pneumatic Feeder
Features Gallery Product Description Request A Quote
Features
Specifications
Name: High Speed Pneumatic Feeder
Voltage: Required
Dimension(L*W*H): Various To Different Machine Models
Weight: 8.8-200
Type: Feeder Machine
Power: Various To Different Machine Models
Use: Wire
Warranty: One Year After The Date Of Shipment
Certification: As Per Customer's Request
High Light:

Pneumatic air feeder equipment

,

air feeder equipment 200times min

,

Automatic Sheet Pneumatic air feeder

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: AF-1C~14C
Payment & Shipping Terms
Packaging Details: Carton Box, Wooden Cases/Pallets, Plywood Cases/Pallets.
Delivery Time: Shipped in 15 Days After Payment
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 Sets Per Month
Product Description

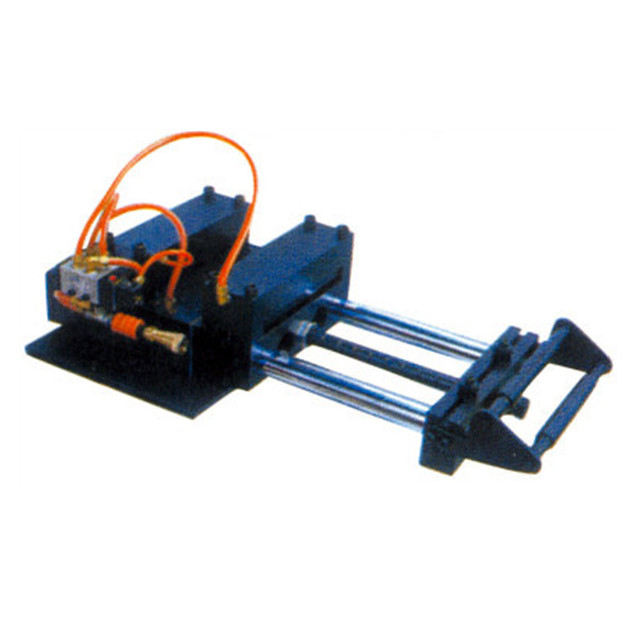

High Speed Pneumatic Feeder

1. Type of feeder: Standard type, E-type, Standard & R type; E & R type
2. Applicable feeding material: metal strip, tape, plastic strip
3. A buffer is equipped on the models over AF-3C.

Air feeders, as a kind of automatic feeding device, are driven with compressed air. They are widely applied for press, press machine or punch, and it‘s for all industrial production.

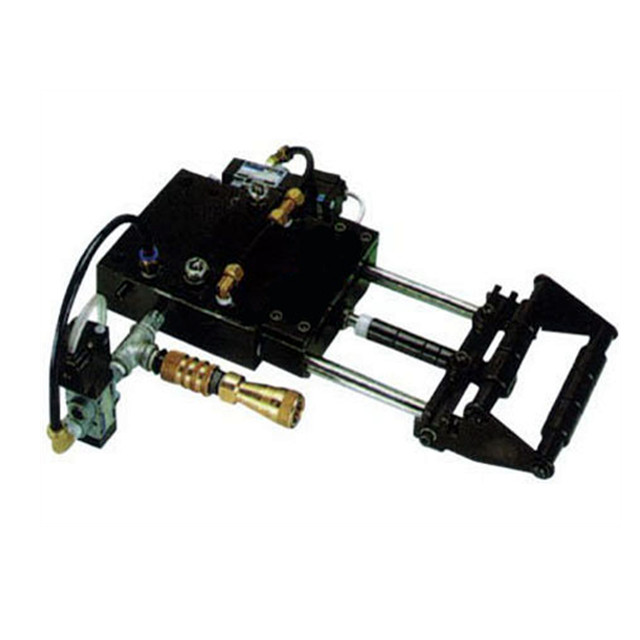

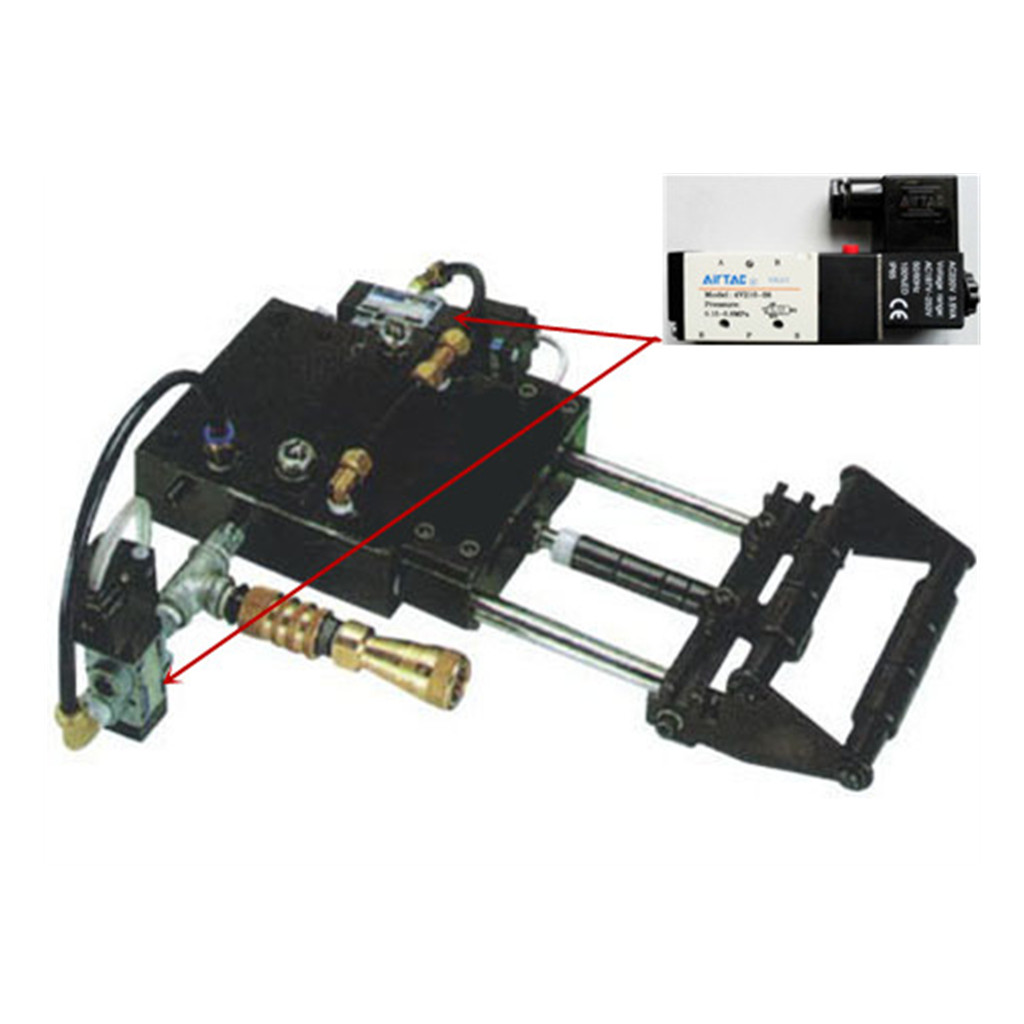

Except the Standard type, other variations are all available upon request. E-type air feeder (instead of pilot lever, fixed with a pilot electromagnetic valve), Standard & R type air feeder (Based on standard type, added with an electromagnetic valve to make the fixed clamp carry a releasing function ) and E & R type (Both electromagnetic pilot valve and releasing valves are fixed ) can be supplied according to the real applications to different press machines.

If a high precision feeding is needed, an electromagnetic valve for the fixed clamp’s releasing function is required; if a shorter stroke or long distance feed is happened to the press process, an electromagnetic pilot valve must be fixed.



Technical Specifications



Model AF-1C AF-2C AF-3C AF-4C AF-5C AF-6C AF-7C AF-8C AF-10C AF-12C AF-14C
Width Max.(mm) 50 65 80 100 150 200 250 300 400 500 600
Length Max.(mm) 50 80 80 130 150 200 250 300 400 500 600
Thickness(mm) 0.5 0.8 1.2 1.5 2 2 2.5 2.5 3 3 3.5
Air press(kg/cm2) 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5
Speed Max.(times/min) 200 160 150 93 80 60 48 40 30 23 20
Weight(kg) 8.8 9.6 12.8 19.6 38.4 52.4 80 95 178 240

200
