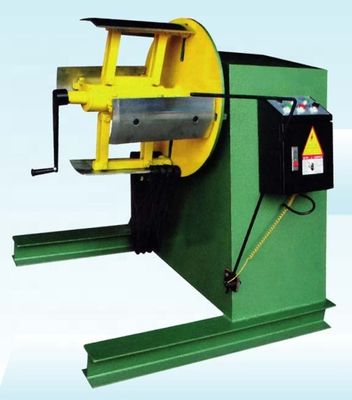

Automatic Steel Sheet Decoiling Machine/decoiler of Heavy Capacity, Heavy Duty Type
Features
1. Suitable for coiling and decoiling various types of materials, including metal and non-metal sheet coil.
2. Motor drive applicable, coordinating with feeding device.
3. Break gear's tightness adjustable; enhanced principal axis is applied to make the material rotate more smoothly and to increase load capacity.
4. Essential device for automatic production, saving manpower, reducing cost.
5. Apply Japanese electromagnetic contactor and electronic components, prolonging service life and reducing failure.
| Model | Unit | MT-200 | MT-300 | MT-400 |
| Material width | mm | 200 | 300 | 400 |
| Material thickness | mm | 2 | 2 | 2 |
| Material inner dia. | mm | 450-530 | 450-530 | 450-530 |
| Material outer dia. | mm | 1200 | 1200 | 1200 |
| Material weight | kgs | 500 | 1000 | 1500 |
| Speed | M/min | 15 | 15 | 15 |
| Roll material dilate | Manual | Manual | Manual | |
| Motor | HP | 0.5 | 1 | 1 |
| Machine weight | kgs | 275 | 350 | 550 |
| Overall dimensions | m | 1.0*0.8*1.1 | 1.1*1.0*1.2 | 1.2*1.1*1.3 |
Special Device/service(Optional)
1. Change of feeding speed
2. Change of inner diameter
3. Stock weight can be altered upon request
4. Additional thick stock plate clamping device
5. Oil hydraulic expansion
6. Dual variable speed control or dual frequency converter control for motor
