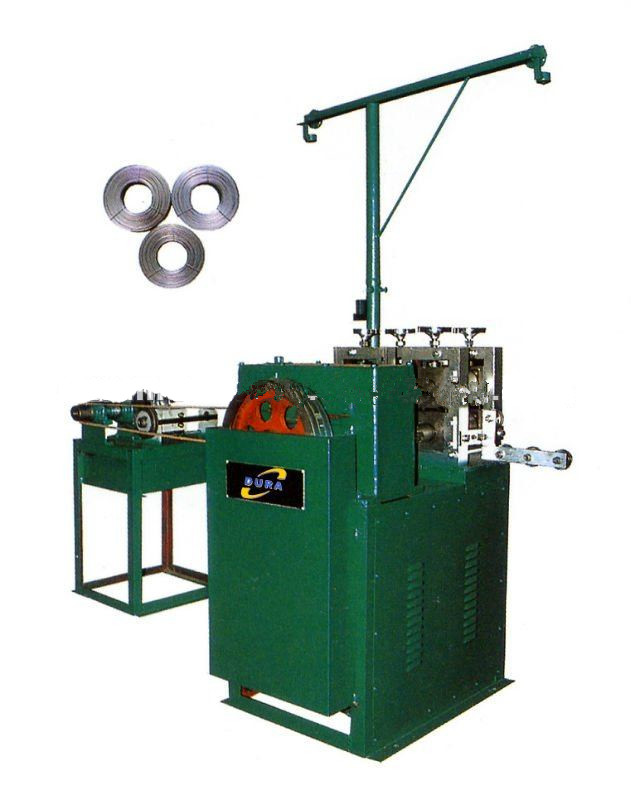

Stitching Wire Flattening Machines, WFM-130S
This machine is divided into two mechanisms -wire flattening & flat wire coiling. The round galvanized or copper-plated wires are rolled into flat wires which are applied to use in stitching works on corrugated cardboard boxes or cartons. It has been regarded as an ideal machine for packaging industry.
Technical Specifications
| Model | Unit | WFM-130S |
| Roller diameter | mm | 128 |
| Material of the 1st pair of rollers |
Alloy steel Cr12MoV HRC 60 - 63 |
|
| Material of the 2nd pair of rollers |
Tungsten Carbide YG11C (HRA86.5 ≈ HRC 69 - 70) |
|
| No. of rollers | pairs | 2 (4pcs) |
| Rotating speed | rpm |
132 ( 1st pair ) 158 ( 2nd pair ) |
| Outlet speed | m/min. | 63.5 |
| Motor Power | kw | 4 |
| Finished rolls weight | kg/roll |
2.5 (a detachable spool applied) |
| Net weight (Approx.) | kg | 600 |
