High Speed Nail Thread Rolling Machine for Nail Threading

1Set
MOQ
to be negotiated
Price
High Speed Nail Thread Rolling Machine for Nail Threading
Features Gallery Product Description Request A Quote
Features
Specifications
Name: High Speed Nail Thread Rolling Machine For Nail Threading
Power: 4~6KW
Weight: 1300kgs
Production Capacity: 600-1600pcs/min
Voltage: Customer' Requirment
Dimension(L*W*H): 1300 X 1300 X 1500mm
Certification: As Per Customer's Request
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Application: Nail Production
Warranty: 1 Year
Key Selling Points: Competitive Price
High Light:

bolt thread rolling machine

,

washer thread rolling machine

,

Coil nail thread roller

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: NTM-A10-1/2
Payment & Shipping Terms
Packaging Details: Wooden Cases/Pallets, Plywood Cases/Pallets, Steel Pallets, etc.
Delivery Time: 1-5 Sets/45 Days; >5 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 200 Sets Per Month
Product Description

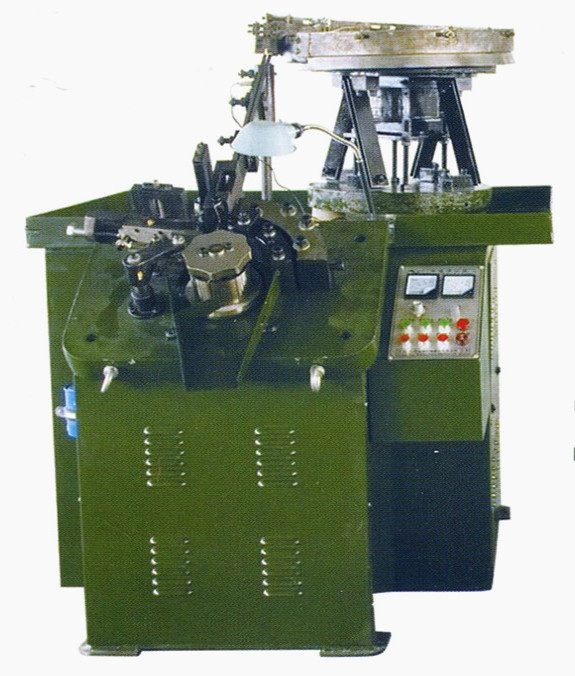

High Speed Nail Thread Rolling Machine for Nail Threading



No. Model GS-B9-1/2
1 Rolled range of nail's shank diameter φ1.8 - 4.8mm
2 Nail's thread length range 16 130mm
3 Capacity 500 - 1000pcs/min
4

Model: GS-B9-1

Nail shank dia.: φ1.8 - 3.4mm

Threading length: 16 - 70mm

Nail length: 16 - 100mm

Main motor power

- 5.5KW (nail shank dia. <φ3.4mm

- 5.5KW (nail threaded length ≤70mm)

Speed-adjustable: by 7.5KW electromagnetic
adjustable speed motor.
5

Model: GS-B9-2

Nail shank dia.: φ3.1 – 4.8mm

Threading length: 25 - 100mm

Nail length: 25 - 130mm

Main motor power
- 7.5KW ( 4.8mm ≥nail shank dia. ≥ φ3.1 mm )
- 7.5KW (nail threaded length:70-100 mm )
Speed adjustment: by 7.5KW electromagnetic
adjustable speed motor.
6 Loading capacity of vibrating bowl 7.0 kg
7 Net weight Approx. 1200/1300kgs
8 Overall dimensions ( L x W x H ) 1400 x 15300 x 1600 (mm)

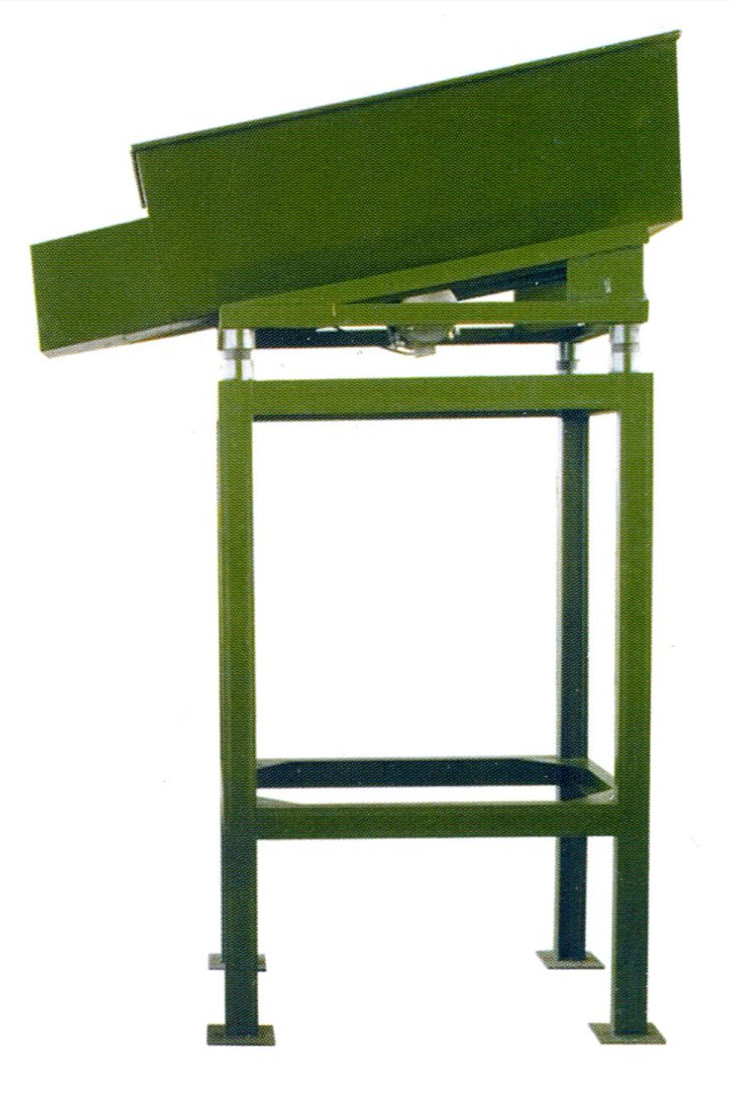

Nail vibrating tank

An optional device, it is used to stock 400 – 500kgs of unthreaded nails, once the vibrating feeder is detected empty or less than the designed quantity in the hopper by a proximity switch (sensor), it begins to trigger the nail feed to the vibrating hopper from the vibrating tank.
