Features

Specifications

Stroke: 4 Stroke

Cylinder: 2

Cold Style: Water-Cooled

Start: Other

Dimension(l*w*h): 1140 X 620 X 1070mm

Weight: 420

Warranty: 1 Year

Displacement: 2251cc

Emission Standard: 2251cc

Rated Power/speed: 1500rpm

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Engine

Key Selling Points: Easy To Operate

Power(w): 24HP

Starting System: Manual Starting

Highlight:

2105A model diesel engine water-cooled

diesel engine with water-cooled system

2105A-3A diesel engine water-cooled

Basic Infomation

Place of Origin: Jiangsu, China

Brand Name: DURA

Certification: as per customer's request

Payment & Shipping Terms

Gallery

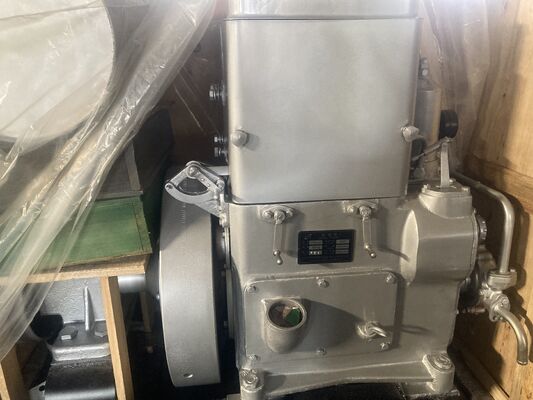

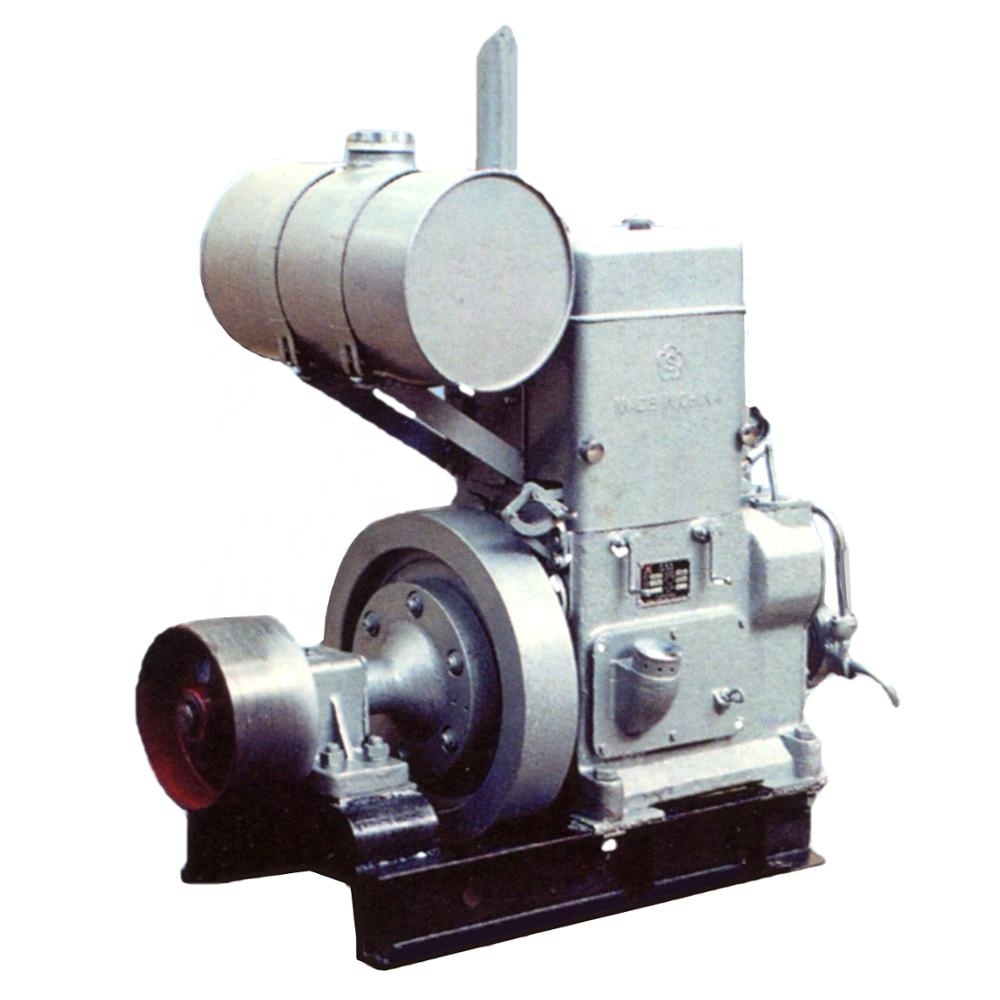

2105A Model Diesel Engine Water-Cooled Style 2105A-3A 2105A-6 2105A-33A

Product Description

Agricultural diesel engine units model 2105A-6, 2105A-3A and 2105A-33A are three variants of 2105A diesel engine. They are applied as drive power for irrigation and drainage, processing machines of products from farm and sideline, etc.

Features

* Advanced technique after long-time and rich experiences of production * Compact, rigid and reliable, easy to operate and maintain * With separate bearing assembly and drive pulley * With sliding-type mounting frame.

Model	2105A-3A	2105A-6	2105A-33A
Type	Vertical,4-Stroke,Swirl combustion chamber
Cylinder number	2	2	2
Bore(mm)	105	105	105
Stroke(mm)	130	130	130
Compression Ratio	20:1	20:1	20:1
Rated Rotation(r/min.)	1500	1500	1500
Rated Output(kw)	17.65	17.65	17.65
Over-load Output(kw)	19.41	19.41	19.41
Specific Fuel Consumption (g/kw.h)	251.6	251.6	251.6
Specific Oil Consumption (g/kw.h)	2.04	2.04	2.04
Cooling System	Open-type, water-cooling
Method of Starting	Manual starting
Net Weight(kg)	430	380	430
Dimensions(L x W x H)(mm)	1140 x 620 x 1070	1030 x 620 x 1070	1140 x 620 x 1070
