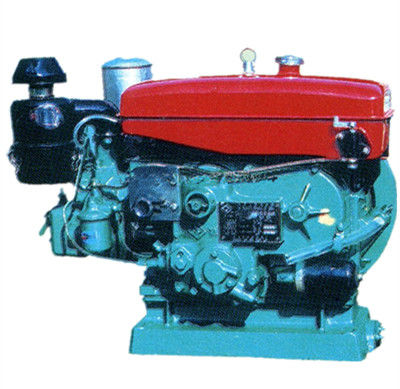

Model SD1110 Diesel Engine-single Cylinder, Four Stroke, Water Cooled Type
| Model | SD1110 | |
| Type | Horizontal type, single cylinder, four-stroke, water-cooling | |
| Cylinder diameter×stroke(mm) | 110×115 | |
| Displacement | 1.093 | |
| Model of combustion chamber | Direct-injection | |
| Compressure chamber | 16.5 | |
| Power | 1 hour power | 14.7/2200 |
| 12 hour power | 13.2/2200 | |
| Specific fuel consumption | ≤250.2 | |
| Specific oil consumption | ≤0.036 | |
| Max. torque | ≥64.1 | |
| Injecting pressure | 18.13 | |
| Lubricating type | Force and splash | |
| Cooling method | Water-cooling | |
| Starting method | Cranking or electric starting | |
| Net weight(kg) | 180 | |
|
Overall dimensions (L×W×H)(mm) |
814×545×627 | |
