Diesel Engine, 2105A Series-Model 2105A-3A; 2105A-6

1 SET

MOQ

$450.00-$1,200.00/Set

Price

Diesel Engine, 2105A Series-Model 2105A-3A; 2105A-6

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Diesel Engine, 2105A Series-Model 2105A-3A; 2105A-6

Cylinder: Multi-cylinder

Start: Manual Starting

Brand Name: XinFeng

Weight: 430KGS

Core Components: Engine

Power: 18.6 KW

Showroom Location: Pakistan

Stroke: 4 Stroke

Cold Style: Water-cooled

Dimension(L*W*H): 1140 X 620 X 1070

Warranty: One Year After The Date Of Shipment

Rated Power/Speed: 1500rpm

Highlight:

four cylinder diesel engine

,

4 Stroke Diesel Engine Two Cylinder 2105A

,

4 Stroke Diesel Engine Two Cylinder 2105A-6

Basic Infomation

Place of Origin: Jiangsu, China

Brand Name: DURA

Certification: CE

Model Number: 2105A-3A; 2105A-6

Payment & Shipping Terms

Packaging Details: Plywood Case

Delivery Time: 1-36 Sets/60 Days; ＞36 To Be Negotiated

Payment Terms: L/C, D/P, T/T

Supply Ability: 100 Sets Per Month

Gallery

Diesel Engine, 2105A Series-Model 2105A-3A; 2105A-6

Product Description

Diesel Engine, 2105A Series-Model 2105A-3A; 2105A-6

Usages

Diesel engine 2105A is an improved model of 2105 diesel engine. Its 12 hour rating is increased to 24ps or 26ps from original 20ps. Agricultural diesel engine units model 2105A-3A is a variant of 2105A diesel engine. It is applied as drive power for irrigation and drainage, processing machines of products from farm and sideline, etc.

Features

* Advanced technique after experiences of production through a long history

* Compact, rigid and reliable, easy to operate and maintain

* Steady performance, high power reserve

* With separate bearing assembly and drive pulley

* With sliding-type mounting frame.


			Series
			Unit
			2105A

			Type
			Vertical, wate-cooled, 4 stroke, swirl combustion chamber

			No. of cylinder

			2

			Bore
			mm
			105

			Stroke
			mm
			130

			Speed
			pcs/min.
			1500

			Power
			HP
			24

			Net weight
			kg
			340

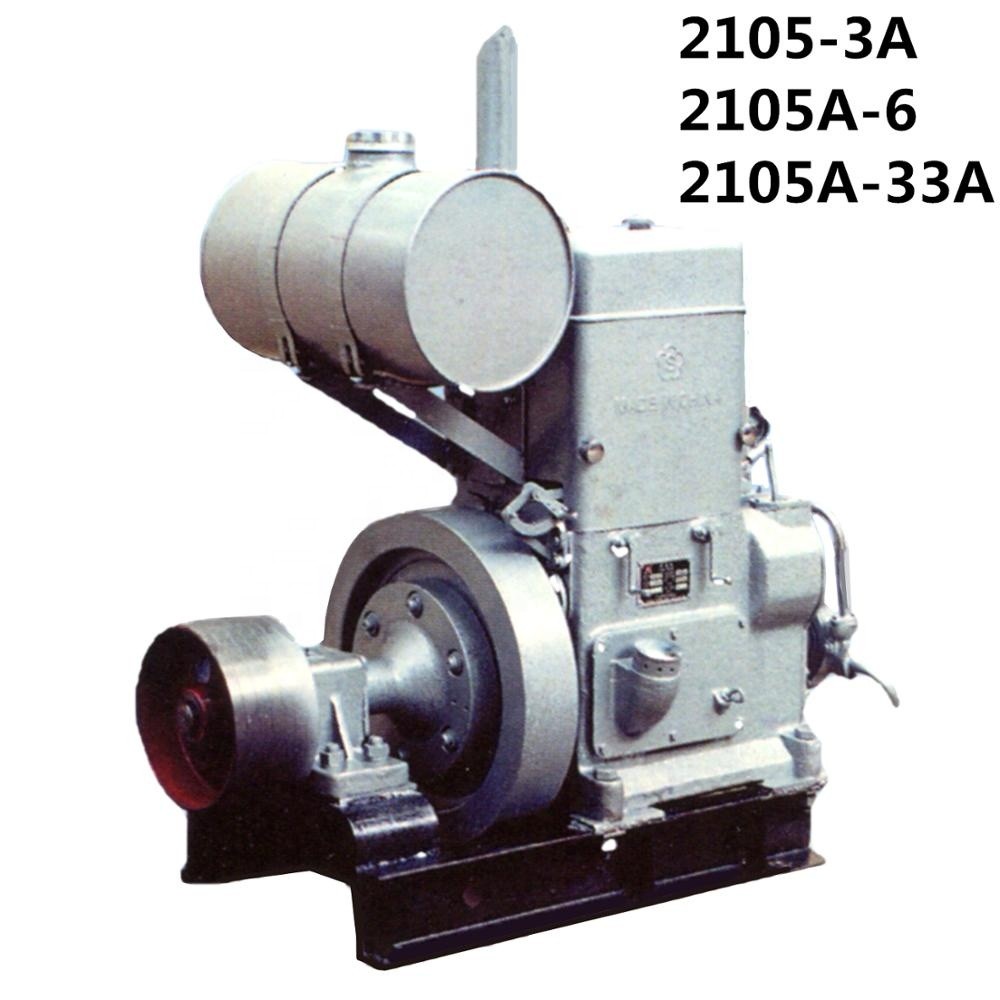

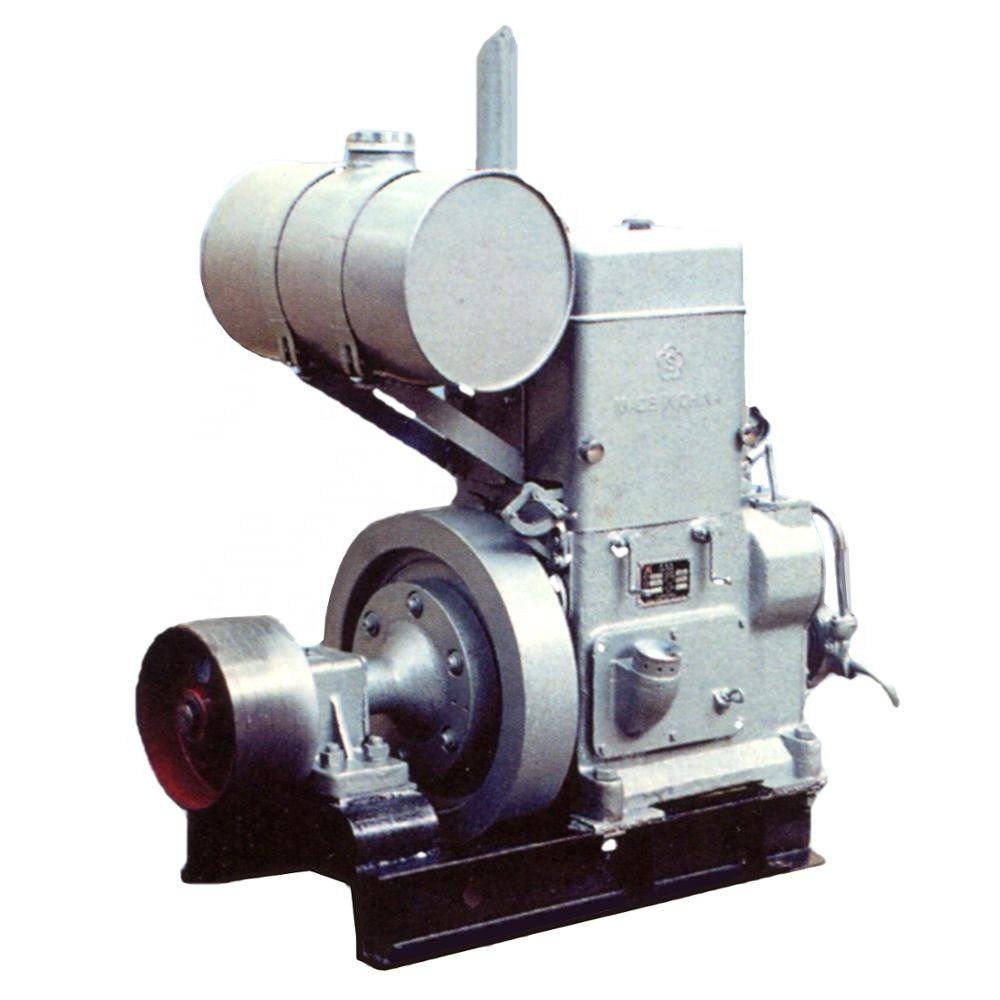

			2105A-3A
			Steel frame pedestal, with a separate support bearing house, flat pulley
size:Ø235 ×130mm

			2105A-33A
			Steel frame pedestal, with a separate support bearing house, flat pulley
size:Ø235 ×130mm

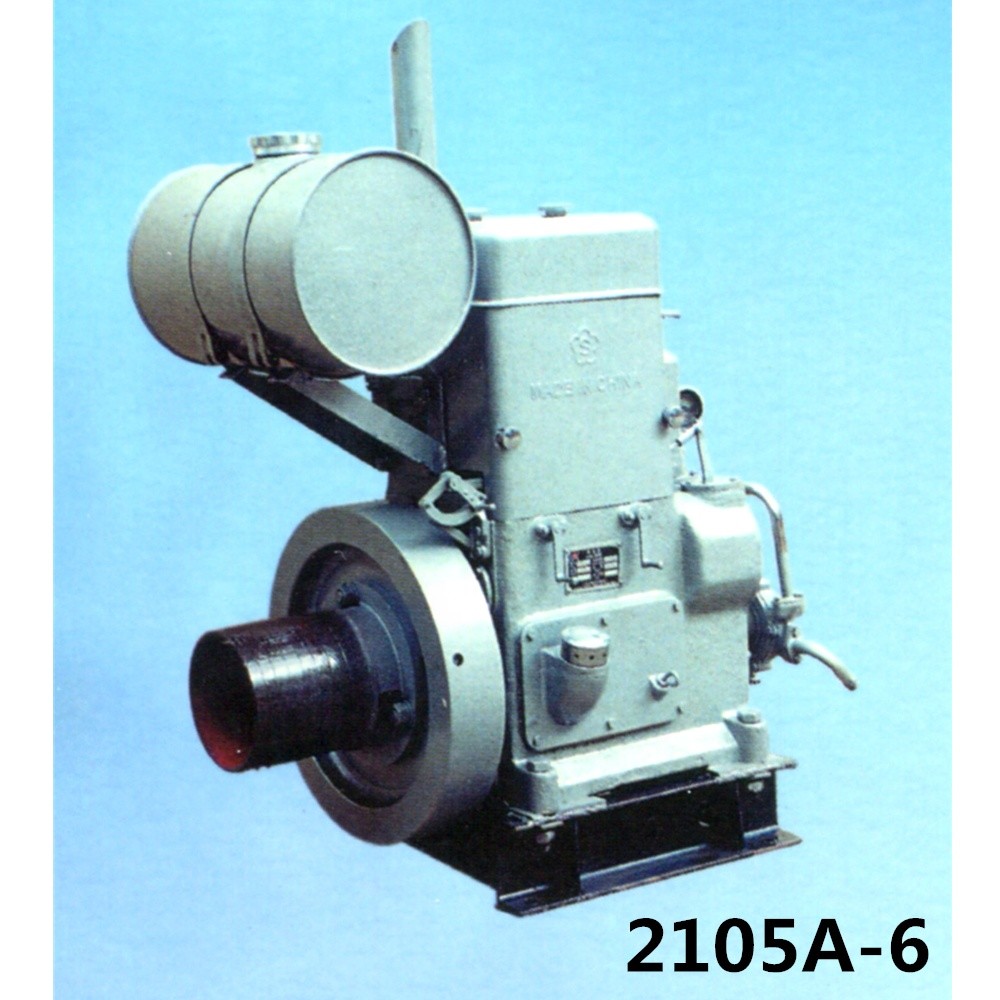

			2105A-6
			Steel frame pedestal, directly connecting with flywheel,falt pulley
size:Ø190×235mm
