Cold Heading Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Cold Heading Machine
Condition: New
Warranty: 1 Year
Power: 1.1-7.5kw
Net Weight: 620-7200kgs
Key Selling Points: Competitive Price
Machine Type: Cutting Machine
Showroom Location: Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas
Applicable Industries: Manufacturing Plant
High Light:

M3 fasteners Cold Heading Machine screw cold heading machine 7.5kw

,

Screw Cold Heading Machine 7.5kw

,

cold heading equipments screw cold heading machine 7.5kw

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: QK12 Series
Payment & Shipping Terms
Packaging Details: Plywood Cases
Delivery Time: 1-5 Sets/35 Days; >5 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Year
Product Description

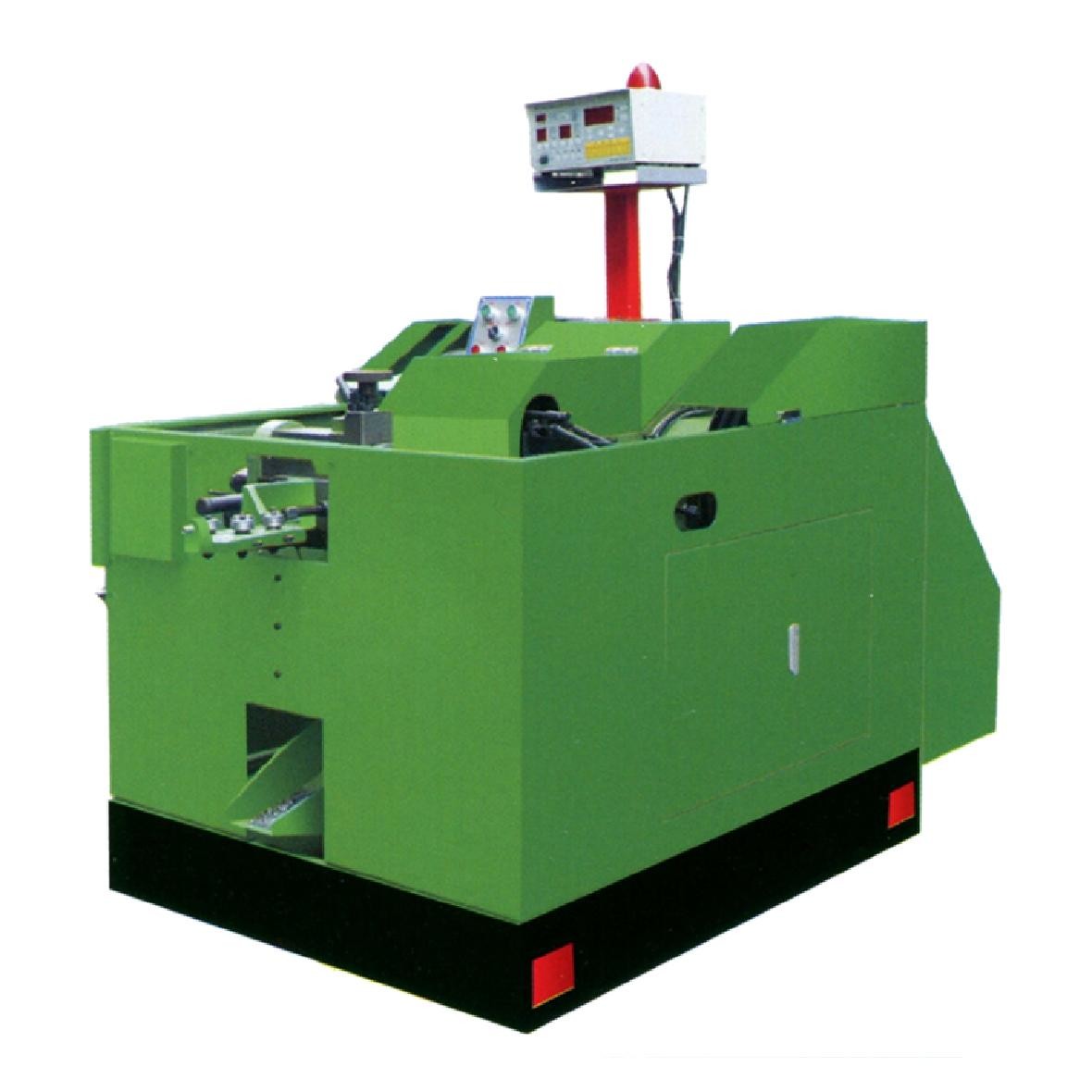

Cold Heading Machine



Introduction

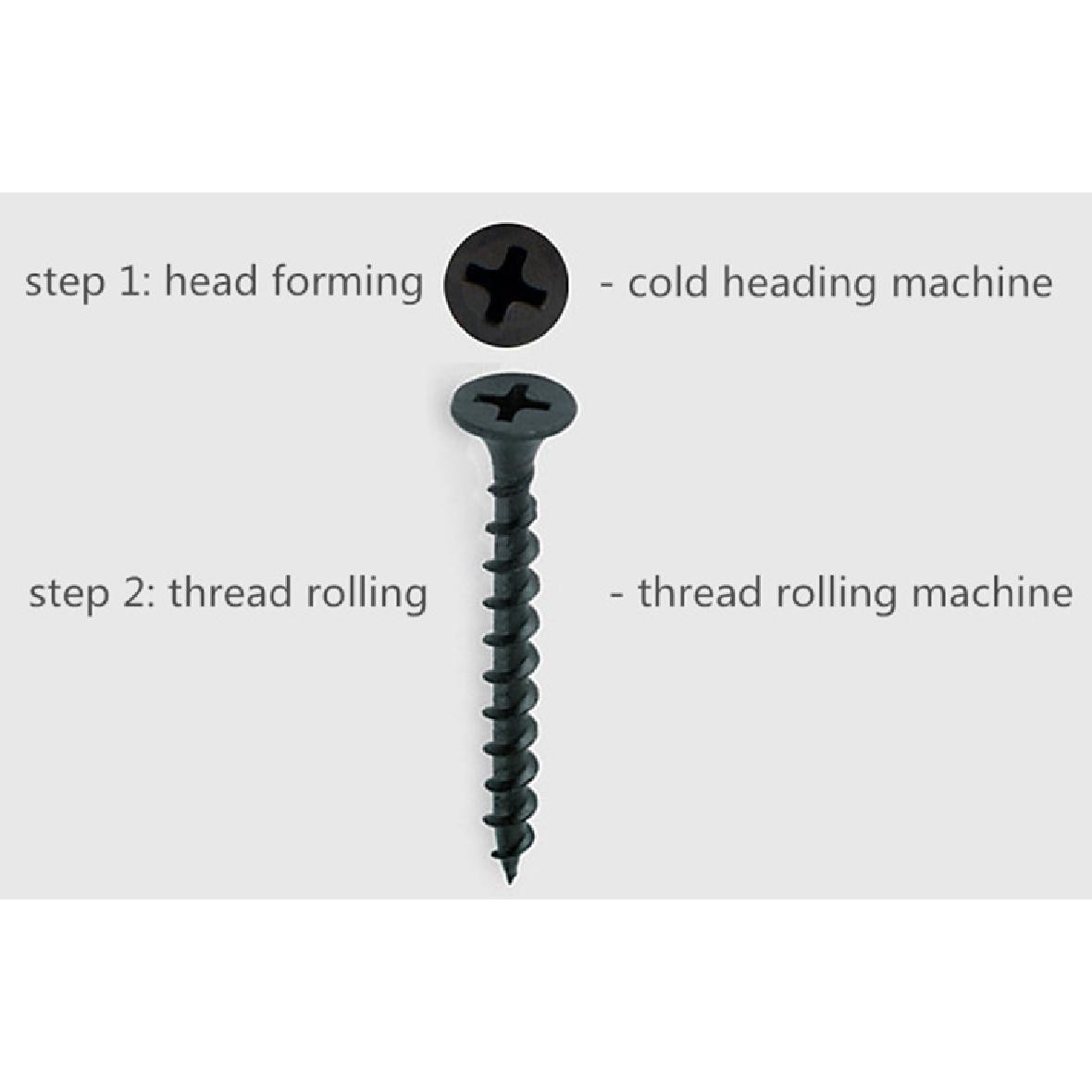

The cold heading machines we provide now include 1-die 2-blow, 2-die 3-blow, 2-die 4-blow, 3-die 3-blow to make screws such as wooden screws, self-tapping screws, chipboard screws and drywall screws, etc.

And the 1-die 2-blow type screw cold heading machines are the most popular ones for making common screws.

Other various structures from simple type to complicated type -- multistation formed head and stepped shank are available too.



Model

Max.Blank Dia./Length.

(mm)

Capacity (pcs/min) Dia. of main Die (mm) Dia. of 1st & 2nd
Punches (mm)
Dia. of Cut-off Die(mm)

Overall Dimensions

(M)

Main Motor
4/6-pole

(kw)

Net Weight

(kg)

QK12-3H Φ3/25 160-180 Φ20 Φ18 Φ13.5 1.42*0.7*0.8 1.1 620
QK12-4H Φ4/40 160-180 Φ30 Φ25 Φ15 1.68*0.94*1.05 1.5 1380
QK12-5H Φ5/65 140-160 Φ34.5 Φ31 Φ19 2.08*1.06*1.12 3 1800
QK12-6H Φ6/100 80 Φ45 Φ36 Φ25 3.05*1.15*1.27 4(6-P) 2800
QK12-8H Φ8/120 80 Φ48 Φ38 Φ25 3.27*1.2*1.34 5.5(6-P) 3500
QK12-10Q Φ10/150 60 Φ55 Φ38 Φ28 4.2*1.51*1.45 7.5(6-P) 7200
