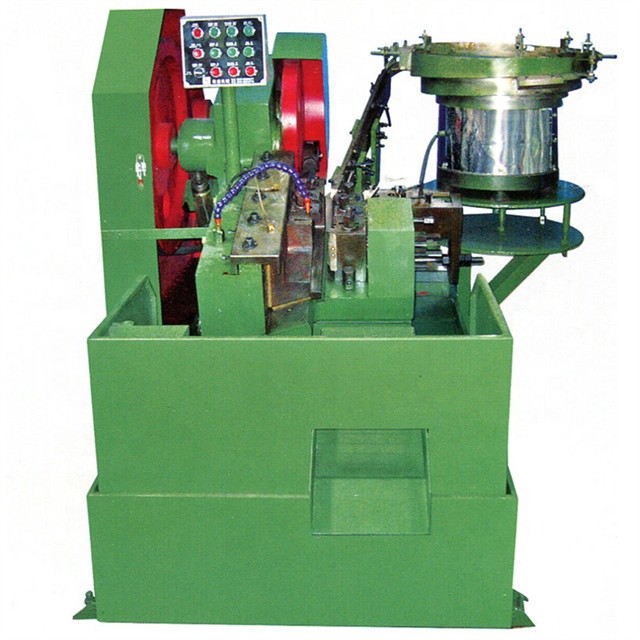

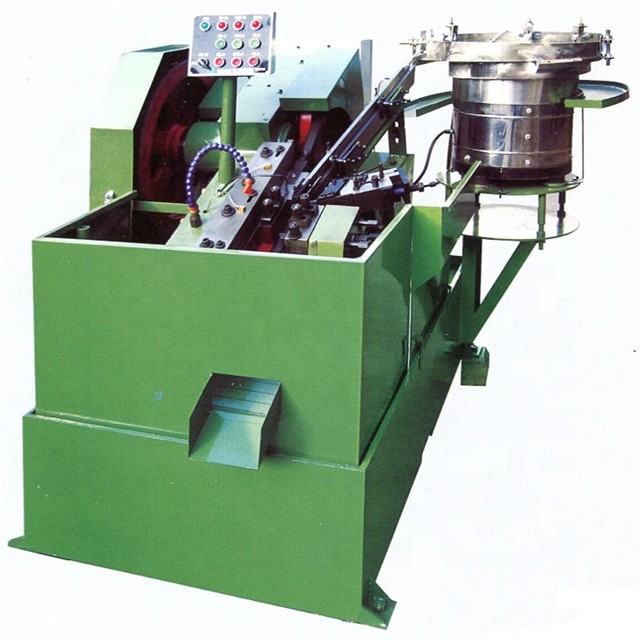

High Speed Automatic Screw Tapping/Thread Rolling Machine
Usage and Features
The machine is designed for precise machining of all types of screw thread conforming to the Metric System, Japanese System, American System, etc. Vibrating feeder is available upon customer's request.
| Model |
Max. Screw Dia./Length to be processed (mm) |
Max. Capacity (pcs/min.) |
Fixed/Moving Threading Die Size (mm) |
Main Motor (kw) |
Net Weight (kg) |
| TM-4S | Φ5/50 | 180-220 | 75/90*25*50 | 2.2 | 800 |
| TM-6R | Φ6/60 | 140-180 | 125*25*80 | 4 | 1350 |
| TM-8Z | Φ8/120 | 80-100 | 130/140*30*120 | 5.5 | 1800 |
| TM-10 | Φ10/155 | 60-100 | 150/170*25(30)*150 | 11 | 3800 |
