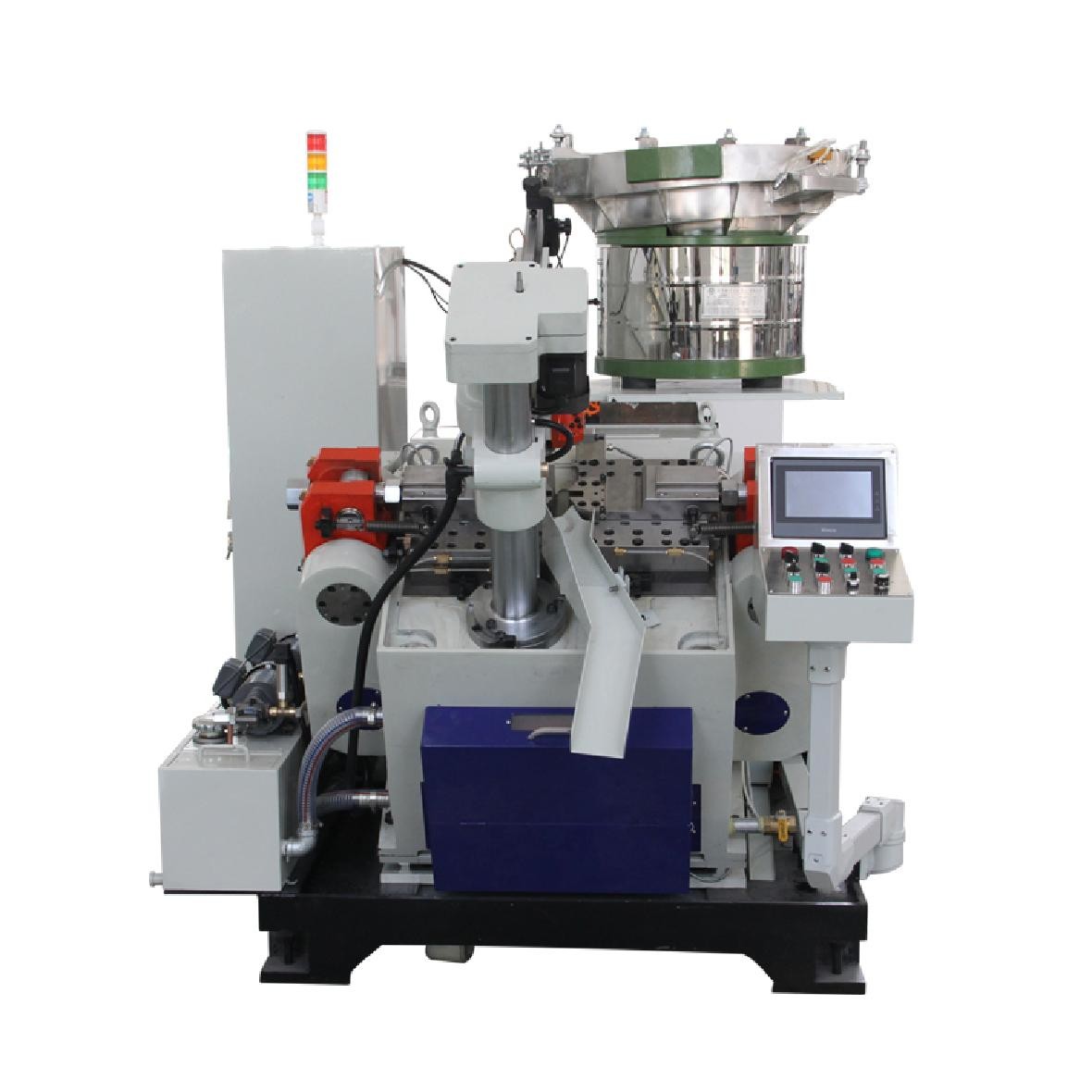

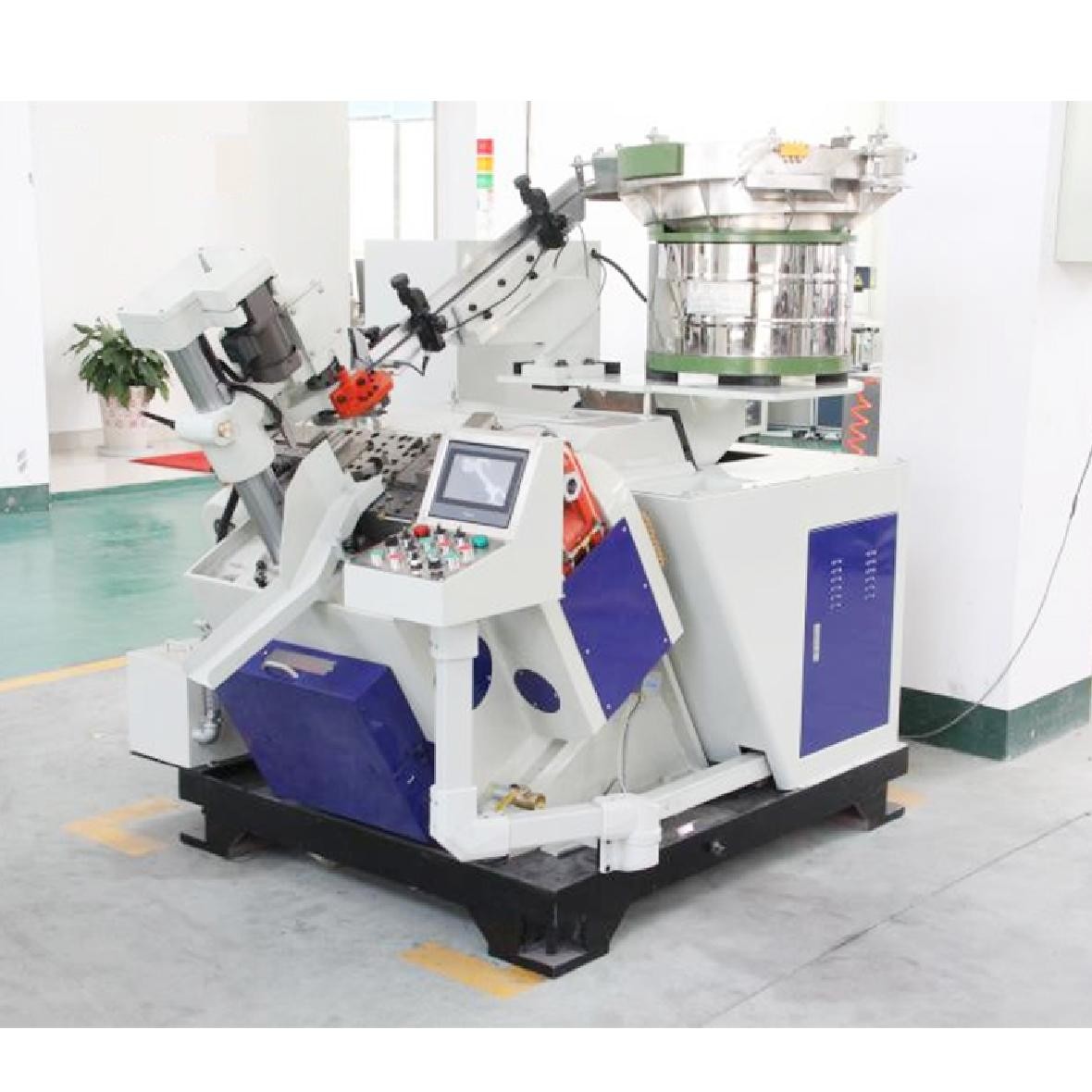

Self Drilling Point Forming Machine
Introduction
1. Designed for producing common type self-driling screws and lengthened self-drilling screws.
2. Curved surface design of the transmission cam prolongs screw pressing time and shortens idle-stroke time, not affecting normal operational cycle during processing, thus achieving excellent motion effects and extending the operating life of the screw die/mold.
Model | Unit | SDS-5(S) | SDS-6(S) | SDS-8(S) |
Blank dia. | mm | 2.8-4.9 | 2.8-8 | 2.8-8 |
Screw length | mm | 10-125 | 10-200 | 50-300 |
Designed capacity | pcs/min | 100-500 | 100-500 | 100-500 |
Main motor | kw | 5.5 | 7.5 | 7.5 |
Inverter | kw | 7.5 | 11 | 11 |
Driving method | MAC Solenoid Valve+Air Actuated Brake | |||
Auto-action & detect controller | PLC & Touch Screen Man-machine Interface Fault Indication | |||
Overall dimensions (L x W x H) | mm | 1900*1400*1600 | 1900*1500*1900 | 1900*1500*2000 |
Weight(Approx.) | kg | 2300 | 2800 | 2900 |
Model | Unit | SDS-5 | SDS-6 | SDS-8 |
Blank Dia./ Length | mm | 2.8-5.2 | 2.8-6.0 | 2.8-7.0 |
Screw length | mm | 9.5-125 | 9.5-150 | 10-200 |
Designed capacity | pcs/min | 120-450 | 120-520 | 45-250 |
Control | PLC/LED | |||
Dimension (L x W x H) | mm | 1900*1400*1600 | 1900*1500*1800 | 1850*1950*1850 |
Weight(Approx.) | kg | 2200 | 2500 | 3500 |
