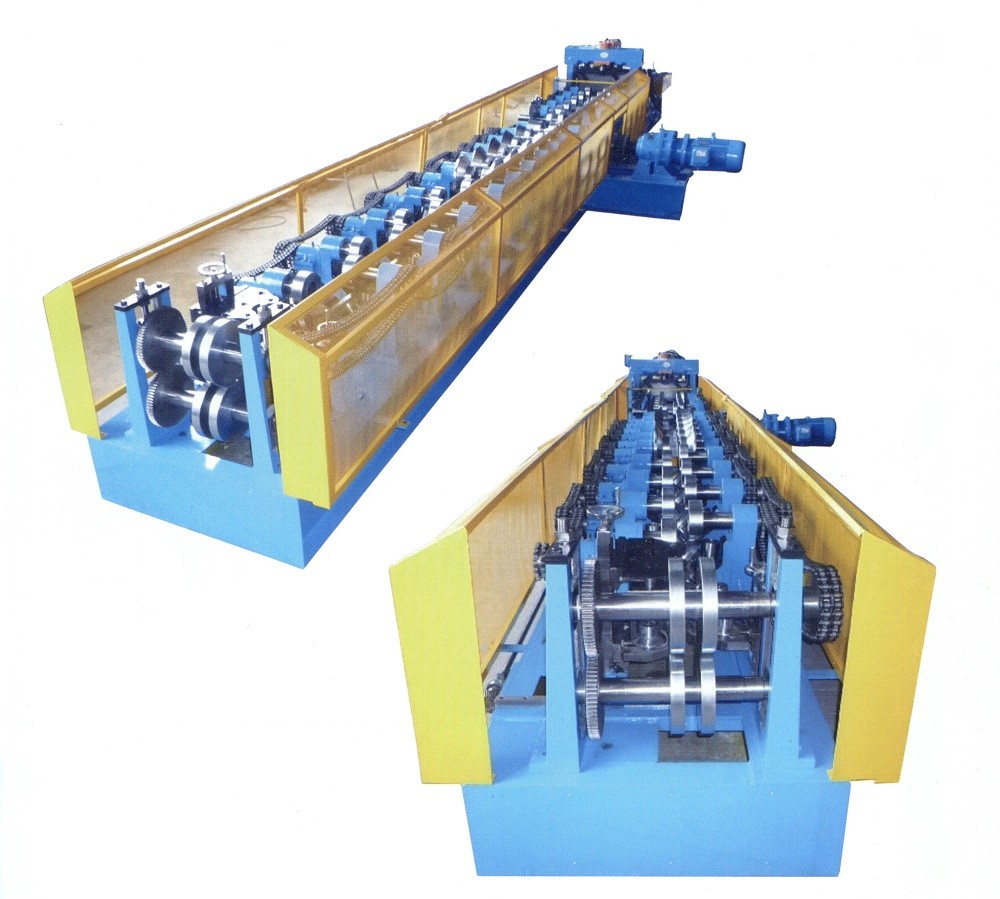

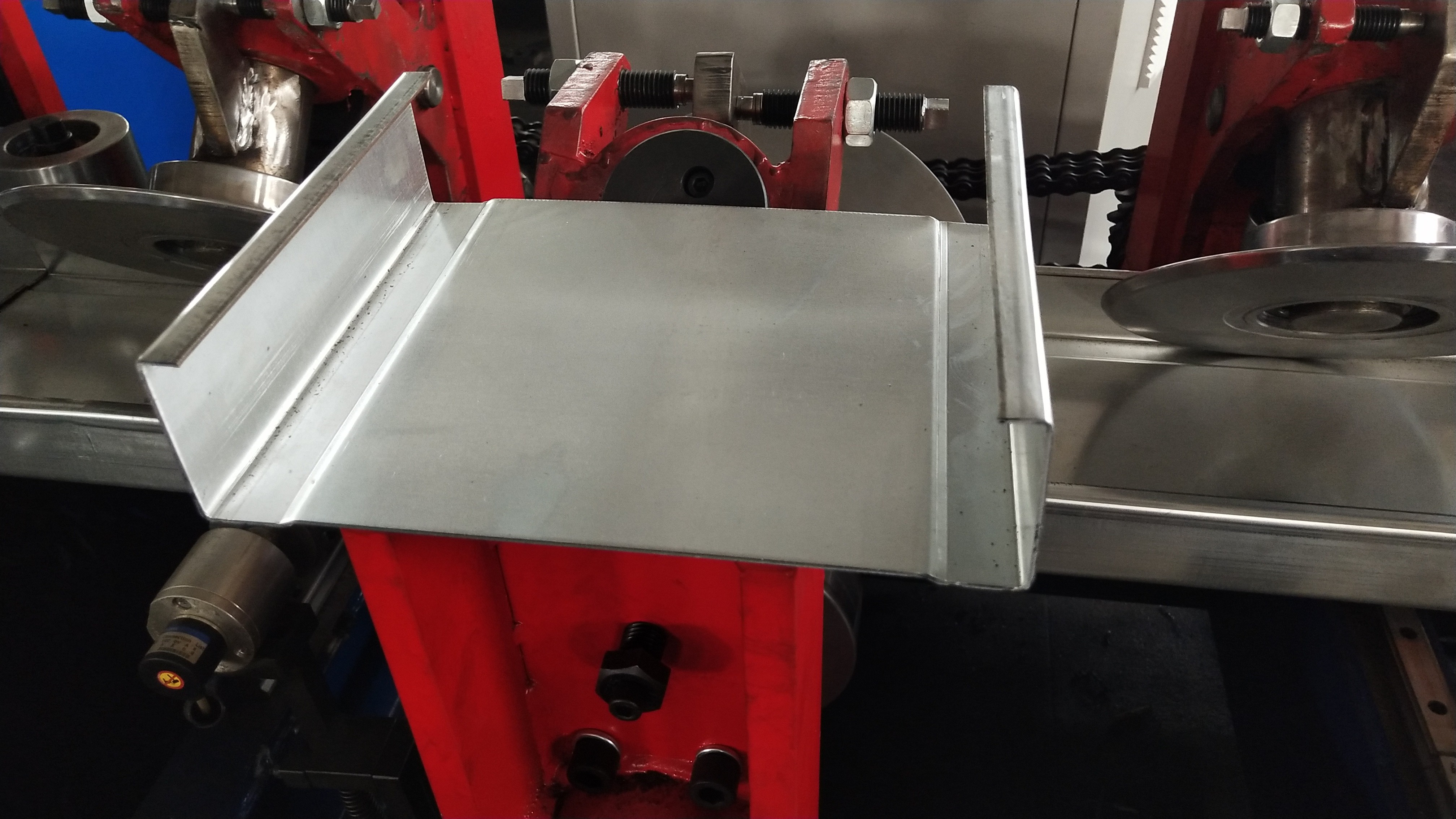

C/Z Purlin Interchangeable Roll Forming Machine
The semi-automatic C/Z purlin machine adopts the same set of equipment and can produce various specifications of C/Z purlin through simple and stepless semi-automatic adjustment. There is no need to change the forming roller when changing the specifications. The production process adopts automatic control method, which can automatically punch, cut and shape according to the input parameters such as the length of the purlin, the longitudinal hole distance, and the quantity.

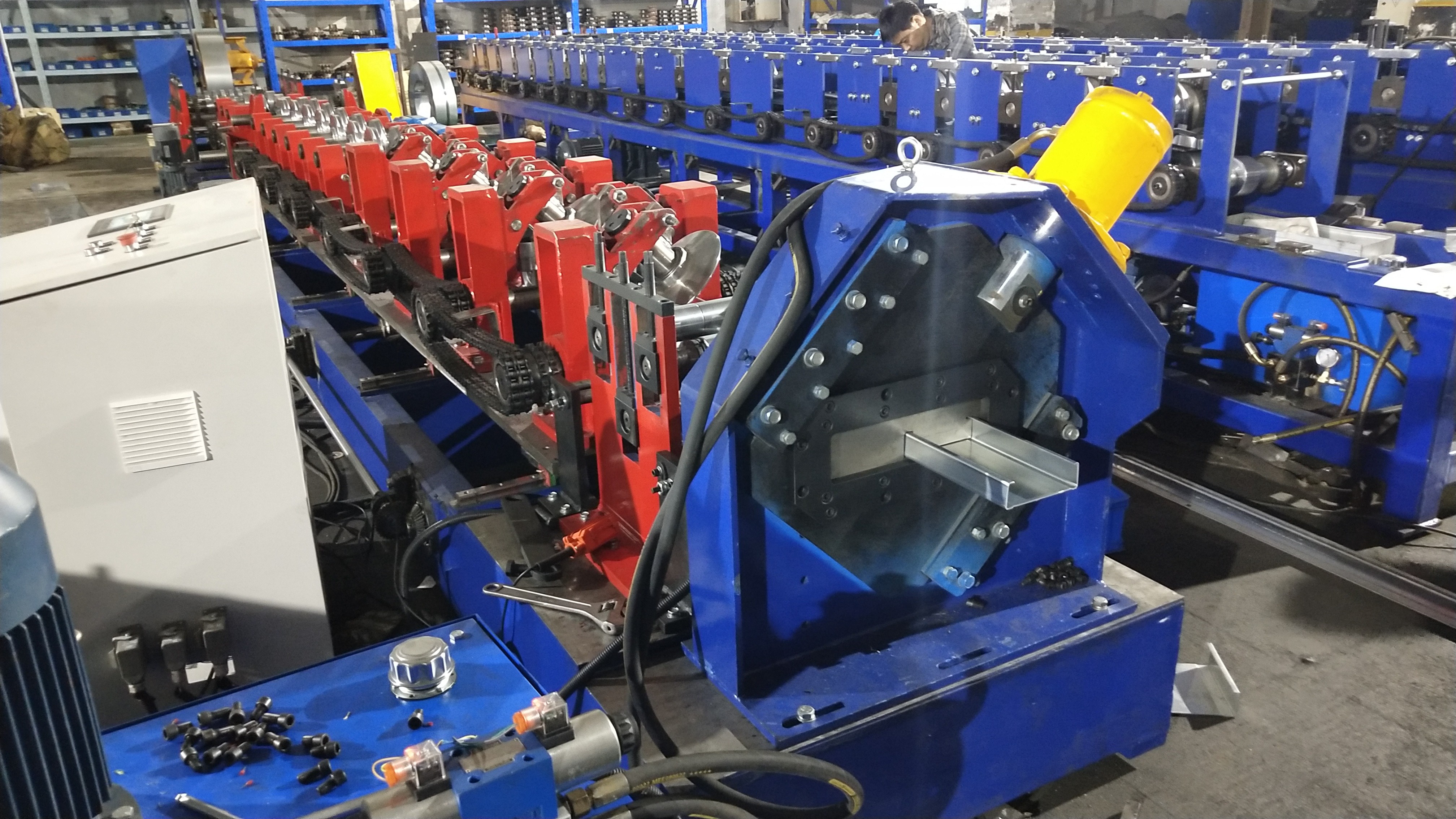

The C/Z type purlin is composed of a guide, a leveling device, a roll forming machine that can be quickly changed, two hydraulic punching devices, a hydraulic stepless adjustment and cutting device, an electronic control system, a hydraulic system, etc.
The main drive of the whole line forming adopts a geared motor and frequency conversion control, and the speed control, fixed length and positioning control are accurate and reliable.
The whole machine has beautiful appearance and high production efficiency (forming speed can reach 25m/min).
Standard Specifications
model | WIDTH(MM) | Height(mm) | Flange(mm) | Thickness(mm) |
C80 | 80 | 40 | 15 | 1.5-3.0 |
C100 | 100 | 50 | 20 | 1.5-3.0 |
C120 | 120 | 50 | 20 | 1.5-3.0 |
C140 | 140 | 50 | 20 | 1.5-3.0 |
C160 | 160 | 60 | 20 | 1.5-3.0 |
C180 | 180 | 60 | 20 | 1.5-3.0 |
C200 | 200 | 60 | 20 | 1.5-3.0 |
C220 | 220 | 70 | 20 | 1.5-3.0 |
C250 | 250 | 70 | 20 | 1.5-3.0 |
C300 | 300 | 80 | 20 | 1.5-3.0 |
model | H | B | B | C | T |
Z120 | 120 | 55 | 50 | 20 | 1.5-3.0 |
Z150 | 150 | 67 | 61 | 20 | 1.5-3.0 |
Z200 | 200 | 67 | 61 | 20 | 1.5-3.0 |
Z250 | 250 | 78 | 72 | 20 | 1.5-3.0 |
Z300 | 300 | 78 | 72 | 20 | 1.5-3.0 |
