Ridge Cap Forming Machine

1 SET
MOQ
to be negotiated
Price
Ridge Cap Forming Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Ridge Cap Forming Machine
Material Thickness(mm): 0.4-0.8
Forming Speed(m/min): 30
Roll Station: 18
Main Power(KW): 11
Hydraulic Power(KW): 7.5
Control System: PLC Panasonic
Drive: By Chain
Key Selling Points: Easy To Operate
High Light:

ag panel roll forming machine

,

r panel roll forming machine

,

roll forming machine 18 Roll Station

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 1-5 Sets/25 Days; >5 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 50 Sets Per Month
Product Description

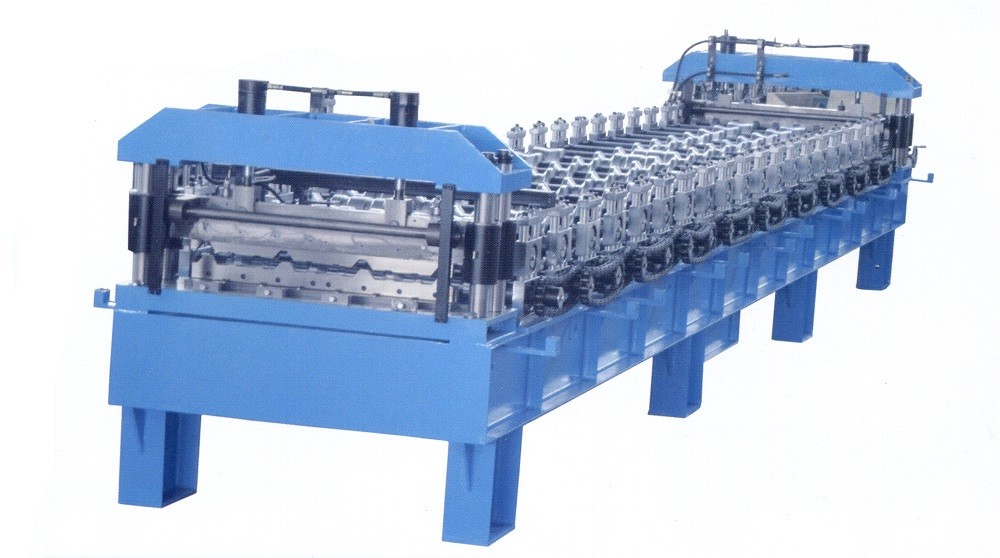

Ridge Cap Forming Machine



The whole line is controlled by imported PLC, and the touch screen is used for man-machine interface to realize the interaction between human and PLC. Through it, the operator issues instructions to the PLC and monitors the control process, so that the operator can control the production line and modify the control parameters, and can monitor the operating status of the equipment, operating parameters and fault indications in real time. The length of the part is set digitally, and the length of the part can be adjusted. Real-time monitoring of equipment operating status and fault indication. There are two modes of operation: manual/automatic. With manual and automatic switching functions: in the manual state, it can be operated as a stand-alone machine, which is convenient for maintenance; in the automatic state, the whole line of production runs and starts in sequence; the whole line has an emergency stop button, which is easy to handle emergency accidents and ensure equipment and operators Safety. Except for the power cord, all signal lines are connected by aviation plugs, which reduces wiring time, avoids wiring errors, and greatly improves the aesthetics.





Structure



The main machine of the equipment consists of a passive decoiler, a roll forming main machine (including guided feeding, Hydraulic cutting and discharging table) hydraulic system, electronic control system and so on.



The processing process of the equipment roll parts is completed by CNC lathes and other processing machinery, which effectively guarantees the processing accuracy of the parts, and uses various process equipment and testing equipment to ensure the equipment assembly accuracy.



No. Item Main Specification
1 Uncoiler Passive unwinding, manual tightening
2 Load bearing of decoiler 5T
3 Inner diameter of uncoiler 508
4 Guided feed rack form Lateral handwheel

Ridge Cap Forming Machine 0
