Steel Floor Deck Roll Forming Machine

1 SET
MOQ
Steel Floor Deck Roll Forming Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Steel Floor Deck Roll Forming Machine
Max Forming Speed(m/min): 8-12
Roller Material: Steel With Chrome Treatment
Controller: PLC
Operation: Touch Screen And Button
Hydraulic System Pressure(MPA): 12
Hydraulic Station Motor Power: 5.5
Main Motor Power: 22-30
High Light:

trapezoidal sheet roll forming machine

,

trapezoidal panel roll forming machine

,

Metalworking Rollformer Machines

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 1-5 Sets/25 Days; >5 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 50 Sets Per Month
Product Description

Steel Floor Deck Roll Forming Machine



Introduction



Steel floor deck sheet is rolled by WFD series steel floor decking roll forming machine, the finished products are of many features, such as simple shape, large wave height, high intensity and good adhesivenes when pouring the concrete together with the welded steel wire net on-site. In the high-storey building, it not only can save steel mould board, but also  reduce the bearing of the floor; on basis of equal capacity, it reduces the steel amount of engineering useage, so that it saves cost of investment.



WFD  series steel floor deck roll forming machine consists of uncoiler and its base, infeed guides, fixed position driven forming stations, shearing device, hydraulic station, PLC control  console and so on. We can design different kinds of profile and fittings for steel deck machine, as per customers' requirements.



Model WFD
Material Type Galvanized Steel Aluzinc Steel
Thickness(mm) 0.8-1.2 0.8-1.2
Yield Stress(mpa) 300-350 230-300
Hydraulic station motor power(kw) 5.5
Main Motor Power 22-30 18.5
Total Power 27.5-35.5 24
Total Weight About 18000 About 18000



Working Flow

Uncoiling --- Sheet Guiding --- Roll Forming --- Measuring Length & Shearing --- Sheet to Support Table

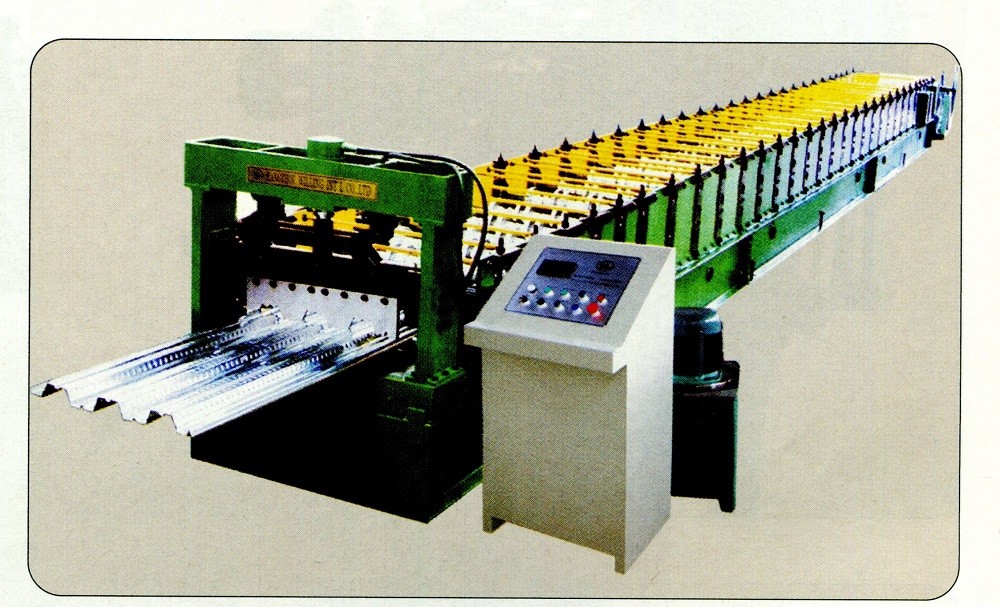

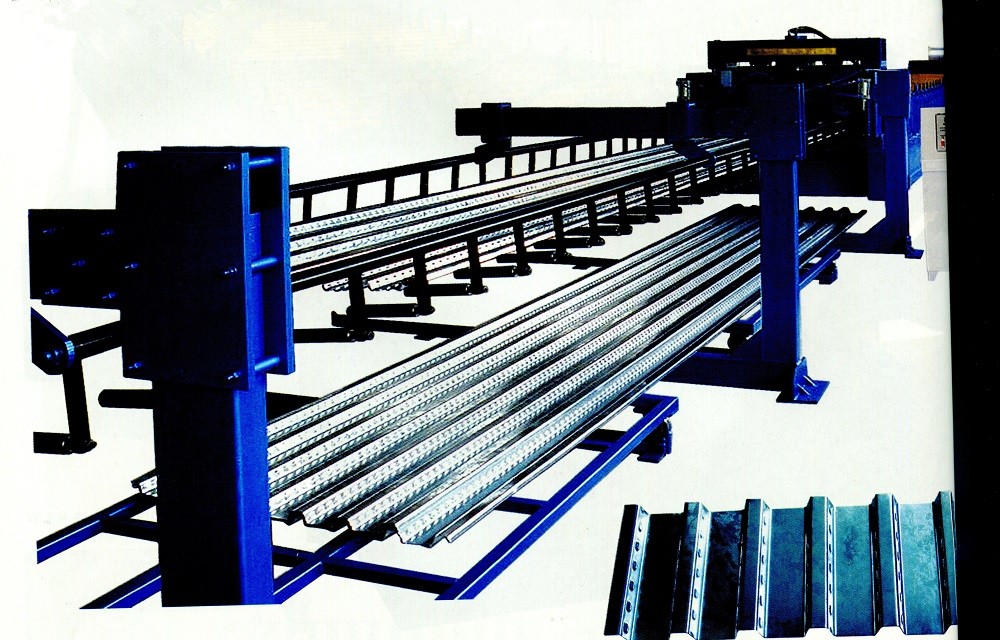

Steel Floor Deck Roll Forming Machine 0Steel Floor Deck Roll Forming Machine 1Steel Floor Deck Roll Forming Machine 2
