C Purlin Forming Machine

1 SET
MOQ
to be negotiated
Price
C Purlin Forming Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: C Purlin Forming Machine
Material Thickness(mm): 1.5-3.0
Forming Speed(m/min): 12-15
Roll Station: 14
Main Power(KW): 15
Hydraulic Power(KW): 7.5

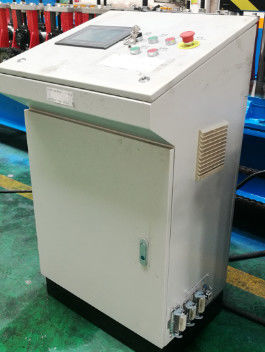

Control System: PLC Panasonic/omron/simens/mitsubishi
Drive: By Chain
Key Selling Points: High Rigidity
High Light:

steel c purlin making machine

,

c purlin making machine 14 Roll Station

,

c purlin forming machine

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 1-5 Sets/25 Days; >5 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 50 Sets Per Month
Product Description

C Purlin Forming Machine



Introduction

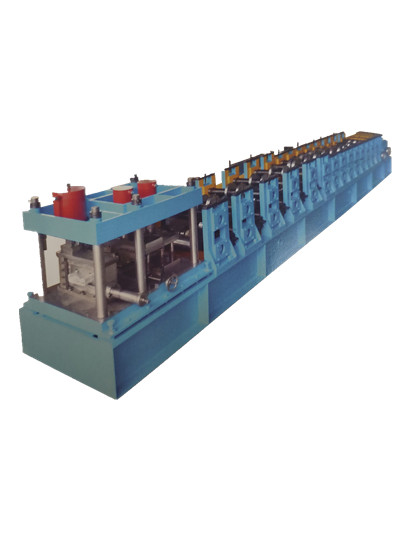

This machine uses coiled metal sheets as raw materials for the processing of C-shaped purlins. The assembly line includes functions such as material racks, front punching, C-shaped steel forming host, and cutting (the above processes are automatically controlled). The whole machine adopts PLC control and AC frequency conversion speed regulation technology to realize continuous automatic production. It is an ideal production equipment for steel structure and metal cold bending processing industries.



Feeding frame: mainly composed of uncoiling frame, mandrel, brake device, etc. The uncoiling frame is a steel plate welded structure; the square-head adjusting screw at the end of the main shaft expands and contracts, and the tension pad on the mandrel shrinks and tightens in the radial direction to hold and relax the steel coil; the brake device is friction between the brake band and the brake wheel Force to achieve, adjust the bolt, adjust the unwinding speed.





Standard Specifications



Model H B B C T
C80 80 40 40 15 1.5-3.0
C100 100 50 50 20 1.5-3.0
C120 120 50 50 20 1.5-3.0
C140 140 50 50 20 1.5-3.0
C160 160 60 60 20 1.5-3.0
C180 180 60 60 20 1.5-3.0
C200 200 60 60 20 1.5-3.0
C220 220 70 60 20 1.5-3.0
C250 250 70 70 20 1.5-3.0

C Purlin Forming Machine 0C Purlin Forming Machine 1
