Multi Station Cold Heading Machine High Precision Long Service Life Regular Irregular Shaped

1

MOQ

Multi Station Cold Heading Machine High Precision Long Service Life Regular Irregular Shaped

Features Gallery Product Description Request A Quote

Features

Specifications

Basic Infomation

Place of Origin: China

Payment & Shipping Terms

Packaging Details: Nude, for FCL shipment.

Delivery Time: 30~60days.

Payment Terms: L/C, T/T

Supply Ability: 100pcs/season

Gallery

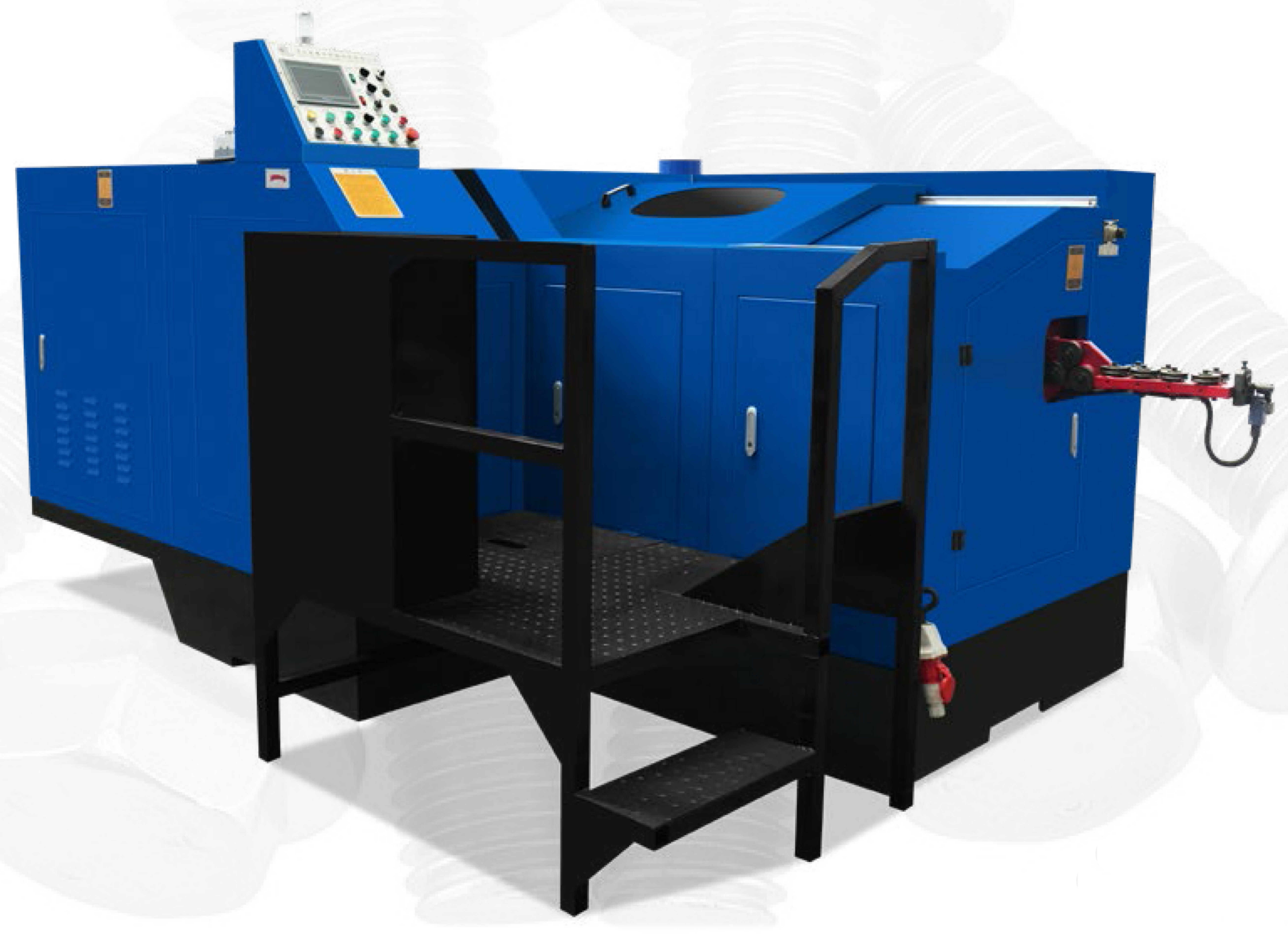

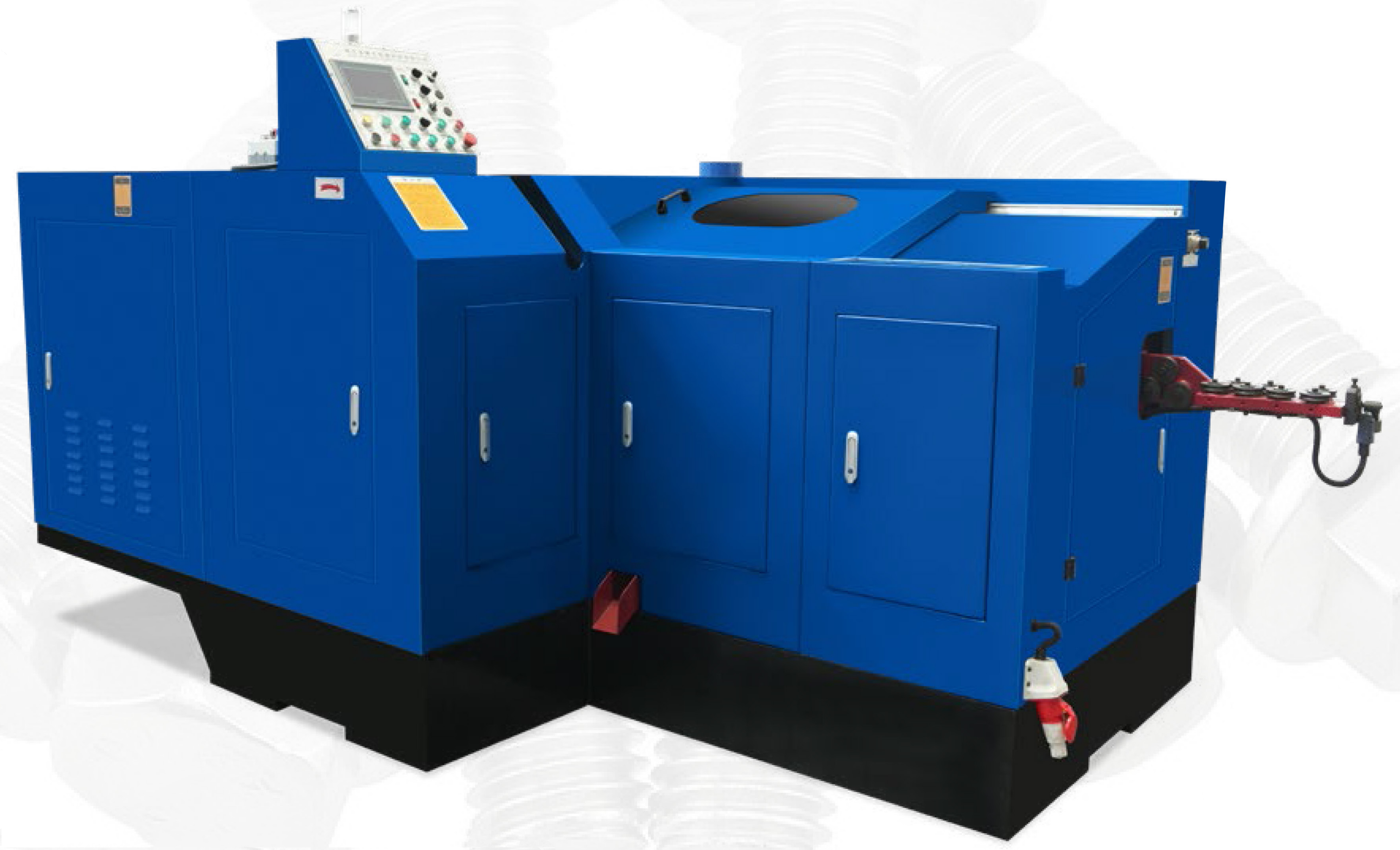

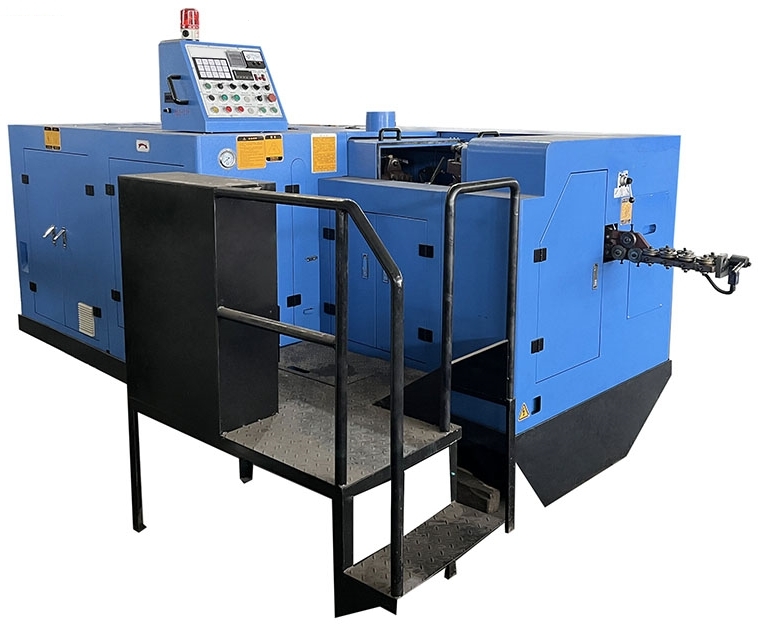

Multi Station Cold Heading Machine High Precision Long Service Life Regular Irregular Shaped

Multi Station Cold Heading Machine High Precision Long Service Life Regular Irregular Shaped

Product Description

Multi-stationed Cold Heading Machine

Model	Unit		10B4SL	17B4SL	19B4SL
Forging station			4	4	4
Max. cut-off diameter	mm		9	13	17
Max. cut-off length	mm		105	180	185
Max. kick-out length	mm		90	175	180
Max. P.K.O length	mm		20	30	30
Cut-off die(D×L)	mm		28×46	40×80	46×80
Main die	mm		50×105	80×185	93×190
Main die pitch	mm		60	93	114
Punch hole	mm		40×110	50×130	60×170
Main slider stroke	mm		150	250	270
Forging power	ton		40	85	120
Products	Size		1/4(M6)	3/8(M10)	1/2(M12)
	Max. length		75	150	150
	Min. length	HEX	16	30	40
	Min. length	SOCKET	20	40	40
Max. output	pcs/min		240	175	125
Main motor	HP		15	40	50
Machine weight	ton		10	19	27

Feel free to contact us about the product you want to produce, we will recommend suitable machine and quote best price!
