Features

Specifications

Weight: 750 Kg

Capacity: 27-30pcs/min

Dimensions: 1950 X 800 X 1550mm

Motor Power: 1.5KW

Servo Motor Power: 1KW

Hanger Size Range: 13" ~ 15" & 16" ~ 18"

Wire Diameter Range: φ1.8 ~ 2.8mm

Automatic Detection: Emergency Stop Sensor

Core Components: Motor

Machine Type: Automatic Wire Hanger Machine

Model QK-2(S): 700KGS, 1.95 × 0.8 × 1.55M

Model QK-3: 720KGS, 2.0 × 0.8 × 1.75M

Model QK-4: 1100KGS, 2.5 × 1.2 × 1.68M

Model QK-2(L): 700KGS, 1.95×0.8×1.55M

Model QK-3(L): 720KGS, 2.0×0.8×1.75M

Highlight:

Automatic Wire Hanger Machine

27-30pcs/min Hanger Making Machine

Galvanised Steel Wire Hanger Machine

Basic Infomation

Place of Origin: Jiangsu, China

Brand Name: DURA

Payment & Shipping Terms

Gallery

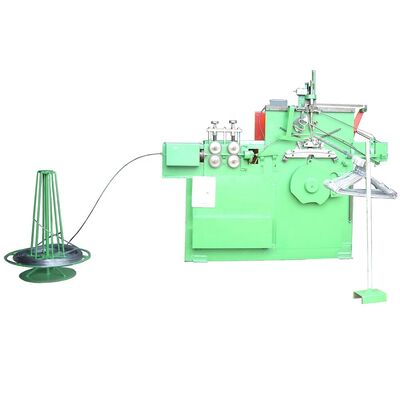

Automatic Galvanised Steel Wire Hanger Machine with 27-30pcs/min Capacity for Laundry Hanger Production

Product Description

Automatic Laundry Galvanised Steel Wire Hanger Making Machine

Automatic Wire Hanger Making Machine

Key Features

Automatic hanger fabrication with high production capacity
Automatic detecting sensor for emergency stop functionality
Easy operation and simple maintenance requirements
Durable dies and lower operational costs

Machine Specifications

Model	QK-2(S)	QK-3	QK-4
Designed Capacity	27-30 pcs/min		20 pcs/min
Hanger Size Range	13"-15" & 16"-18"		14"-19"
Wire Diameter Range	φ1.8-2.8mm		φ1.6-4.0mm
Motor Power	1.5KW		2.2KW
Servo Motor Power	-	1KW	2KW
Weight	700 KGS	720 KGS	1100 KGS
Overall Dimensions	1.95×0.8×1.55M	2.0×0.8×1.75M	2.5×1.2×1.68M

Model	QK-2(L)	QK-3(L)
Designed Capacity	25-29 pcs/min
Hanger Size Range	20"
Wire Diameter Range	φ1.8-3.0mm
Motor Power	1.5KW	1.5KW
Servo Motor Power	-	1KW
Weight	700 KGS	720 KGS
Overall Dimensions	1.95×0.8×1.55M	2.0×0.8×1.75M

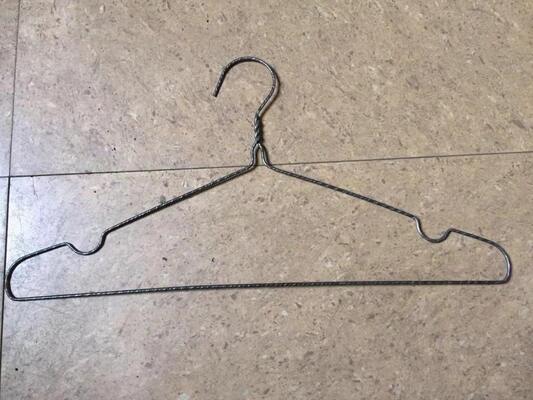

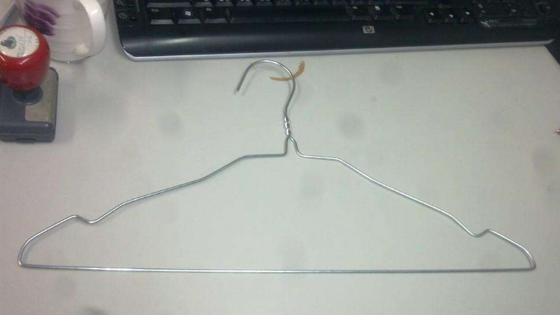

Customized hanger shape & size available! Provide your hanger photo, drawing, or sample, and we will adjust the automatic hanger making machine to produce the exact hanger size and shape you require.
