Automatic Laundry Galvanised Steel Wire Hanger Making Machine

1 SET

MOQ

to be negotiated

Price

Automatic Laundry Galvanised Steel Wire Hanger Making Machine

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Automatic Laundry Galvanised Steel Wire Hanger Making Machine

Warranty: One Year

Key Selling Points: Easy To Operate

Application: Wire Hanger Production

Overall Dimensions: 1950 X 800 X 1550mm

After-sales Service Provided: Online Support, Video Technical Support, Engineers Available To Service Machinery Overseas

After Warranty Service: Video Technical Support, Online Support, Spare Parts

Applicable Industries: Garment Shops, Manufacturing Plant, Retail

Capacity: 1620-2000 Pcs/Hour

Hanger Structure: Common Type Or By User's Samples

Marketing Type: Ordinary Product

Highlight:

hook Wire Hanger Making Machine

,

Wire Hanger Making Machine 2000Pcs Hou

,

wire hanger hook making machine

Basic Infomation

Place of Origin: Jiangsu, China

Brand Name: DURA

Model Number: QK-2; QK-2(S); QK-3;QK-5

Payment & Shipping Terms

Packaging Details: Plywood Case

Delivery Time: 1-5 Sets/30 Days; ≥10 To Be Negotiated

Payment Terms: L/C, D/P, T/T

Supply Ability: 50 Sets Per Month

Gallery

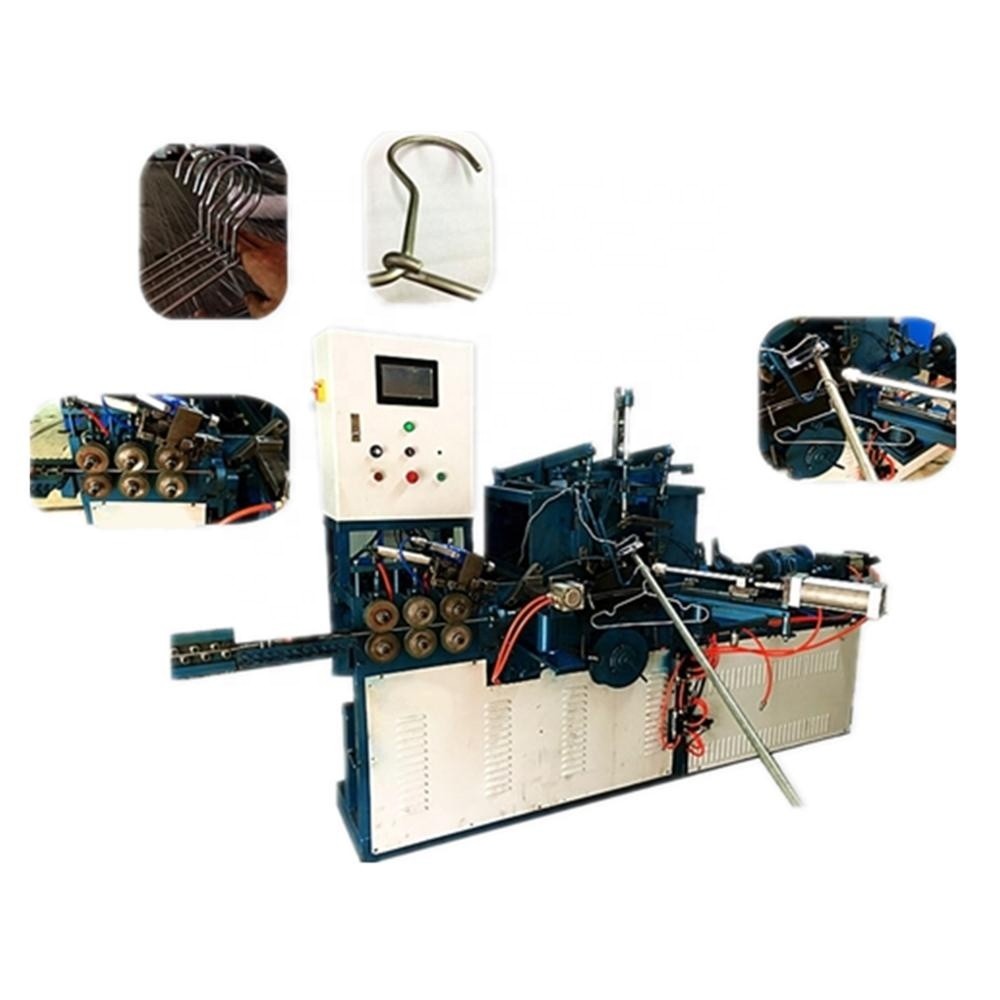

Automatic Laundry Galvanised Steel Wire Hanger Making Machine

Product Description

Automatic Laundry Galvanised Steel Wire Hanger Making Machine

Features

1. Automatic hanger fabrication with higher capacity

2. Automatic detecting sensor for emergency stop

3. Easy operation and simple maintenance

4. Durable dies and lower operation cost.

Model	QK-2(S)	QK-3	QK-4
Designed capacity	27 ~ 30pcs/min		20pcs/min
Hanger size range	13" ~ 15" & 16" ~ 18"		14 ~ 19"
Wire dia. range	φ1.8 ~ 2.8mm		φ1.6 ~ 4.0mm
Motor power	1.5KW		2.2KW
Servo motor power	-	1KW	2KW
Weight	700KGS	720KGS	1100KGS
Overall dimensions	1.95 × 0.8 × 1.55M	2.0 × 0.8 × 1.75M	2.5 × 1.2 × 1.68M


			Model
			QK-2(L)
			QK-3(L)

			Designed capacity
			25 ~ 29pcs/min

			Hanger size range
			20"

			Wire dia. range
			φ1.8 ~ 3.0mm

			Motor power
			1.5KW
			1.5KW

			Servo motor power
			-
			1KW

			Weight
			700KGS
			720KGS

			Overall dimensions
			1.95×0.8×1.55M
			2.0×0.8×1.75M
