Home /Products/Coil Nail Collator/Professional Fully Automatic Coil Nail Collator, Coil Nail Making Machine

Professional Fully Automatic Coil Nail Collator, Coil Nail Making Machine

1 SET
MOQ
to be negotiated
Price
Professional Fully Automatic Coil Nail Collator, Coil Nail Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Professional Fully Automatic Coil Nail Collator, Coil Nail Making Machine
Power (KW): 1.5
Weight (KG): 1500
Warranty: One Year
Key Selling Points: Fully Automatic, Simple Operation Control By Pannel
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Application: Hardware Industry
Highlight:

automatic welding Coil Nail Collator

,

Coil Nail Collator 2000pcs min

,

Compact Wire Coil Nail Collator
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Model Number: CNC-N4
Payment & Shipping Terms
Packaging Details: Nude Package
Delivery Time: 1-3 Sets/45 Days; ＞3 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 50 Sets Per Month
Product Description

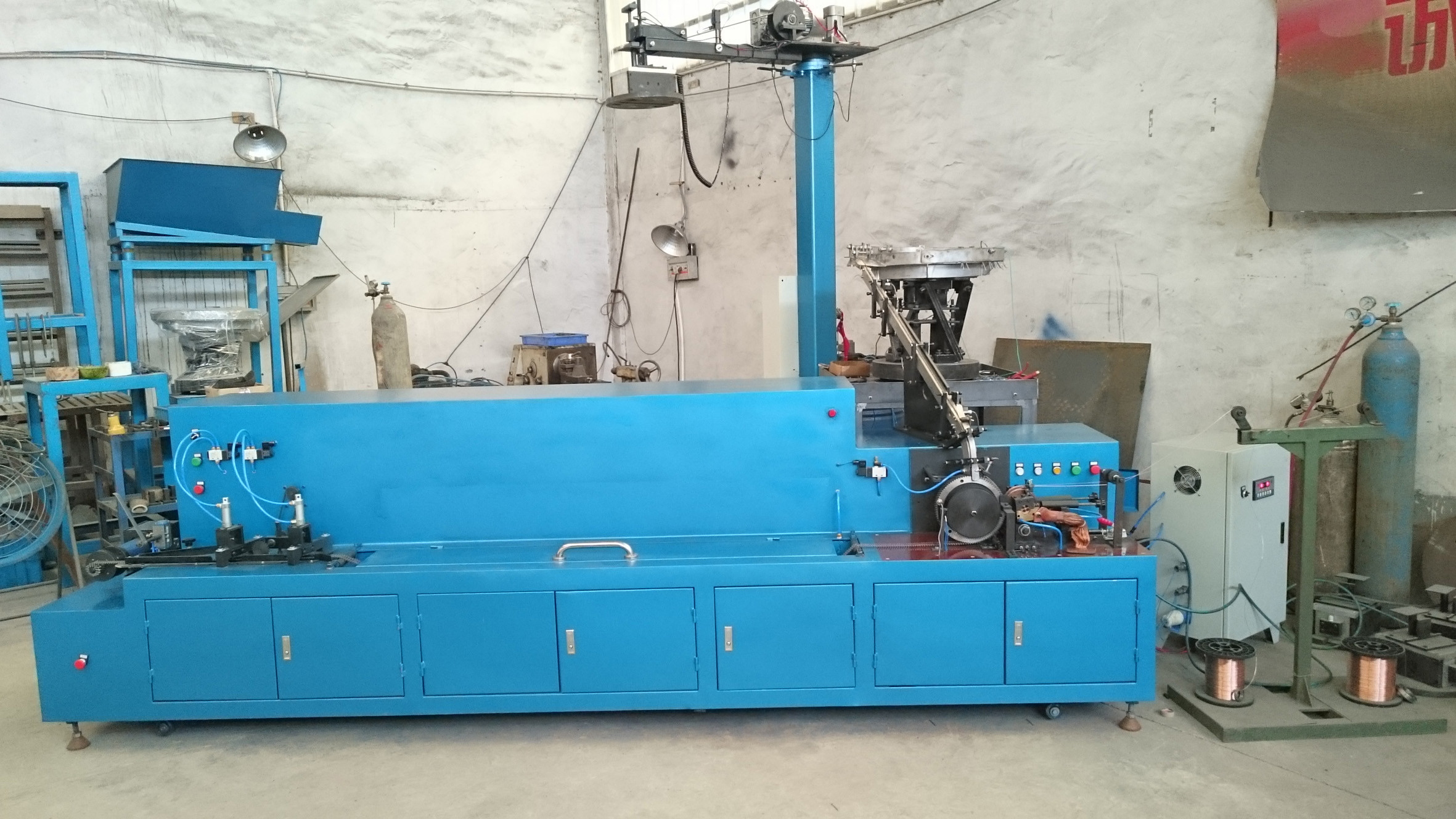

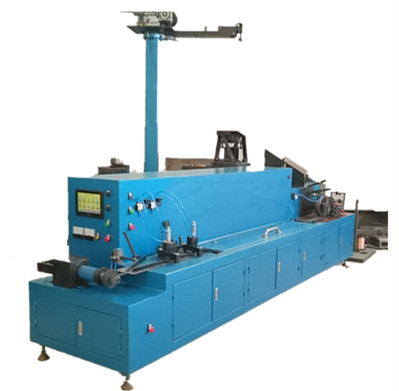

Fully Automatic Coil Nail Collator, Coil Nail Making Machine





Usage and Features

This coil nail collator is a special kind of automatic welding equipment. Combined the advantages of world first-rate products with various feedback from users and long-term troubleshooting accumulation, so far the machines have been improved and upgraded to the 3rd generation with continuous introduction of the latest technology in automatic control system.

Under regular vibrations, the disordered wire nails/roofing nails put in the vibrating feeder are guided to line up along the spiral passage against the wall of feeder and to get through a long downward groove t o welding wheels, where two copper-plated wires are welded with the nails at a certain angle, 15°to 16°, then the welded nails are coiled to a fixed length as per the counter to cut off, forming a coil shape with flat top or cone top.

Between welding and coiling, a rust-proof acrylic resin/lacquer dipping and drying unit can be inserted as a option upon buyer’s request ), at last each coil of nails is bound with a rubber band by an operator.


Technical Specifications on Model: CNC-N4:

Model CNC-N4 Applicable nail types common nail with smooth,
annular, twisted shank
Applicable nail sizes Capacity Electronic control
system		 PLC/VF Inverter
Dia. x Length: Welding speed: Touch Screen Size: 10.1”
Ø1.8-2.5mm×25-75mm
Ø2.7-4.0mm×75-100mm		 at 1250-2000 pcs/min
at 800-1800 pcs/min
Coil spec. :
- Angle(1)
- Nails per coil
- Welding wires(2)		 15°- 16°
200 – 400
copper coated steel wire		 VF inverter
Applicable power
supply		 AC 380V, 50Hz, 3-phase
(others available upon request,
like: 220V, 60Hz, 3-phase)		 A high-frequency inverted
type, welding power source & a
custom-made MCU or microcomputer controller
is applied to welding process.
Welding current 100 – 1000A
(secondary side)		 Compressed air ≥ 0.4 – 0.8Mpa
Cooling water Pressure required:
0.1 – 0.2Mpa
Rated power 8KW Net Weight Approx. 1500kgs
Max. power 20KW Dimensions 2700 x 1500 x 2500mm


Technical Specifications on Model: CNC-RN

Model CNC-RN Applicable nail types Roofing nails with
smooth, annular, twisted
shank
Applicable nail sizes Capacity Electronic control
system		 PLC
Dia. x Length:
Ø3.1×25-64mm		 Welding speed:
at 1250- 2000 pcs/min		 Touch Screen Size: 10.1”
Coil spec. :
- Angle(1)
- Nails per coil
- Welding wires(2)		 15°- 16°
200 – 400
copper coated steel wire
VF inverter
Applicable power
supply		 AC 380V, 50Hz, 3-phase
(others available upon request,
like: 220V, 60Hz, 3-phase)		 A high-frequency inverted
type, welding power source & a
custom-made MCU or microcomputer controller
is applied to welding process.
Welding current 100 – 1000A
(secondary side)		 Compressed air ≥ 0.4 – 0.8Mpa
Cooling water Pressure required:
0.1 – 0.2Mpa
Rated power 8KW Net Weight Approx. 1500kgs
Max. power 20KW Dimensions 2350 x 900 x 2500mm
Model CNC-N3 Applicable nail types Roofing nails with
smooth, annular, twisted
shank
(1) : In China many users prefer to apply the angle at 15.5° in order to accommodate the finished coil nails to air guns with 15° or 16°, otherwise an extra S.S. Nail Holding Wheel has to be separately ordered.
(2): Recommended specifications of welding wires for common coil nails: In China the manufacturers use copper coated welding wires , - popular size : dia. 0.6. 0.7, 0.75 to 0.8mm - diameter tolerance: +0.01/-0.02mm - tensile strength: 300 – 365 Mpa - elongation: ≥ 12% In addition, the stainless steel coil nails have to use stainless steel welding wires.
