Automatic High-Accuracy Coil Nail Collator with PLC Control and 1500pcs/min Speed for Plastic Strip Nails

1
MOQ
Automatic High-Accuracy Coil Nail Collator with PLC Control and 1500pcs/min Speed for Plastic Strip Nails
Features Gallery Product Description Request A Quote
Features
Specifications
Weight: 2000 Kg
Core Components: PLC
Nail Diameter: 2~3.5mm
Nail Length: 25~90mm
Angle: 0~15°
Speed: 1500pcs/min
Power: 3KW
Dimensions: 4*2*1.6M
Feeder Power: 1.5KW
Lifting Height: 1.5~2M
Rotating Angle: 180 Degree
Feeder Size: 1.45*0.7*1.45*3.1M
Feeder Weight: 280kg
Machine Type: Nail Making Machines
Function: Collating Nails With Plastic Strips
Highlight:

High-Accuracy Coil Nail Collator

,

1500pcs/min Automatic Nail Collator

,

PLC Control Plastic Strip Nail Collator
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Payment & Shipping Terms
Product Description
Automatic Nail Plastic Strip Coiler Collator
Product Overview

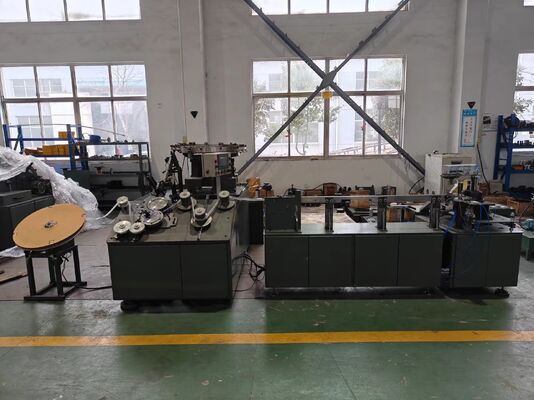

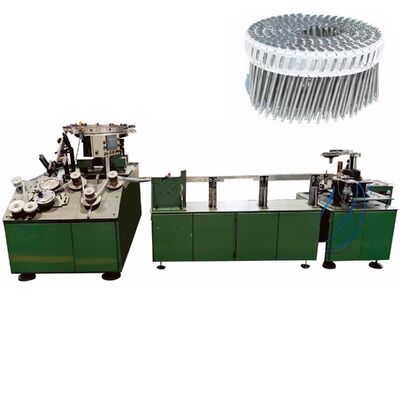

Automatic Plastic Coil Nail Collator
Automatic High-Accuracy Coil Nail Collator with PLC Control and 1500pcs/min Speed for Plastic Strip Nails 0 Automatic High-Accuracy Coil Nail Collator with PLC Control and 1500pcs/min Speed for Plastic Strip Nails 1
Product Specifications
Applicable nail diameter 2~3.5mm
Applicable nail length 25~90mm
Angle 0~15°
Speed 1500pcs/min
Power 3KW
Net Weight 2000kgs
Dimensions (L×W×H) 4×2×1.6M
Automatic High-Accuracy Coil Nail Collator with PLC Control and 1500pcs/min Speed for Plastic Strip Nails 2
Lifting Magnetic Type Nail Feeder (Optional)
This optional auxiliary device enhances wire feeding efficiency and reduces labor requirements by automatically picking nails from storage tanks and feeding them into the vibration bowls of the main machine.
Power 1.5KW
Lifting height 1.5~2M
Rotating angle 180 degree
Size 1.45×0.7×1.45×3.1M
Net Weight 280kg
Sales and Service Network
Automatic High-Accuracy Coil Nail Collator with PLC Control and 1500pcs/min Speed for Plastic Strip Nails 3
Similar Products
Automatic High-Accuracy Coil Nail Collator with PLC Control and 1500pcs/min Speed for Plastic Strip Nails 4
Automatic High-Accuracy Coil Nail Collator with PLC Control and 1500pcs/min Speed for Plastic Strip Nails 5
Automatic High-Accuracy Coil Nail Collator with PLC Control and 1500pcs/min Speed for Plastic Strip Nails 6
Tag:

Roofing Nail Collator Machine

Plastic Strip Nail Collator

Strip Coil Nail Collator
