Rivet Cold Heading Machine, Two Die Four Blow Type

1 Piece
MOQ
to be negotiated
Price
Rivet Cold Heading Machine, Two Die Four Blow Type
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Rivet Cold Heading Machine, Two Die Four Blow Type
Condition: New
Marketing Type: Hot Product 2019
Core Components: Motor
Feature: Two-die Four-blow
Machine Type: Cold Forging Machine
Machinery Test Report: Provided
Warranty Of Core Components: 1 Year
Key Selling Points: Competitive Price
Application: Rivet Production
Local Service Location: None
Showroom Location: None
High Light:

Rivet cold forging header machine

,

cold forging header machine Two Die Four Blow

,

rivet making machines

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: QK24-7T
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 1 Set/30 Days; >1 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 60 Sets Per Year
Product Description

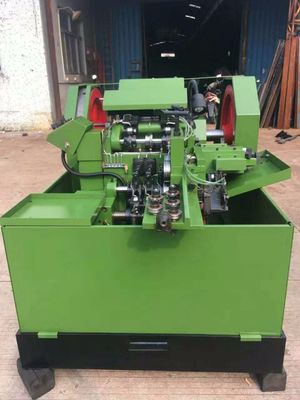

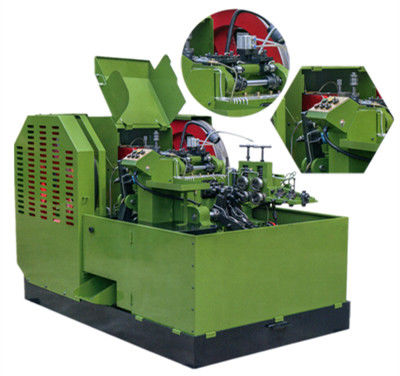

Rivet Cold Heading Machine, Two Die Four Blow Type

Usage And Features

After constant improvement and promotion, the manufacturing accuracy and comprehensive quality of the QK24-7T blind rivet cold heading machine has reached a high level. It can produce regular and irregular-shaped, tubular and semi-tubular rivet and especially Al. L-size head rivet.



Technical data Unit Model: QK24-7T

Max. blank length
Al. mm 30
  Al. for L-size head   20
  Steel   25
Max. blank dia. Al. mm Ø 10
  Al. for L-size head   Ø 5.0
  Steel   Ø 6.5
Designed capacity/speed Al. pcs/min. 50-70
  Al. for L-size head   50-60
  Steel   40-50
Motor power kw 7.5
Weight (Approx.) kg 4600
