Shelf Roll Forming Machine

1 SET
MOQ
to be negotiated
Price
Shelf Roll Forming Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Shelf Roll Forming Machine
Material Thickness(mm): 1.5-2.5
Forming Speed(m/min): 12-15
Roll Station: 20 Stations
Main Power(KW): 18.5
Hydraulic Power(KW): 5.5
Control System: PLC Panasonic
Drive: By Chain
Key Selling Points: Easy To Operate
High Light:

cold roll forming equipment

,

shelf panel roll forming machine

,

rack roll forming machine

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 1-5 Sets/25 Days; >5 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 50 Sets Per Month
Product Description

Shelf Roll Forming Machine​



The machine adopts coiled metal steel strip as raw material, which is uncoiled, continuously rolled and cold-formed, and automatically cut to length to produce plates of specific shapes and specifications. The whole machine adopts PLC control and AC frequency conversion speed regulation technology to realize continuous automatic production. It is an ideal production equipment for steel structure and metal cold bending processing industries.



Process

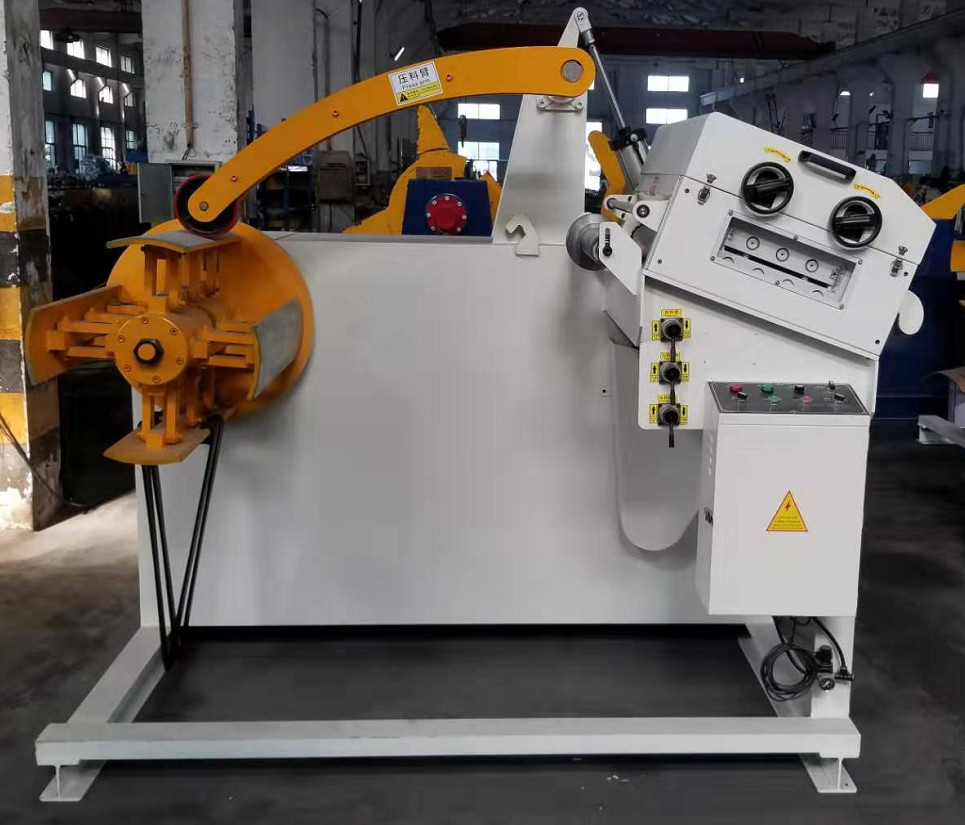

Passive unwinding (two-in-one unwinding and leveling)-hydraulic punching (servo feeding)-roll forming-cut to length (servo tracking)-receiving



Guided feeding rack form

When the lateral roller type main machine feed inlet is provided with left and right guides, the two sides of the raw material plate enter the main machine after being guided from the left and the right, so that the raw material plate and the roll forming system maintain the correct position. The guide position can be adjusted by the manual screw mechanism, and the left and right are independently adjustable, and the guide roller is quenched.

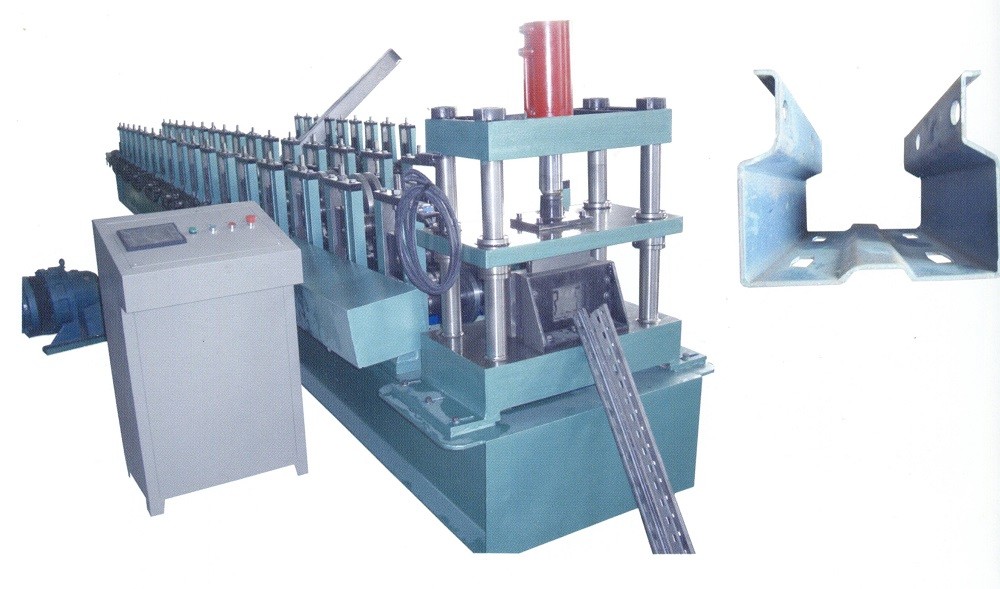

Shelf Roll Forming Machine 0Shelf Roll Forming Machine 1Shelf Roll Forming Machine 2
