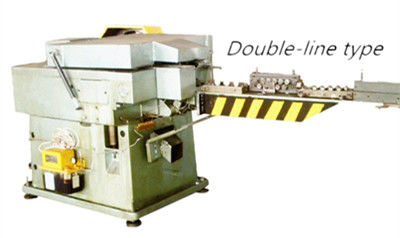

The high speed double-line nail making machine our company developed and produced based on advanced German and Japanese technology and our independent research features rapid and stable speed, high quality and long life in use.
Technical specifications
| Technical data | Model | Z94-2.5D |
| Max. Nail length | mm | 80 |
| Max. Nail diameter | mm | 2.5 |
| Designed capacity/speed | pcs/min | 1100 |
| Motor | kw | 4 |
| Air pressure | Kg/cm2 | 5 |
| Lubricating system | 32# gear oil | |
| Weight | kg | 1700 |
| Overall dimensions(L*W*H) | mm | 2300x1200x1200 |
