Z94 Type H Heavy-duty Durable Low Noise Automatic Wire Nail/Concrete Nail Making Machine

1 SET
MOQ
to be negotiated
Price
Z94 Type H Heavy-duty Durable Low Noise Automatic Wire Nail/Concrete Nail Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Z94 Type H Heavy-duty Durable Low Noise Automatic Wire Nail/Concrete Nail Making Machine
Color: Green Or Customised
Power: 3kw
Weight: 1800kgs
Key Selling Points: Long Service Life
Application: Making Wire Nail, Clout Nail, Concrete Nail, Etc.
Warranty: 1 Year
After-sales Service: Field Installation, Commissioning And Training, Field Maintenance
Showroom Location: South Korea, South Africa
Local Service Location: None
High Light:

4" Concrete Nail Making Machine 200 Per Minute

,

Concrete Nails Making Plant

,

construction nail making machine

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: Z94-H Series
Payment & Shipping Terms
Packaging Details: Steel Pallet
Delivery Time: 1-5 Sets/30 Days; >5 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 50 Sets Per Month
Product Description

Z94 Type H Heavy-duty Durable Low Noise Automatic Wire Nail/Concrete Nail Making Machine



Introduction
The Z94-3.4H and Z94-4.5H heavy-duty automatic nail making machines are of mechantronics integration, except for the
characteristics in high speed, low noise and high precision, they are also of 3 times service life than Z94-C series.

The machines apply automatic oiling system so user can set the oiling time freely. When the oil is below the liquid level line,
the machines stop automatically to prevent abrasive wear.


During wire feeding the automatic stop of the machines activates immediately once detecting curved wire, tangled wire and lack of wire so as to avoid accidents and save electrical energy.



The Z94-3.4H and Z94-4.5H nail making machines are especially suitable for making clout nails and concrete nails. The kind of Series H machines are of solid, heavy structure and higher stability. With some modification, the machines can make special-shaped nails. Due to the introduction of nail points' chip remover, the high quality of clout and roofing nails are fully ensured.



What's more:

The rolling part of the machines applies the combination of bush bearing rolling and bearing rolling, which enhances the size stability of nail heads' formation and brings convenience to the maintenance of the machines. The main parts of the machines are made of high -quality steel, such as crankshaft, sliding block of heading device made of 40CrNiMo, drive bevel gear made of 20CrMoti and all heat treated, making the machines impact resistant, wear resistant and durable.



TECHNICAL SPECIFICATIONS
Model Unit Z94-4.5H Z94-3.4H
Max. dia. Of nail mm 4.5 3.7
Min. dia. Of nail mm 2.8 1.8
Max. length of nail mm 100 80
Min. length of nail mm 50 20
Designed capacity pcs/min 300 350
Motor power KW 4 3
Weight kg 3800 1800
Overall dimensions(L*W*H) mm 3000*1600*1650 2400*1500*1500

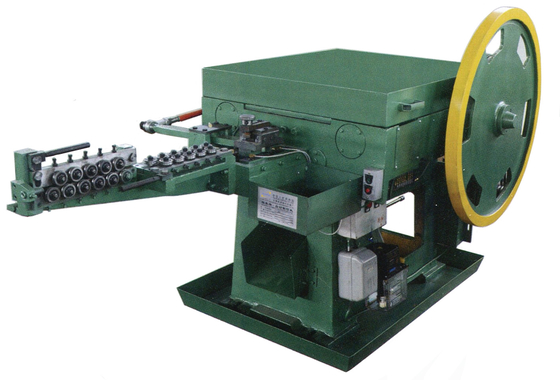

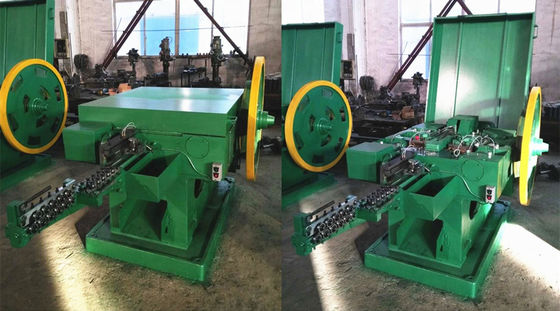

Z94 Type H Heavy-duty Durable Low Noise Automatic Wire Nail/Concrete Nail Making Machine 0Z94 Type H Heavy-duty Durable Low Noise Automatic Wire Nail/Concrete Nail Making Machine 1
