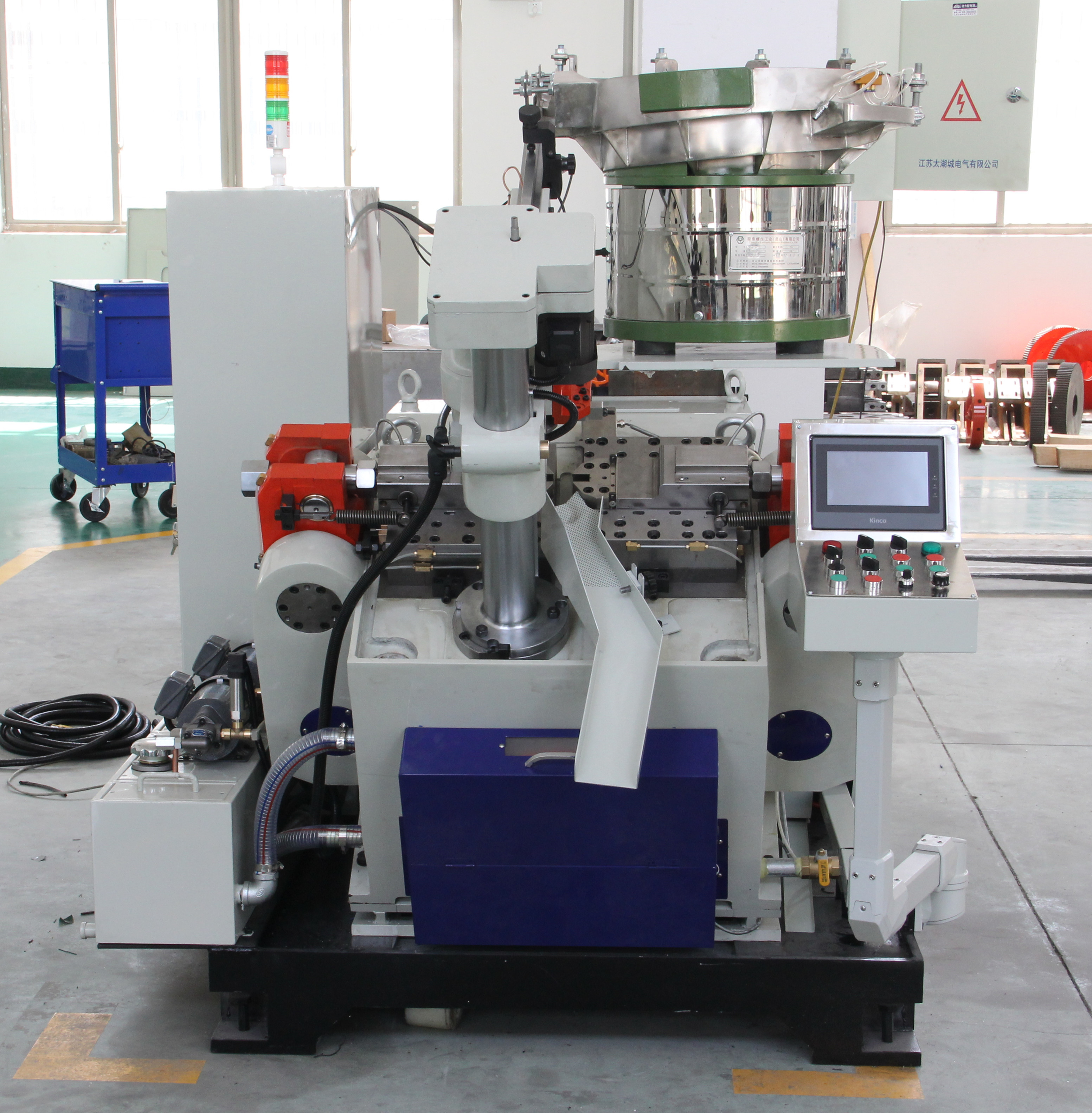

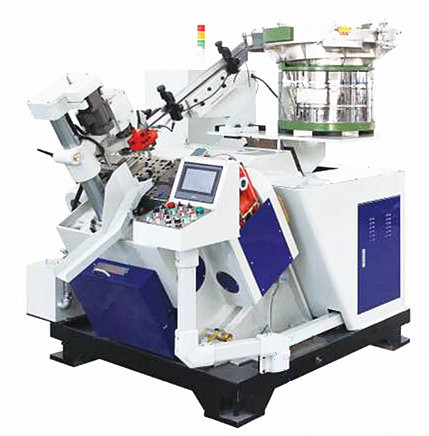

Screw Drill-point Former for Making Self-drilling Screw
Product Application
- for forming the point/tip/head of the self-drilling screw,
as in step. 2 shows in the following picture:
(step 1 requires screw cold heading machine, step 3 requires screw thread rolling machine)
Model | SDS-5(S) |
Blank dia. | 2.8-4.9mm |
Length | 10-125mm |
Capacity | 100-500pcs/min |
Main motor | 5.5kw |
Inverter | 7.5kw |
Driving method | MAC Solenoid Valve+Air Actuated Brake |
Auto-action & detect controller | PLC & Touch Screen Man-machine Interface Fault Indication |
Overall dimensions | 1900*1400*1600mm |
Weight(Approx.) | 2300kg |
