Fuel Saving 2105A-3A Motor Diesel Engine 2 Cylinder

1 SET
MOQ
to be negotiated
Price
Fuel Saving 2105A-3A Motor Diesel Engine 2 Cylinder
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 2105A-3A Diesel Engine, Engine Model 2105A-3A
Usage: Argriculture
Fuel: Diesel
Brand Name: XinFeng
Weight: 430KGS
Core Components: Engine
Power: 18.6 KW
Showroom Location: Pakistan
Stroke: 4 Stroke
Cold Style: Water-cooled
Dimension(L*W*H): 1140 X 620 X 1070
Rated Power/Speed: 1500rpm
High Light:

2105A-3A Diesel Engine

,

diesel engine twin cylinder

,

2105a-3a

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Model Number: 2105A-3A; 2105A-6
Payment & Shipping Terms
Packaging Details: Plywood Case
Delivery Time: 1-36 Sets/60 Days; >36 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Month
Product Description

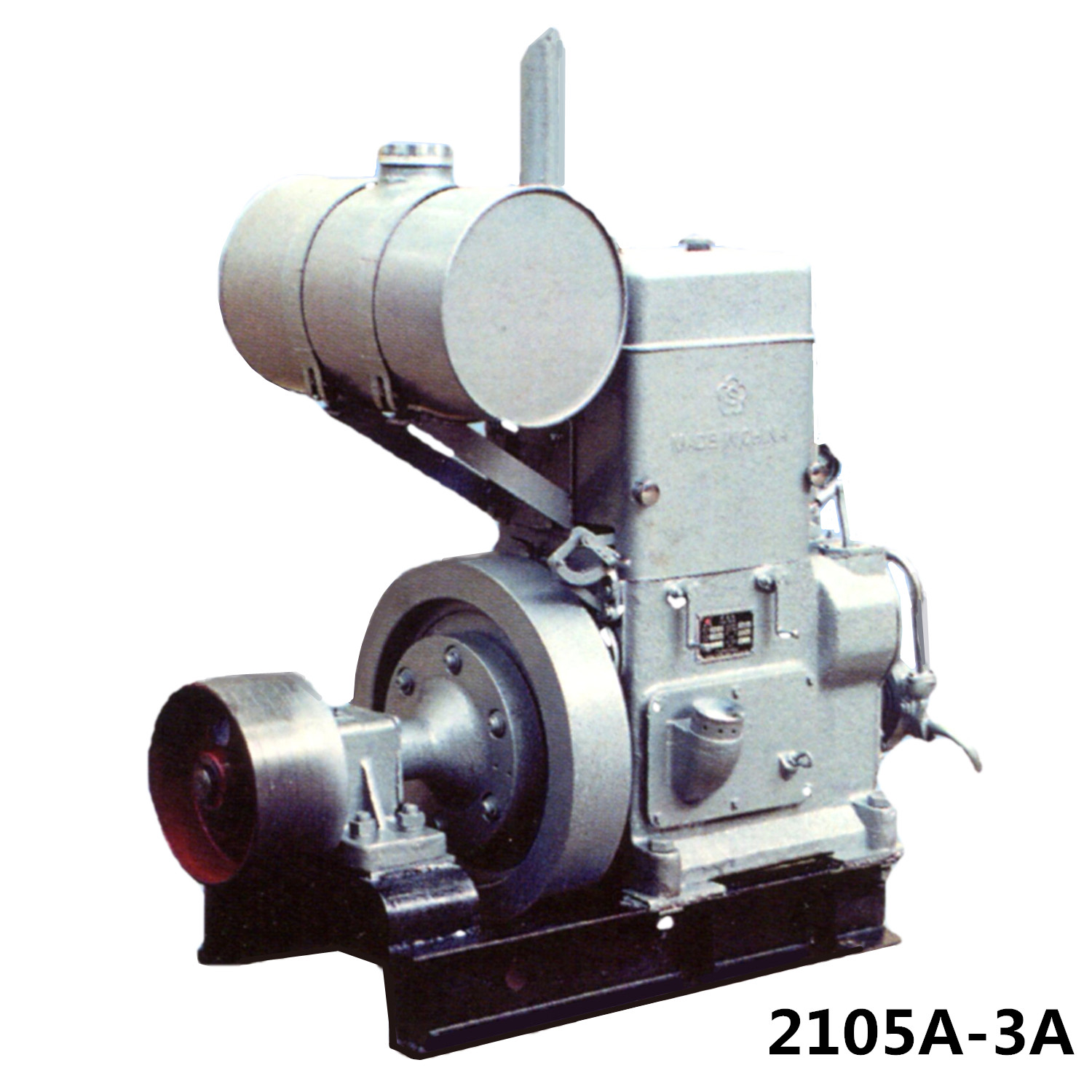

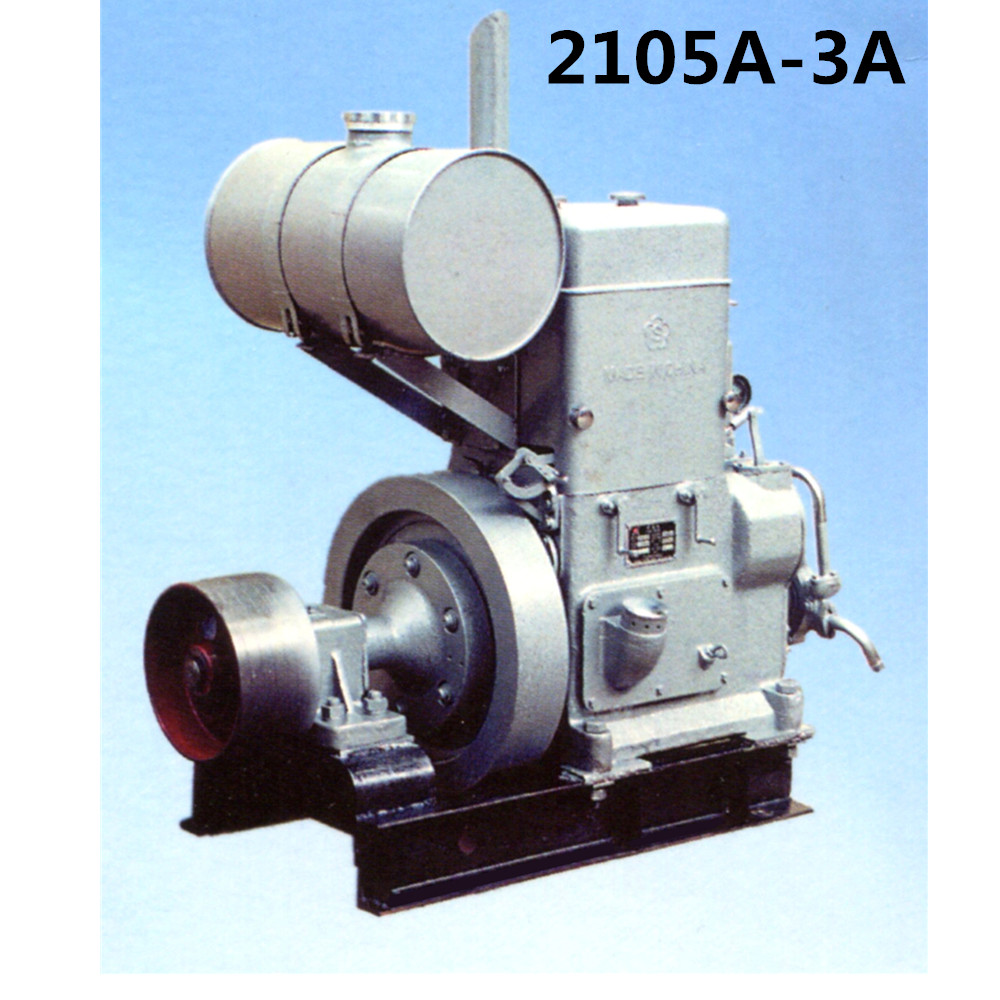

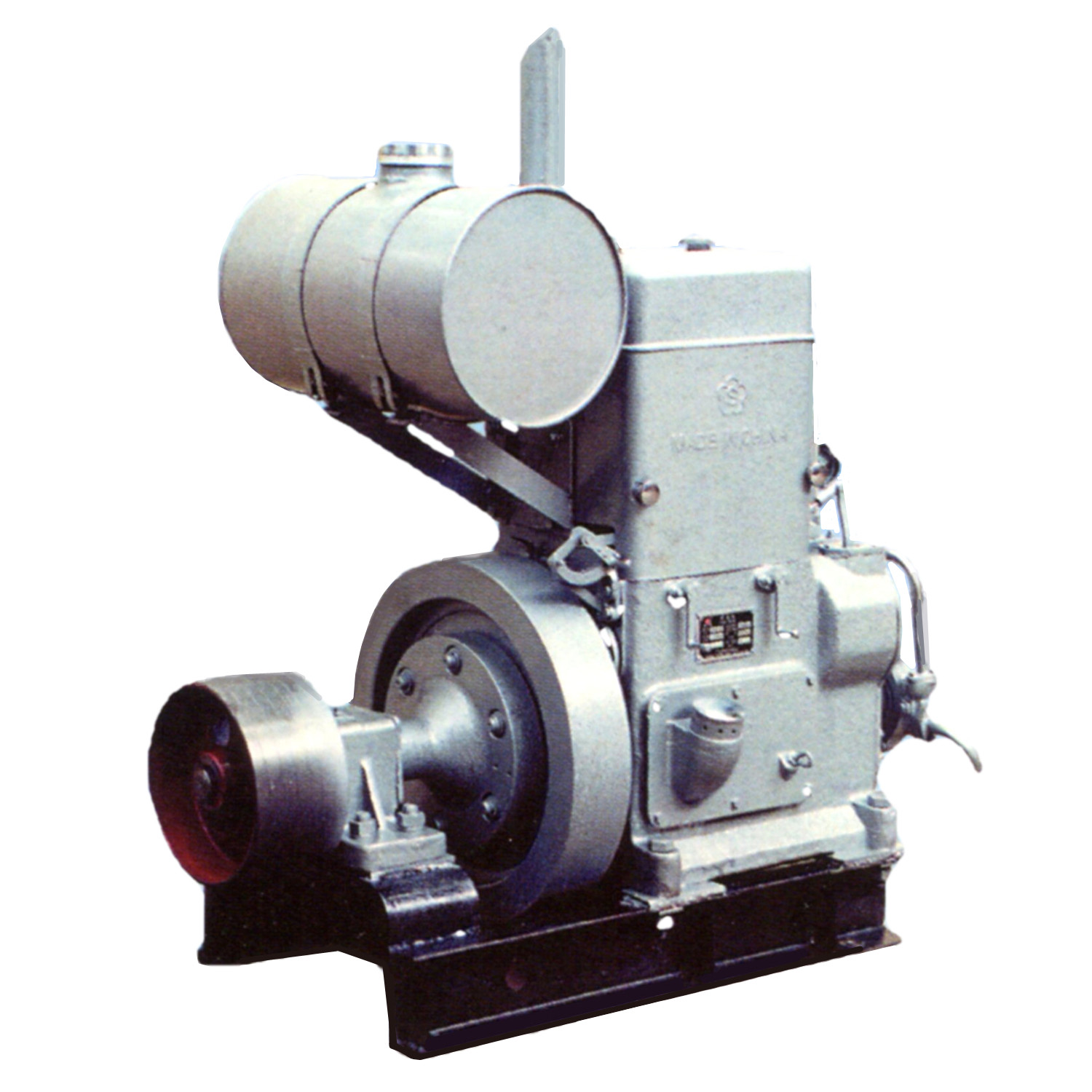

Fuel Saving 2105A-3A Diesel Engine, Engine Model 2105A-3A



Usages

Diesel engine 2105A is an improved model of 2105 diesel engine. Its 12 hour rating is increased to 24ps or 26ps from original 20ps. Agricultural diesel engine units model 2105A-3A is a variant of 2105A diesel engine. It is applied as drive power for irrigation and drainage, processing machines of products from farm and sideline, etc.

Features

Advanced technique after experiences of production through a long history * Compact, rigid and reliable, easy to operate and maintain * Steady performance, high power reserve * With separate bearing assembly and drive pulley * With sliding-type mounting frame.

Model 2105A-3A
Type

Vertical,4-Stroke,Swirl

combustion chamber

Cylinder number 2
Bore(mm) 105
Stroke(mm) 130
Compression Ratio 20:1
Rated Rotation(r/min.) 1500
Rated Output(kw) 17.65
Over-load Output(kw) 19.41
Specific Fuel Consumption(g/kw.h) ≤251.6
Specific Oil Consumption(g/kw.h) ≤2.04
Lubricating Method

Pressure combined with

splashing and oiling

Cooling System

Open-type

water-cooling

Method of Starting Manual starting
Rotating Direction of Crankshaft
(Facing Flywheel)
Counter-clockwise
Net weight(kg) 420
Gross weight(kg) 470
Dimensions(L x W x H)(mm) 1140 x 620 x 1070
