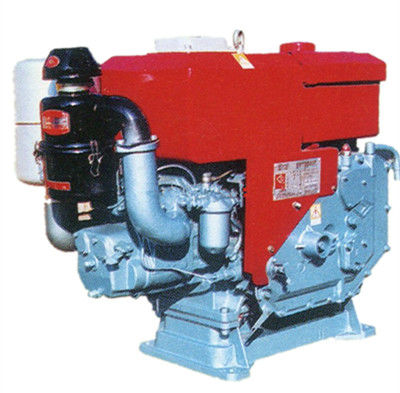

SD1125 Diesel Engine, Horizontal & Single Cylinder Type
Technical Specifications
| Model | SD1125 | |
| Type | Horizontal type, single cylinder, four-stroke, water-cooling | |
| Cylinder diameter×stroke(mm) | 125×120 | |
| Displacement | 1.473 | |
| Model of combustion chamber | Direct-injection | |
| Compressure chamber | 16.5 | |
| Power | 1 hour power | 20.22/2200 |
| 12 hour power | 18.38/2200 | |
| Specific fuel consumption | ≤250.2 | |
| Specific oil consumption | ≤0.050 | |
| Max. torque | ≥89.4 | |
| Injecting pressure | 19.5 | |
| Lubricating type | Force and splash | |
| Cooling method | Water-cooling | |
| Starting method | Cranking or electric starting | |
| Net weight(kg) | 240 | |
|
Overall dimensions (L×W×H)(mm) |
857×555×779 |
|
