Stitching Wire Forming Machine for Staple/Brad Nail Production

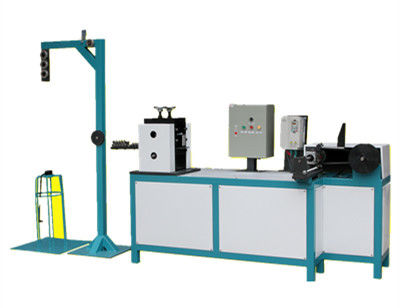

1. WIRE FLATTENING MACHINE
Usage and Features
There are two types of wire flattening machines we now provide:
1. VFD (Variable Frequency Drive) type;
2. Advanced type, VFD & internal water-cooled press rollers.
These machines are mainly applied to flatten wires made of mild steel wire, stainless steel wire, copper wire, aluminum wire, and high-tension steel wire.
Technical Specifications
| Diameter of press roller | ø150 or ø200mm |
| Wire flattening speed | 0~300M/Min. |
| Diameter of feeding wires | Ø 0.4~ø3mm |
| Precision | ± 0.01mm |
| Motor power |
1) ø150 Press Roller: -1 Stationery staple wire: 2.2Kw -2 brad nail wire: 3Kw; -3 Stitching wire: 5.5Kw. 2) ø200 Press Roller: 4Kw |
| Frequency Inverter |
US Emerson brand, 5.5KW, Model: EV1000-4T0055G |
| Dimensions (main machine) | L x W x H : 1800 x 700 x1300(mm) |
| Net weight | 1280Kg |
2. MULTI-WIRE JOINTING MACHINE
Usage and Features
The Wire Jointing Machine, Model: PXJ-150 we produce is mainly applied for producing wire strips and bands of brad nails,staples, the machine is to joint single wires together into strip or band material, so as to provide various kinds of bands for make-up(forming) machines.
3. F/T BRAD NAIL & STAPLE FORMERS
Usage and Features
The F/T brad nail former is a special kind of forming machine to make F type and T type brad nail strips. The formers are currently divided into two types, namely, nail strip sides’ uncontrolled and controlled.
With the integration of mechanical, hydraulic, pneumatic & computerized control system, these formers feature compact structure & exquisite appearance, high capacity, precise nail strip formation and a wide selection of nail sizes by changing some moulds and parts of moulds.
Technical Specifications
| Model | BNF-2 | BNF-3 |
| Max. Capacity |
100-120 strips/min. (50 - 100nails/strip) |
55-60 strips/min. (50 - 100nails/strip) |
| Brad nail specifications |
F10 - F30(F50);T32 - T50(T64) ( with brad nail strip shape-I ) |
F10 - F30(F50); T32 - T50 ( with brad nail strip shape-II ) |
| Motor power | 7.5kw | 11kw |
| No. of hydraulic cylinder | 2 | 3 |
|
Dimensions (L x W x H) |
2100 x 900 x 1500(mm) | 2100 x 1200 x 1500(mm) |
