Nail Making Dies, Nail Making Moulds, Tools, Matrix for ZD45-100

5 Pieces
MOQ
to be negotiated
Price
Nail Making Dies, Nail Making Moulds, Tools, Matrix for ZD45-100
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Nail Making Dies, Nail Making Moulds, Tools, Matrix For ZD45-100
Shaping Mode: Punching Mold
Product: Moulds
Product Material: Metal
Application: Machine Tool
After Warranty Service: Video Technical Support, Online Support, Spare Parts
High Light:

construction nail making machine Tools

,

Nail Making Dies Moulds

,

nail moulds

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Payment & Shipping Terms
Packaging Details: Carton/Stell Box/Plywood Case
Delivery Time: 1-5 Sets/20 Days; >5 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 1000 Pieces Per Month
Product Description

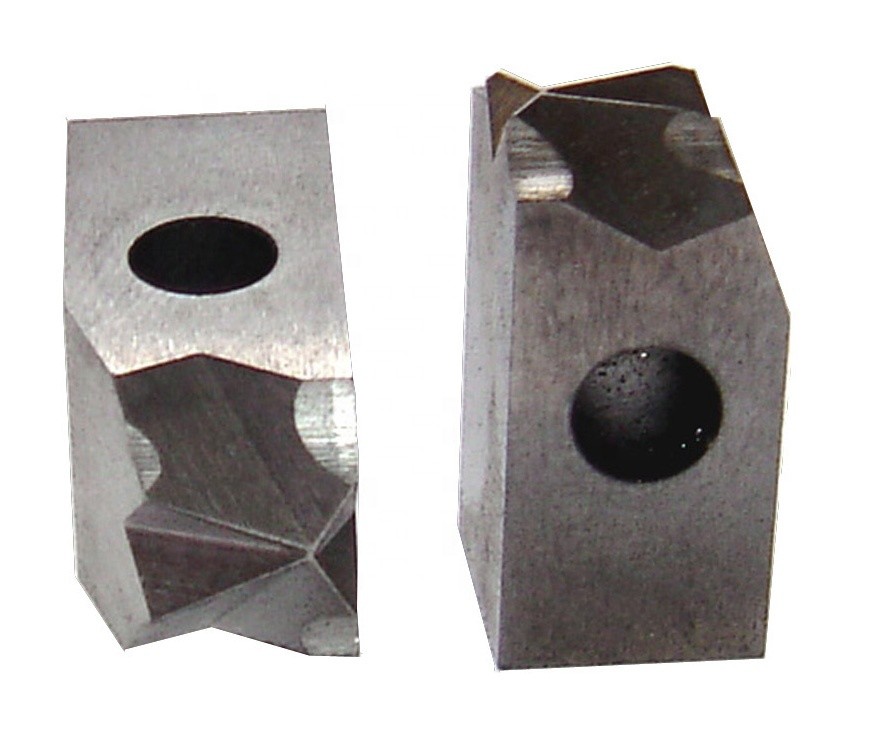

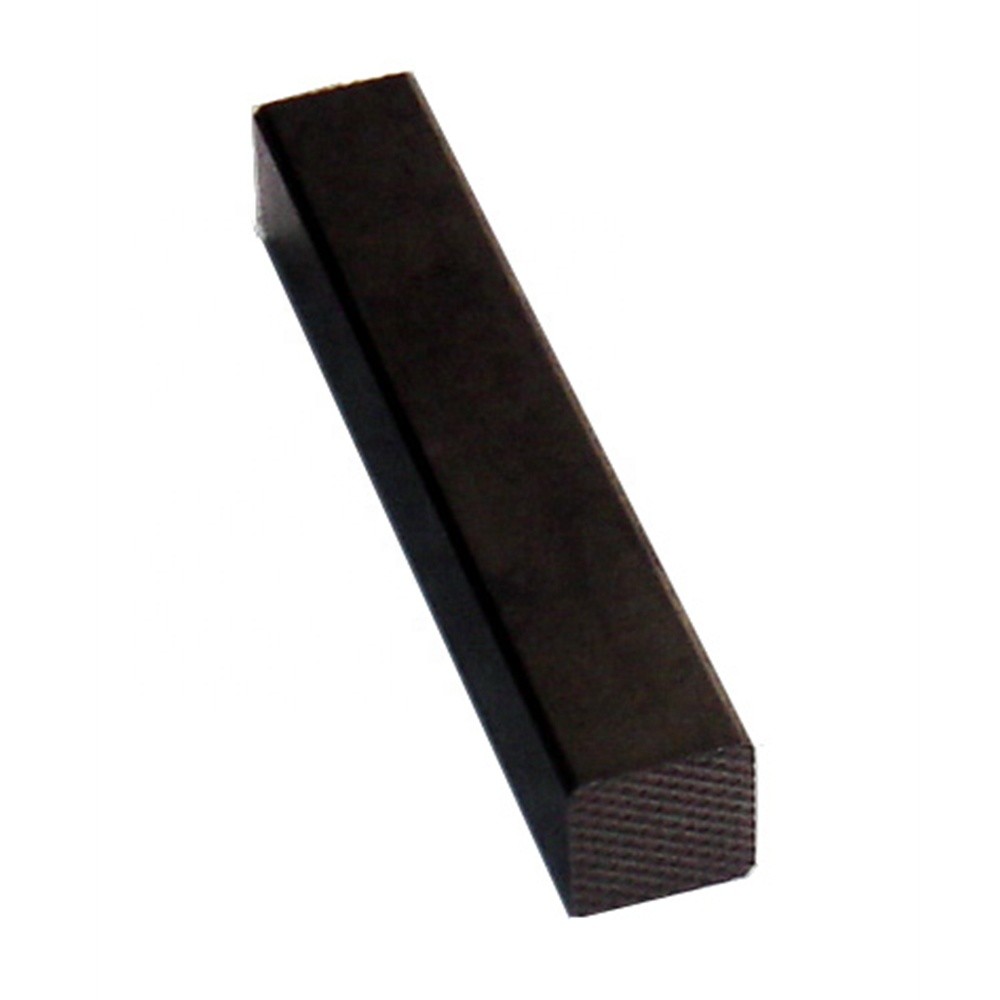

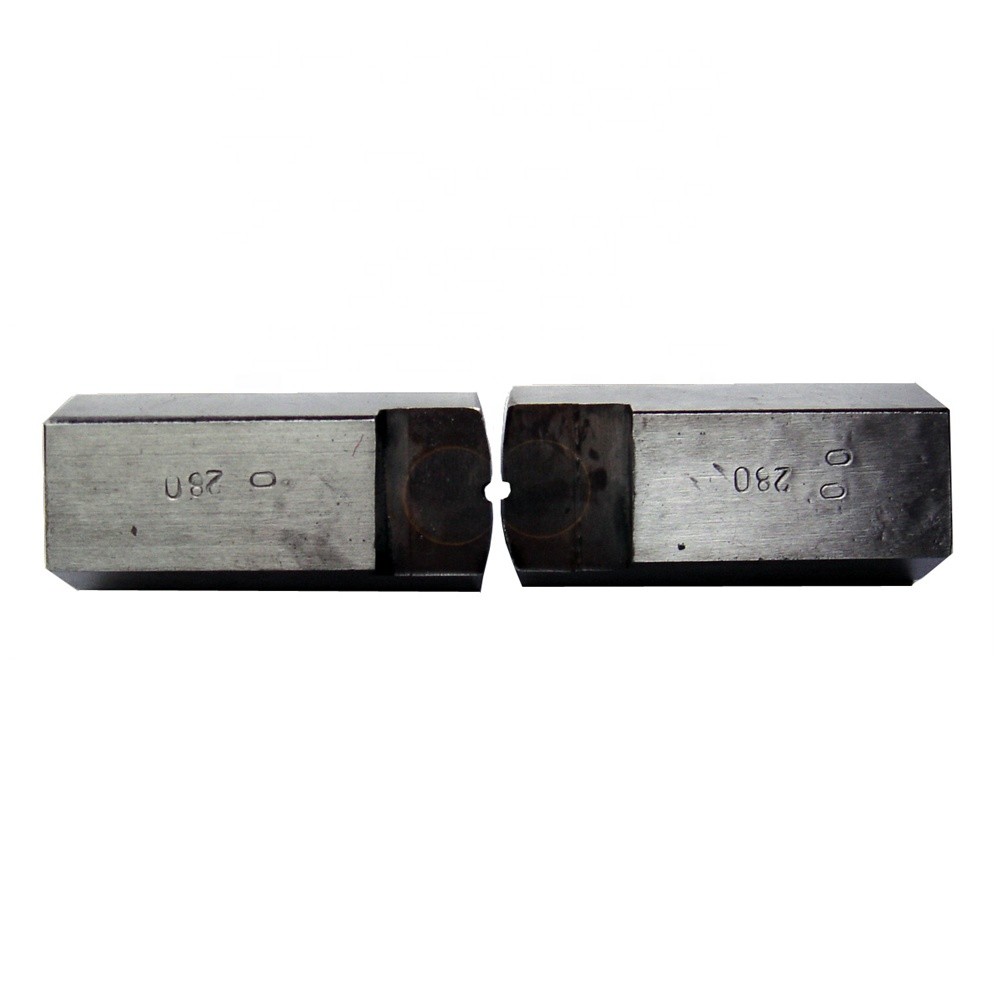

Nail Making Dies, Nail Making Moulds, Tools, Matrix​ for ZD45-100



Applicable for the european advanced type nail making machine as follows:



Technical data Model ZD20-65 ZD45-100
Dia. of nail (max.) mm 3.1 4.1
Dia. of nail (min.) mm 1.4 2.5
Length of nail (max.) mm 65 100
Length of nail (min.) mm 20 45
Designed capacity/speed pcs/min. 600-650 750-850
Motor power kw 4.5 ≤10
Weight(approx.)(main machine) kg 1300 3100
Overall dimensions(main machine) mm 1850x1100x1100 2900 x 1800 x 1250





Technical data Model Z94-1.6C Z94-2.8C Z94-3.4C Z94-4.5C Z94-5.5C Z94-6.5C
Dia. of nail (max.) mm 1.6 2.8 3.4 4.5 5.5 6.5
Dia. of nail (min.) mm 0.9 1.2 1.8 2.8 3.1 3.4
Length of nail (max.) mm 25 50 75 100 150 203-218
Length of nail (min.) mm 9 16 30 50 75 100
Designed capacity/speed pcs/min 460-550 320-350 300-320 250-280 180-220 160-220
Motor power kw 1.5 2.2 3 4 5.5 11
Weight (approx.) kg 1200 1450 1800 2000 2500 5500
Overall dimensions mm 1500x1300x1200 1700x1300x1400 2000x1400x1400 2200x1600x1650

2400x1700

x1650

3200x1850x1800



Nail Making Dies, Nail Making Moulds, Tools, Matrix for ZD45-100 0
