Cap Striking Machine For Roofing Nail Production

1 SET
MOQ
to be negotiated
Price
Cap Striking Machine For Roofing Nail Production
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Cap Striking Machine For Roofing Nail Production
Machine Type: Nail Making Machine
After-sales Service: Online Support, Field Installation, Commissioning And Training
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Warranty: 1 Year
Key Selling Points: Easy To Operate
Application: Domed Head Nail Production
Local Service Location: None
Highlight:

Domed Nail Head Press Machine 1.5KW

,

Roofing Nail Production Machine 1.5KW

,

nail press machinery 1.5KW
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: BJ23-16B BJ23-40
Payment & Shipping Terms
Packaging Details: Steel Pallet or Plywood Case under Request
Delivery Time: 1 Set/25 Days; ＞1 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Month
Product Description

Cap Striking Machine For Roofing Nail Production​

Features:

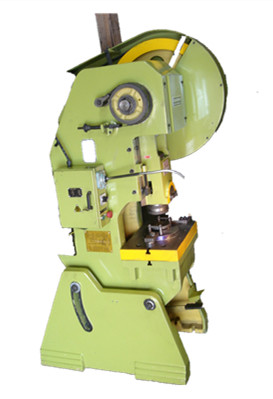

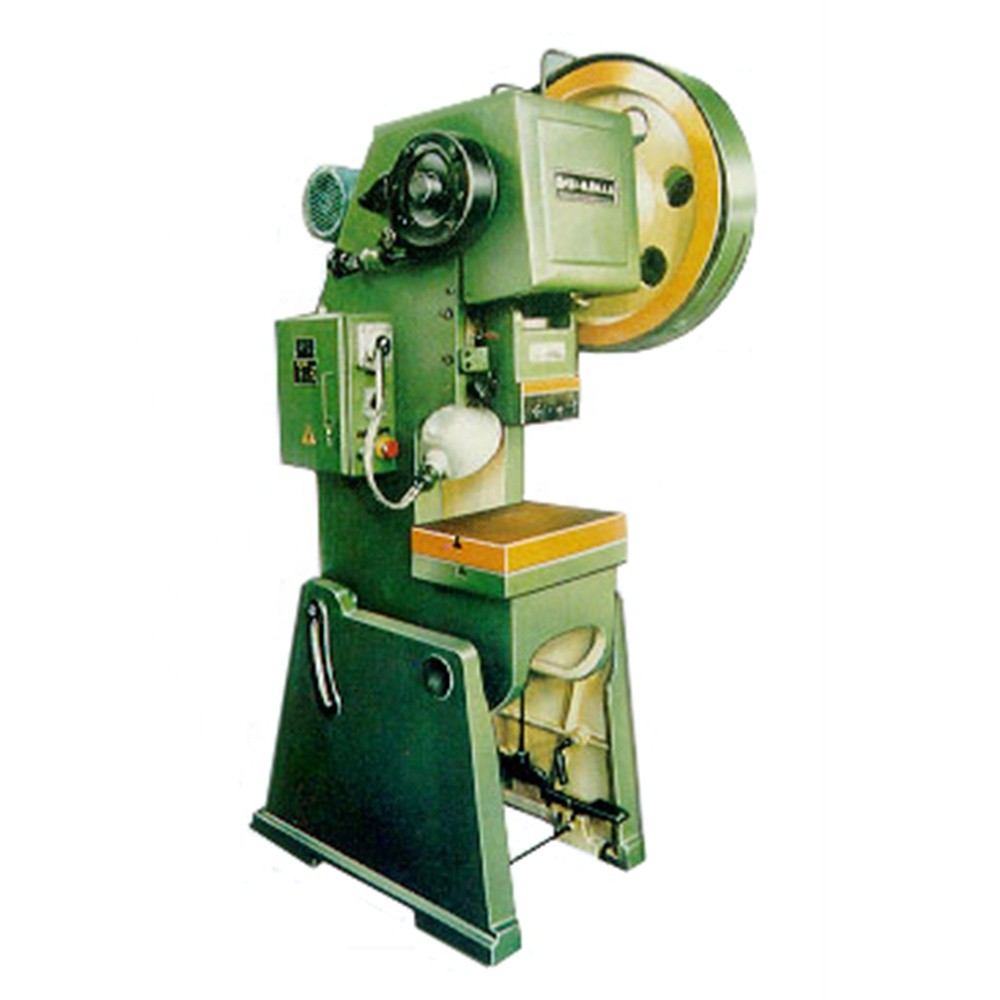

- Dies & die frame are not displayed in photo of the press machine
- Basic technical specifications: see table 2-2 - Position: the machine is horizontally set on the floor - Capacity for domed nail heads : 125pcs x 2/min - 2 domed nail heads are made in each stroke - The automatic air feeder is fixed above the worktable - The sizes of the steel strip applied in the feeder are suggested as follows:

Table 2-1
No. Dia. of domed head Width x Thickness
1 20mm 45 x 1.2mm
2 18mm 41 x 1.1mm
3 14mm 34 x 1.0mm


- Dies/moulds set for only one of above sizes is covered in seller’s price.


Table 2-2
Model And Descriptions Unit BJ23-16B BJ23-40
Nominal force KN 160 400
Slide block stroke mm 70 100
Number of stroke Min. 125*2(250) 55*5(275)
Max. die set height mm 170 220
Die set height adjustment mm 45 80
Distance from slide block centre to the frame mm 170 240
Worktable dimensions (W x L) mm 320 x 480 460x700
Hole dimensions in bed:
Dia. x Depth x Width		 mm Ø210 x 160 x 240 Ø150 x 320 x 270
Thickness of worktable mm 60 80
Sizes of slide block bottom (W x L) mm 180 x 200 x270
Sizes of the handle hole :
Dia. x Depth		 mm Ø40 x 60 Ø50 x 60
Max. tilting angle of body Deg. 25° 25°
Motor power (Type: Y2 100L-6) kw 1.5KW 4KW
Net weight(approx.) kg 1080 3400
Overall dimensions (L×W×H) mm 1150 x 900 x 1055 1500 x 1180 x 2300

Roofing Nail Production Flow:

Cap forming(Domed nail head press machine/cap former) → cap polishing(polishing machine) → roofing nail making(roofing nail making machine) → galvanizing(galvanizing equipment) → packing.
*Device for making twist/threaded roofing nails is available under request.

Roofing nail making machine, polishing machine and other machine and accessories are available.
