Plastic Strip Nail Collator

1 SET
MOQ
to be negotiated
Price
Plastic Strip Nail Collator
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Plastic Strip Nail Collator
Condition: New
Type: Advanced
Warranty: 1 Year
Key Selling Points: High-accuracy
Local Service Location: None
Showroom Location: South Korea
Machine Type: Nail Making Machine
Application: Plastic Nail Strip Collator
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant
High Light:

Coil Nail Collator 1000 pcs Min

,

Strip Coil Nail Collator

,

Plastic Strip Nail Collator

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: CE
Model Number: SPC-1
Payment & Shipping Terms
Packaging Details: Nude Package
Delivery Time: 1 Set/40 Days; >1 To Be Negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 200 Sets Per Month
Product Description

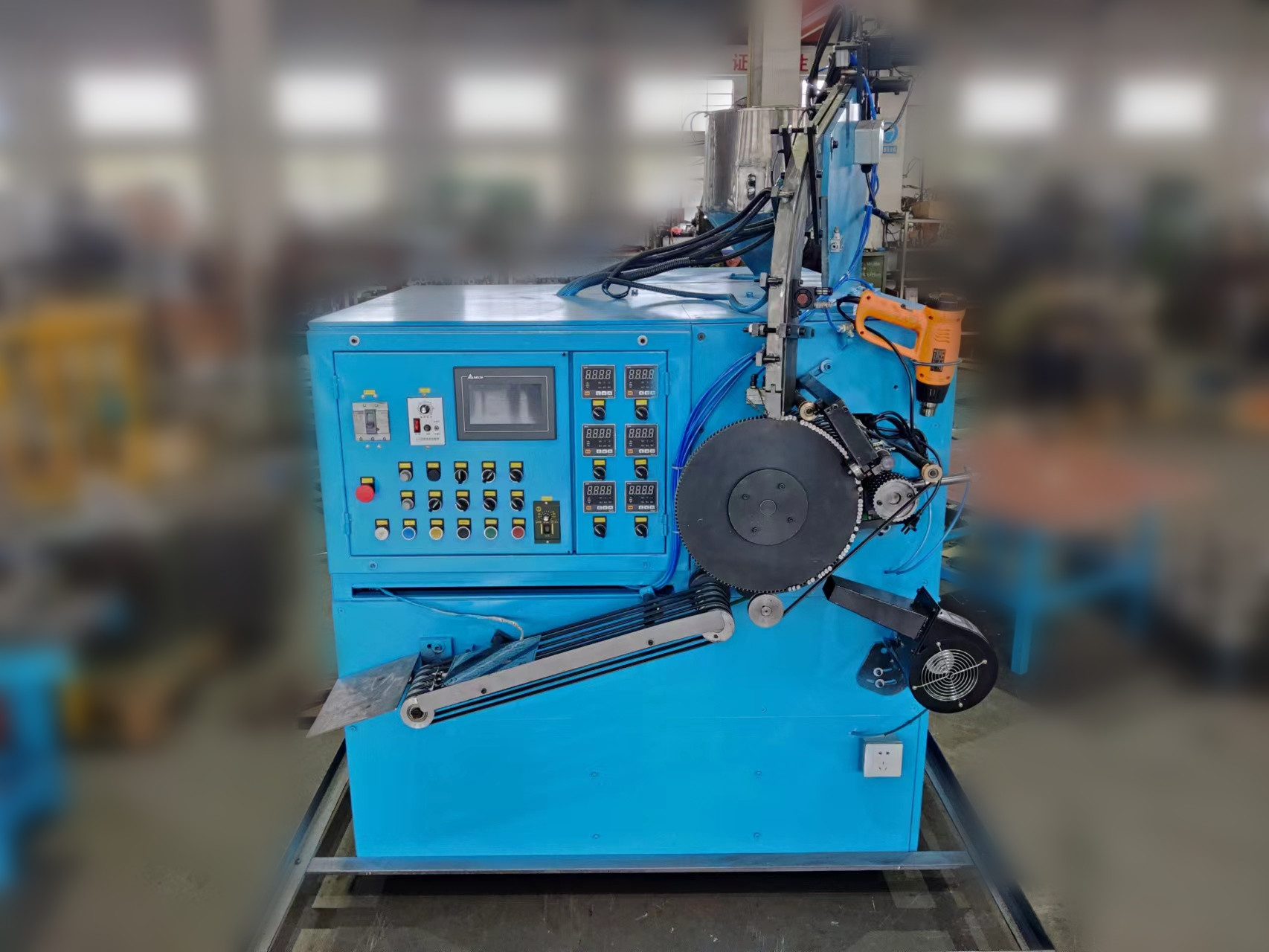

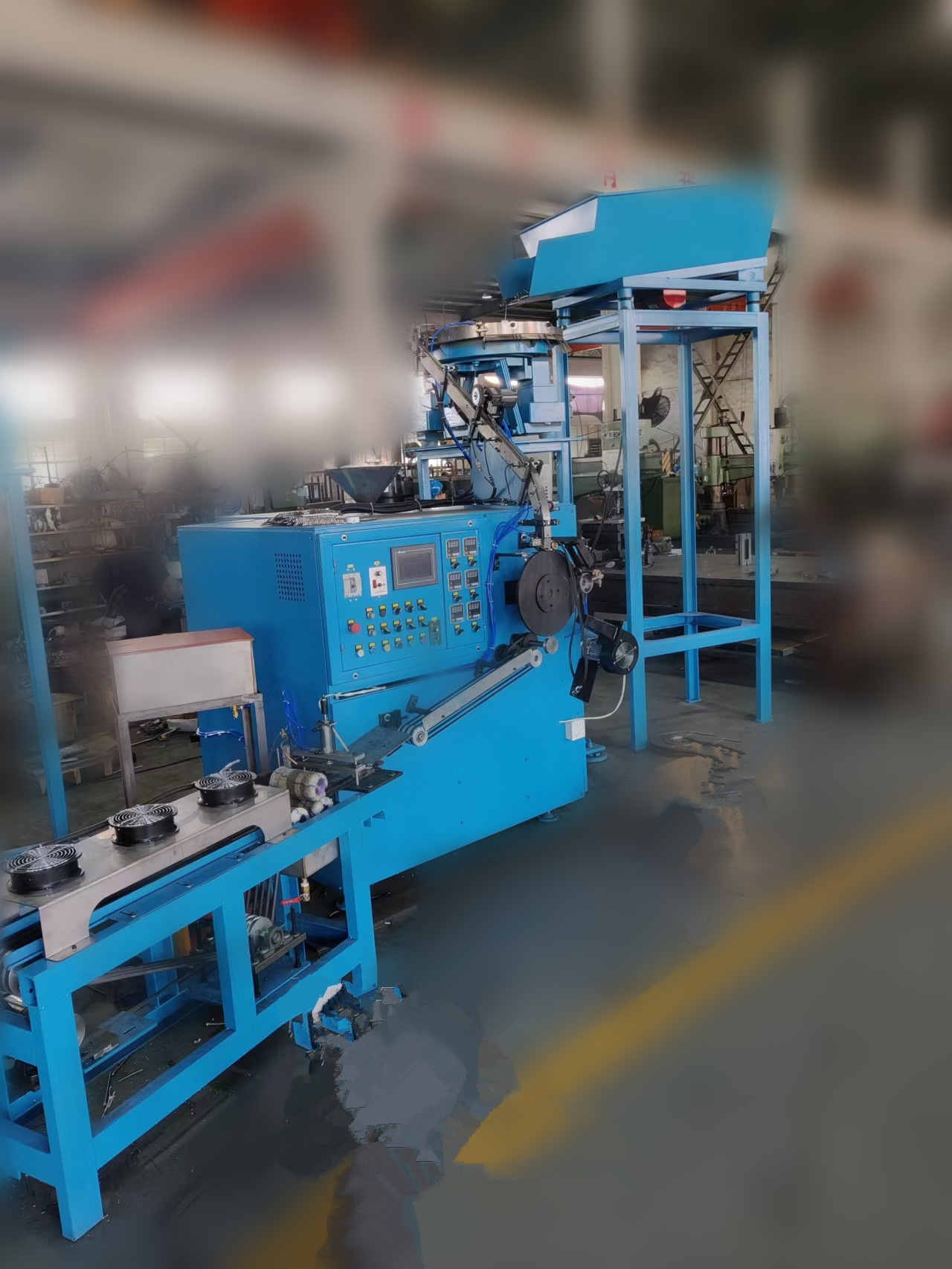

Plastic Strip Nail Collator


 Usage and Features

This plastic strip nail collator is a special kind of plastic strip collated nail machine. Combined the advantages of similar Taiwanese and Korean sources with our own unique technology, we successfully developed this quality-reliable, cost-effective, appearance-attractive and operation-easy product.

Nail collating speed 1000 nails /Min.
Applicable nail sizes Shank dia. Ø2.5mm - 4.0mm
Length 50 - 100mm
Strip Spec. Angle 21° Degree *
Nails per strip 28 nails
Material for plastic strip Reinforced PE
Power supply

AC 380V, 50Hz, 3-phase (upon request, others

available too, like: AC 220V, 60Hz, 3-phase)

Rated power

Approximately 13KW

(two motors, heating tubes & vibratory feeder )

Operating speed control 2 variable frequency inverters
Compressed air ≥ 4.5Kg/cm2
Net weight 1500kgs

Overall dimensions

( L x W x H )

2850 x 1520 x 2500 (mm)

* Other inclination angle is available upon request but needs purchasing more separate accessories.
