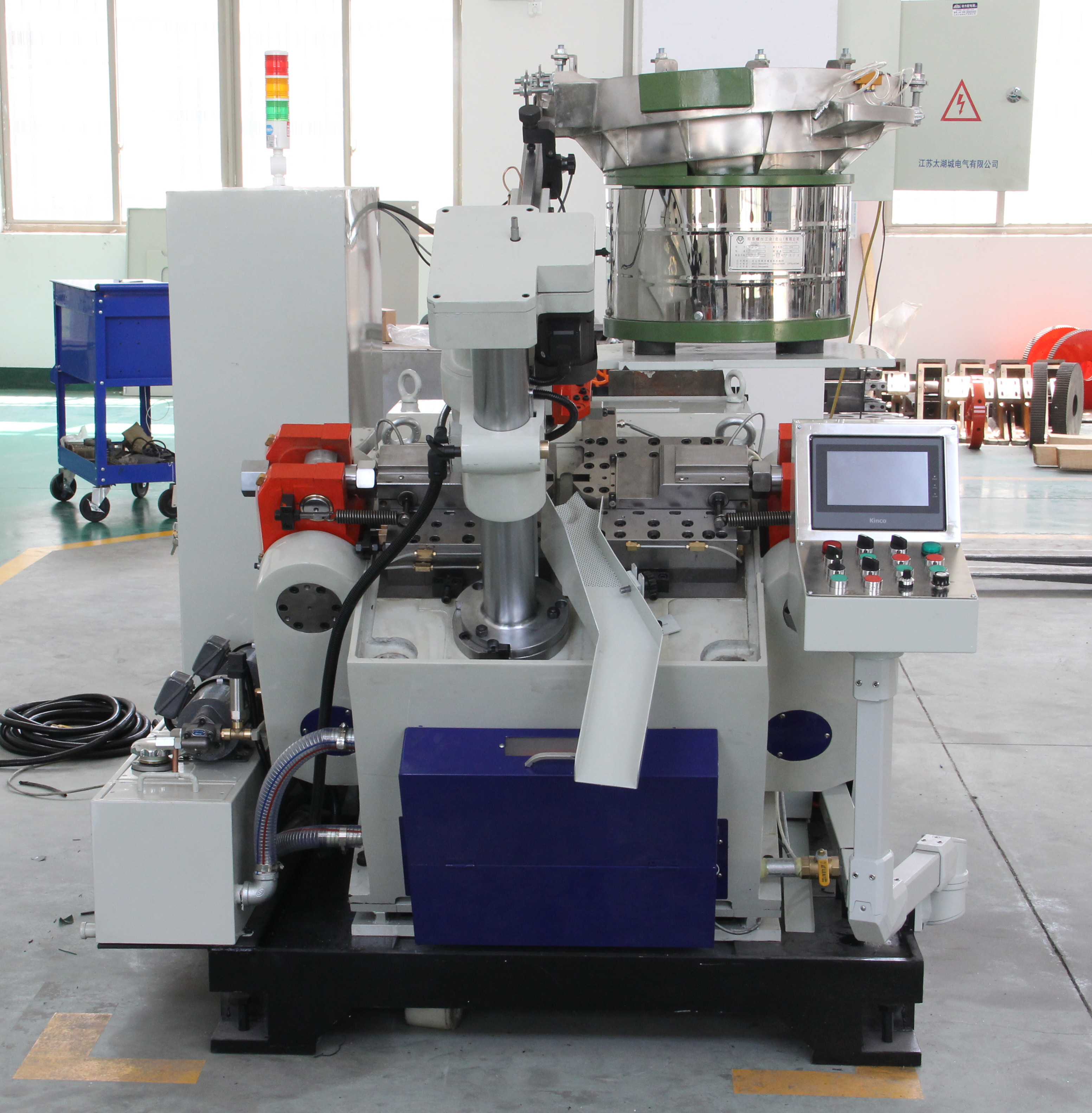

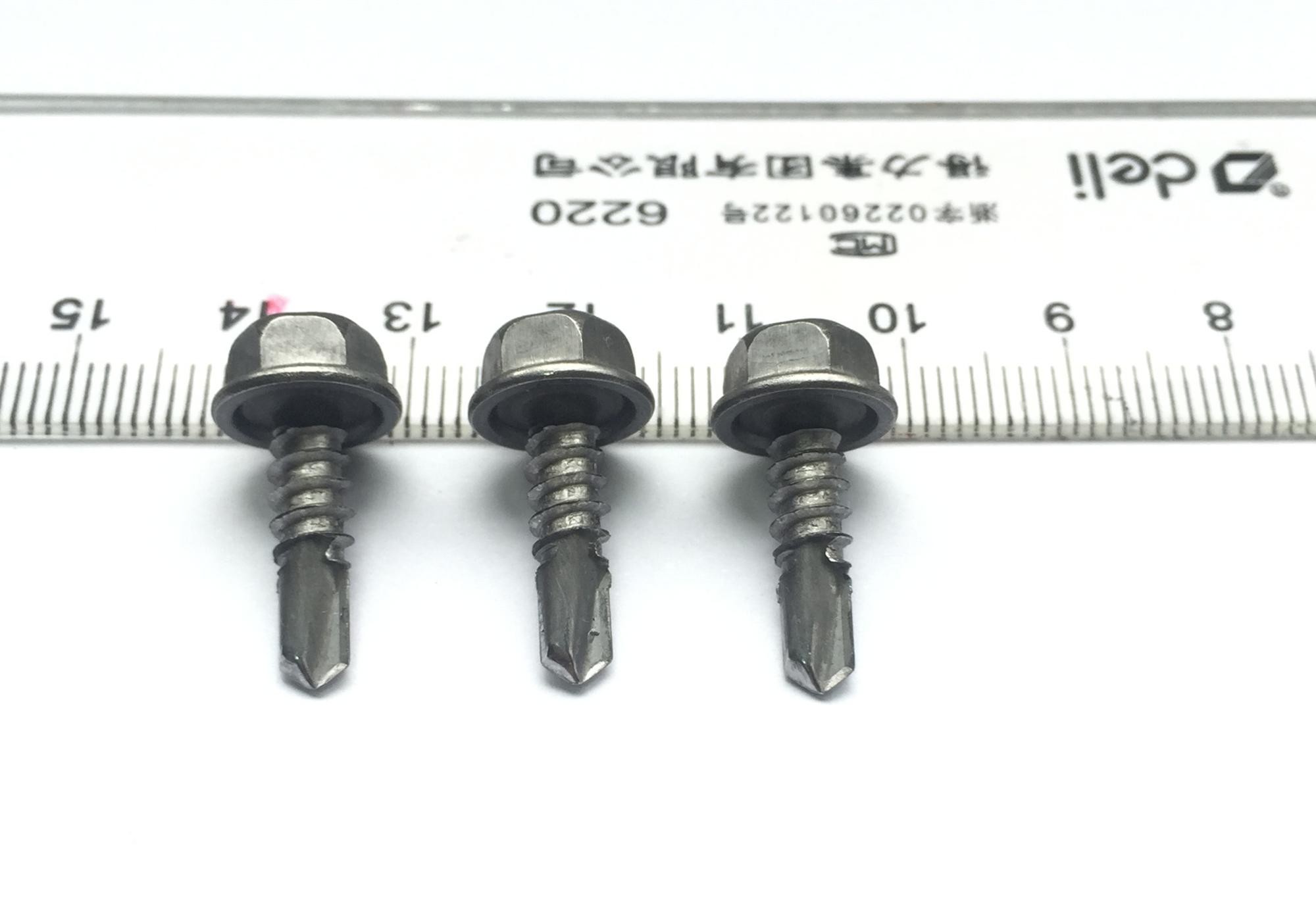

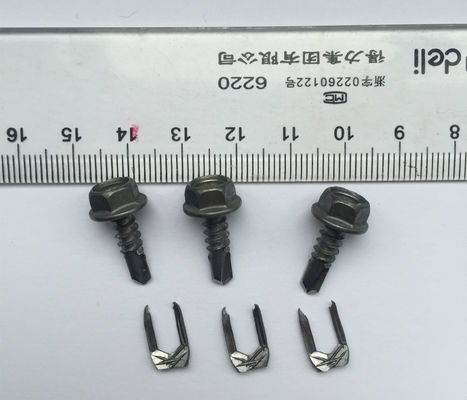

Drill Point, Self-drilling Screw Tip Forming Machine
- high-speed & high-precision cutting, low noise
- separate lubricating, oil-saving
- square sliding seat, stable & wear-resistant
- screen indicate displacement to 0.001mm
- suspended line slots, avoiding oil corrosion
- computer-controlling whole machine, simple
operation
| Model | Unit | SDS-5(S) | SDS-6(S) | SDS-8(S) |
| Blank dia. | mm | 2.8-5.0 | 2.8-6.0 | 3.9-8.0 |
| Screw length | mm | 10-150 | 10-200 | 10-200 |
| Designed capacity | pcs/min | 100-500 | 100-500 | 100-400 |
| Main motor | kw | 5.5 | 7.5 | 11 |
| Inverter | kw | 7.5 | 11 | 15 |
| Auto-action & detect controller | PLC & Touch Screen Man-machine Interface Fault Indication | |||
| Overall dimensions (L * W * H) | mm | 1900*1400*1800 | 1900*1500*1900 | 2200*1600*1700 |
| Weight(Approx.) | kg | 2300 | 2800 | 2850 |
