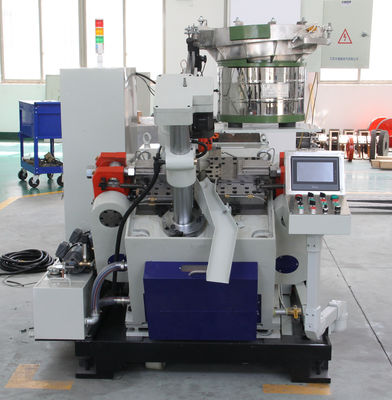

Self-Drilling Screw Making Machine for Self-drilling Screw Production, Tainwanese Type, Self-drilling Screw
Features

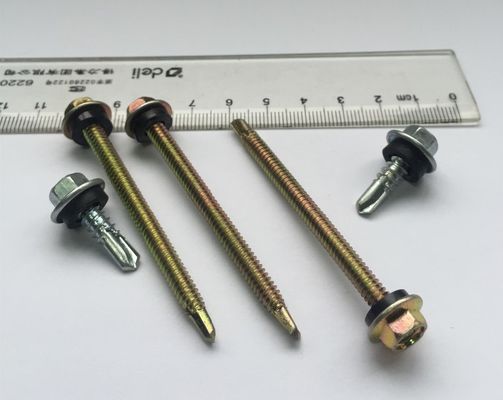

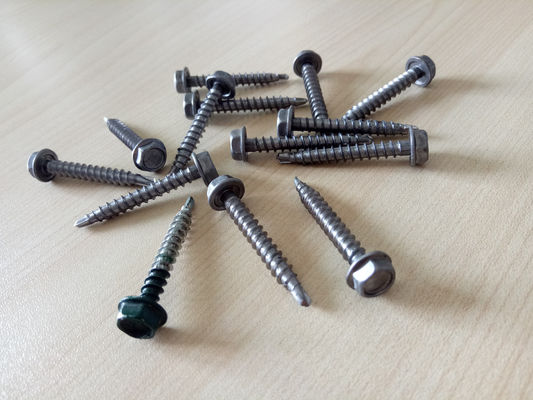

1. Designed for producing self-driling screw.
2. Curved surface design of the transmission cam prolongs screw pressing time and shortens idle-stroke time, not affecting normal operational cycle during processing, thus achieving excellent motion effects and extending the operating life of the screw die/mold.
3. Tainwanese type.
Technical Specifications
| Technical data | SDS-5 | SDS-6 | SDS-8 |
| Max. blank dia./length (mm) | Φ2.8-5.2 / 9.5-125 | Φ2.8-6.0 / 9.5-150 | Φ2.8-7.0 / 10-200 |
| Capacity range (pcs/min) | 120-450 | 120-520 | 45-250 |

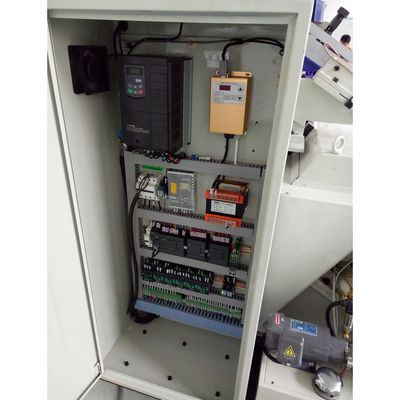

| Control | PLC/LED | PLC/LED | PLC/LED |
| Dimensions (L*W*H)(mm) | 1900x1400x1600 | 1900x1500x1800 | 850x1950x1850 |
| Weight(kg) | 2200 | 2500 | 3500 |
