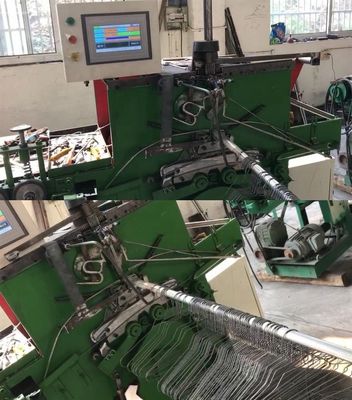

| SPECIFICATIONS FOR QK-3 Wire Hanger Making Machine | |
| Model: QK-3 |
QK-3-A: with normal wire payoff QK-3-B: with motor-driven wire payoff |
| Process Length Rating | 13", 14", 15", 16", 18" |
| Capacity | 1650~2000pcs/hr. |
| PLC & Touch screen |
set and display all data required such as hanger's length, capacity, feed(return), self-stop and count, etc. |
| Materials(for wire hangers) |
galvanised steel wire or bright steel wire wire dia. range: 1.8~2.8mm |
| Motor of main machine | 1.5KW(380V, 50Hz, 3-phase) |
| Servo motor power | 1KW |
| Frequency inverters |
2.2KW for main machine 1.5KW for motor-driven wire payoff |
| Overall dimensions |
for main machine: 1950*800*1550mm for motorized wire payoff: 100*1200*900mm |
- Fully PLC & inverters’ control on all steps of wire hanger fabrication.
- Highly accurate feed of steel wire materials to ensure the uniform sizes of top quality hangers
- Easier operation with touch screen makes a higher efficiency and productivity.
- Sensitive detection and swift emergency stop ensure less material consumption.
Certifications
CO, CE, CIQ and any other certifications can be provided under request.
