Features
1. Automatic hanger fabrication with higher capacity
2. Automatic detecting sensor for emergency stop
3. Easy operation and simple maintenance
4. Durable dies and lower operation cost
Technical Specifications
Model | QK-2 | QK-2(S) |
QK-3 (PLC & inverter type) |
Hanger size | 13”, 14”, 15”, 16”, 18” | ||
Capacity | 27-30pcs/min. | ||
Material |
Plain steel wire Wire size range: Ø1.8mm – Ø2.8mm |
Galvanised steel wire or bright steel wire Wire size range: Ø1.8mm – Ø2.8mm |
|
Motor power |
1.5KW (380V, 50Hz, 3-phase) 3KW (220V, 60Hz, 1-phase) |
||
Servo motor power | - | 1KW | |
Hanger structure | To the basic types or as per the user’s samples |

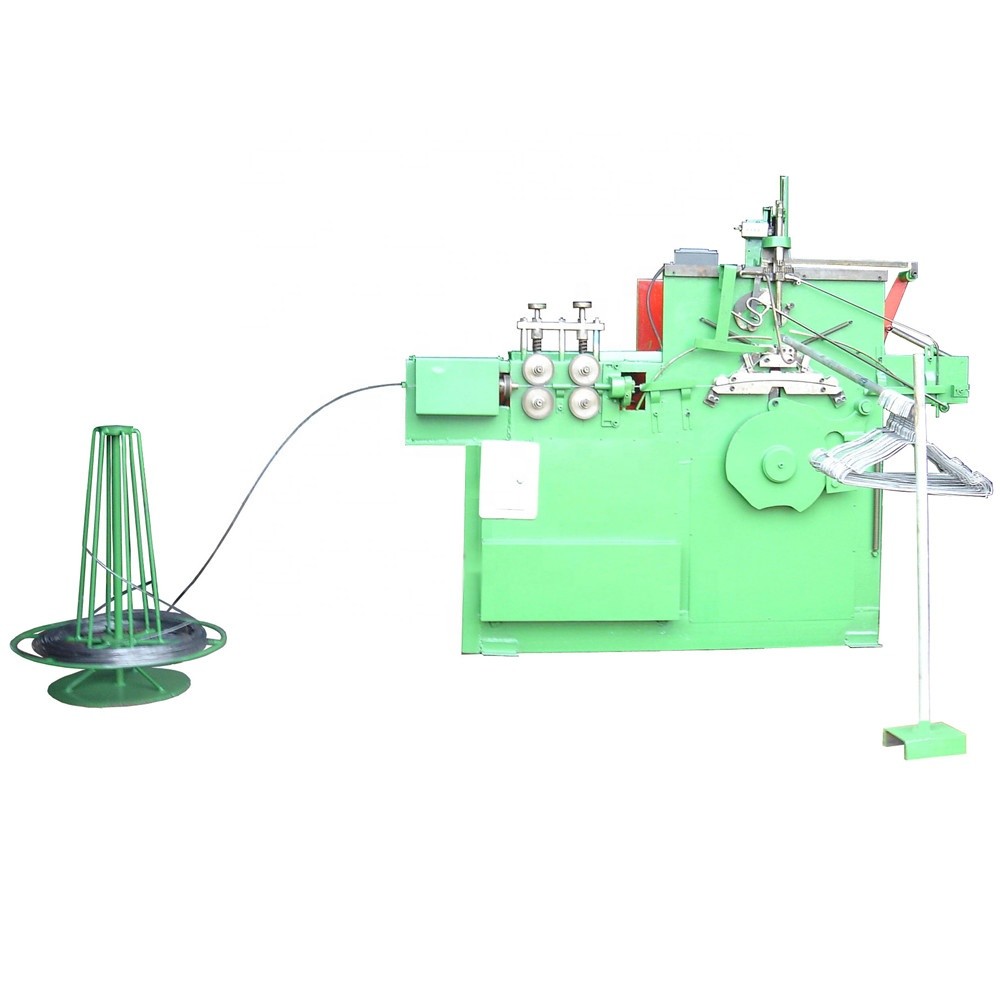

Provided with user's hanger photo/drawing/sample, the automatic hanger making machine
will be adjusted to make the exact hanger size & shape.
Hanger shapes for reference:
Wire hanger's electrostatic powder coating plant is available too!
