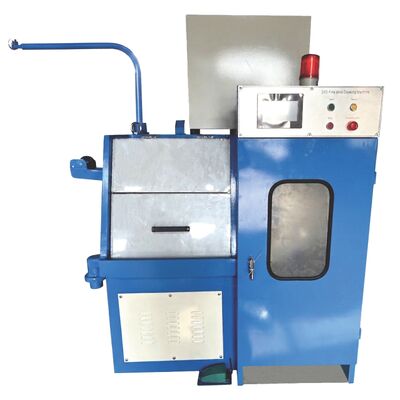

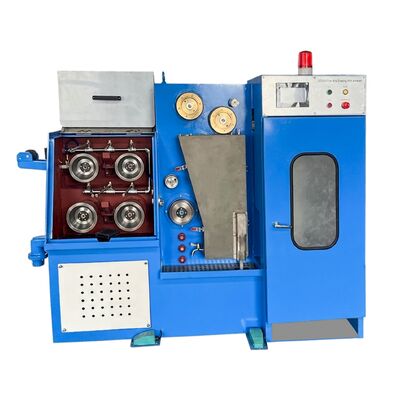

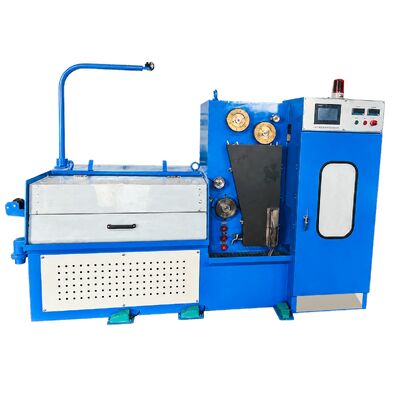

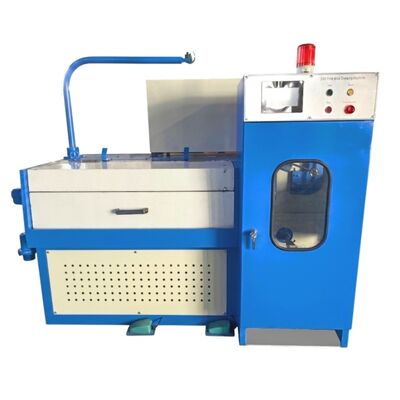

24DT Vertical Type Copper Wire Continuous Annealing and Drawing Machine

Power Control: Dual Inverter Control

Inlet Dia. (mm): Max. 1.2mm

Outlet Dia. (mm): 0.1-0.4mm

Max Die No.: 24

Max Line Speed: 2000m/min

Frame Structure: Iron Cast

Drawing Capstan: Ceramic Sprayed Capstan

Mechanical Reduction Rate: 13%

Surface Reduction Rate of Fixed Speed Wheel: 8%

Drawing Motor Power: 15KW

Take up Motor Power: 3.7KW

Transmission Type: By Flat Belt

Take Up Bobbin Size: D300

Traversing Type: Synchronous Motor + Belt

Take Up Type: Jacking Screw Pressing Type

Tempering wheel dia.: 160mm

Tempering voltage: DC0~60V

Tempering electric currency: DC0~300A

Tension Control: Weight Balance Type

Lubrication Type: Spray

Brake: Electromagnetic Type

Weight: 2800KG

Wuxi Tripod Machinery Imp. & Exp. Co., Ltd. specializes in metal wire processing machinery, offering automatic copper, steel wire drawing, and galvanizing equipment. With 15 years of experience, the company exports to Southeast Asia, the Middle East, and Africa, providing installation, commissioning, and after-sales service. It operates advanced facilities with reliable quality and innovative designs.
