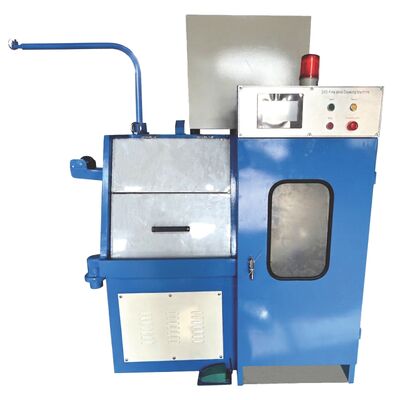

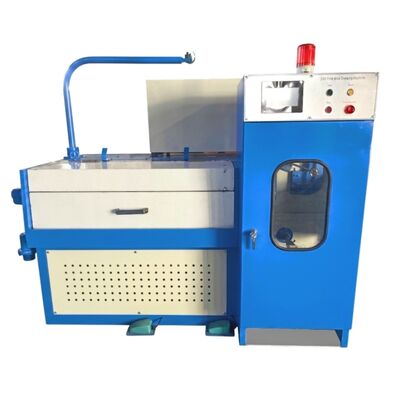

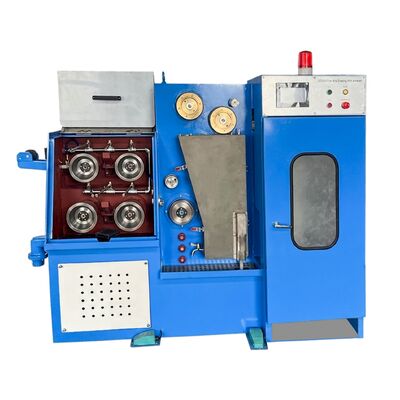

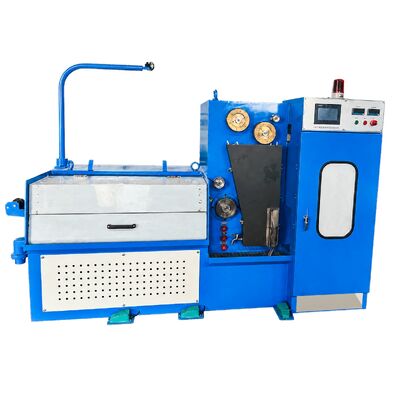

24D Vertical Type Copper Wire Fine Drawing Machine

Power Control: Dual Inverter Control

Inlet Dia. (mm): Max. 1.0mm

Outlet Dia. (mm): 0.08-0.25mm

Max Die No.: 24

Max Line Speed: 2500m/min

Frame Structure: Iron Cast

Drawing Capstan: Ceramic Sprayed Capstan

Mechanical Reduction Rate: 13%

Surface Reduction Rate of Fixed Speed Wheel: 8%

Main Motor Power: 11KW

Take up Motor Power: 3.7KW

Transmission Type: By Flat Belt

Take Up Bobbin Size: D300

Traversing Type: Synchronous Motor + Belt

Take Up Type: Jacking Screw Pressing Type

Tension Control: Weight Balance Type

Lubrication Type: Spray

Brake: Electromagnetic Type

Dimensions: 2000 x 1600 x 1900mm (L x W x H)

Wuxi Tripod Machinery Imp. & Exp. Co., Ltd. specializes in metal wire processing machinery, offering automatic copper, steel wire drawing, and galvanizing equipment. With 15 years of experience, the company exports to Southeast Asia, the Middle East, and Africa, providing installation, commissioning, and after-sales service. It operates advanced facilities with reliable quality and innovative designs.
