Pulley Type Wire Drawing Machine with 6.5mm Inlet Diameter 18KW Power and One Year Warranty

1
MOQ
Pulley Type Wire Drawing Machine with 6.5mm Inlet Diameter 18KW Power and One Year Warranty
Features Gallery Product Description Request A Quote
Features
Specifications
Inlet Diameter: 6.5~2.5mm
Outlet Diameter: 2.5~0.75mm
Voltage: 380/415/440/220
Power: 11KW~18KW
Dimension: 1520x810x1700mm
Weight: 1500kgs
Pulley Type: OTO
Max Drawing Pass: 1 - 10
Tensile Strength: >110 Kg/mm2
Max Wire Rod Dia: 6.5mm
Min Finished Wire Dia: 0.75mm
Max Reduction Percent: 30%
Designed Reduction Percent: 78-88.5%
Max Block Speed: 245 M/min
Total Power Range: 7.5-30 Kw
Highlight:

6.5mm Inlet Diameter Wire Drawing Machine

,

18KW Power Wire Drawing Machine

,

One Year Warranty Wire Drawing Machine
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Certification: as per customer's request
Payment & Shipping Terms
Product Description

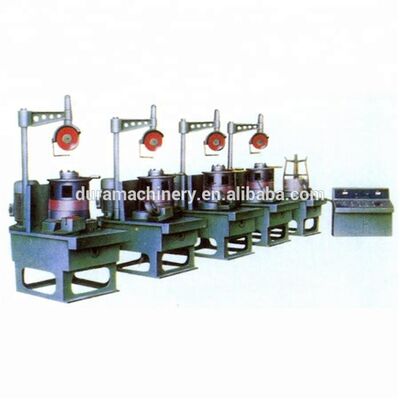

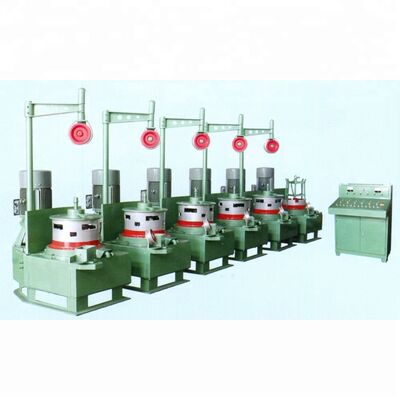

Wire Drawing Machine, Pully/OTO Type
Wire Drawing Machine For Making Nail
Usage
This pulley or OTO type wire drawing machine is an ideal equipment for drawing steel wire material of high, medium and low carbon steel, as well as copper, aluminum and alloy wire. These machines are widely applied in factories for nail, screw and rivet manufacturing.
Technical Specifications
Item Unit Continuous Multi-block Type
Model LW-n/560 | LW-n/450 | LW-n/350
Max. drawing pass (n) n: 1 - 10 | n: 1 - 8 | n: 1 - 8
Tensile strength of wire rod Kg/mm² >110 | 128 | >140
Max. dia. of wire rod mm 6.5 | 3.4 | 2.5
Min. dia. of finished wire mm 2.5 | 1 | 0.75
Typical configuration -- LW1-6/560 | LW1-7/450 | LW1-6/350
Max. average reduction percent % 30 | 20 | 21
Designed total reduction percent % 78-88.5 | 77.9 | 78
Max. speed of block m/min. 245 (block 6) | 346.9 (block 7) | 200 (block 6)
Total power kw 18.5-30 | 7.5-11 | 7.5-11
Weight kg 2000 | 1500 | 1000
Overall dimensions (L*W*H) mm 1700x1150x1750 | 1520x810x1700 | 1400x800x1500
Tag:

wet type wire drawing machine

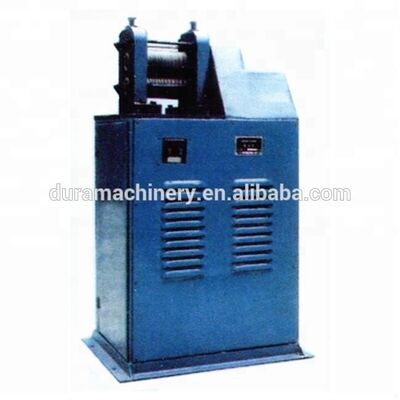

Wire Drawing Pointing Machine
