Features

Specifications

Inlet Diameter: 8

Outlet Diameter: 0.8

Voltage: 380/415/440/220

Power: 7.5~110KW

Weight: 2000

Reel Diameter: 900/800/700/560/400 Mm

Drawing Passes: 9/9/9/10/10

Wire Speed: 300/360/480/720/840 M/min

Tensile Strength: ≤1300 Mpa

Total Reduction: 87.24~90.12%

Average Reduction: 18.42~21.00%

Motor Power: 110~7.5 KW

Core Components: Gear, Gearbox, Bearing

Cooling Method: Water & Air Cooling

Control System: SIEMENS PLC

Highlight:

Long Service Life Wire Drawing Machine

Human Computer Interaction Wire Drawing Machine

High Automation Straight-line Wire Drawing Machine

Basic Infomation

Place of Origin: Jiangsu, China

Brand Name: DURA

Payment & Shipping Terms

Gallery

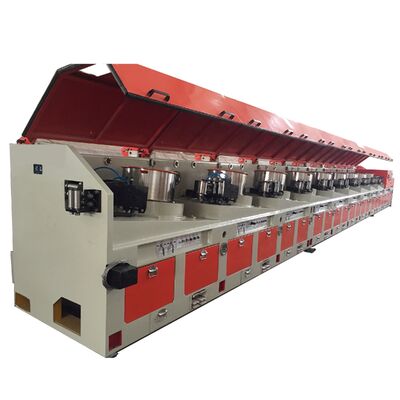

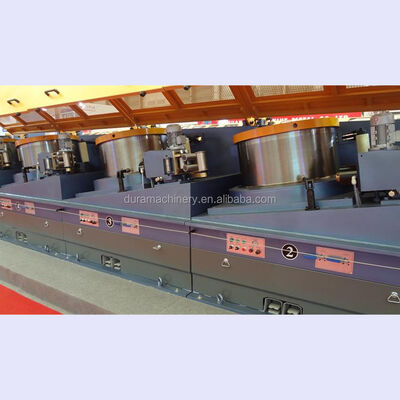

Straight-line Wire Drawing Machine with Long Service Life, Human Computer Interaction (HMI), and High Automation for Industrial Use

Product Description

Straight-line Type Wire Drawing Machine

Product Overview

Our straight-line wire drawing machine incorporates advanced foreign technology to deliver superior performance for drawing steel wire with high tensile strength. This equipment is specifically designed for producing tire cords, bead wires, steel rope wire, stainless steel wires, and CO₂ gas shield welding wires.

Advanced Features & Technology

Human Computer Interface (HMI) for intuitive operation
Motor overheat protection system
Abnormal water pressure monitoring
Length counting and preset length alarm
Breakdown display for quick diagnostics
Advanced cooling system combining narrow seam water cooling with air blowing
SIEMENS PLC and AC Variable Frequency Inverters for precision control
High efficiency with easy operation and automation
Wide technical range for versatile applications

Technical Specifications

Items	Unit	LZ9/900	LZ9/800	LZ9/700	LZ10/560	LZ10/400
Reel diameter	mm	900	800	700	560	400
Number of drawing passes	n	9	9	9	10	10
Inlet diameter	mm	14~8	10~8	8~6.5	6.5~5.5	3.5~2.5
Outlet diameter	mm	5~3	5~3	3~2.5	2~1.8	1.1~0.8
Wire drawing speed	m/min	300	360	480	720	840
Tensile strength	Mpa	≤1300	≤1300	≤1300	≤1300	≤1300
Total percent reduction	%	87.24~85.94	84.00~85.94	85.94~85.21	90.53~89.29	90.12
Average percent reduction of area	%	20.48~19.58	18.42~19.58	19.58~19.13	21.00~20.02	20.50
Motor power range	KW	110~90	90~55	75~55	37~22	15~7.5

Customer Support Services

Pre-Sales Services

Inquiry and consulting support
Sample testing assistance
Factory viewing opportunities

After-Sales Services

Machine installation training
Comprehensive operational training
Overseas engineering support
