DURA Well Pit Type Electric Annealing Furnace with 500kg/h Capacity 850 Working Temperature and Long Service Life

1
MOQ
$20,000
Price
DURA Well Pit Type Electric Annealing Furnace with 500kg/h Capacity 850 Working Temperature and Long Service Life
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage: 380 V
Dimensions: 1500*1500*2000
Weight: 2000 T
Working Temperature: 850 ℃
Capacity: 500 Kg/h
Material: Steel
Motor Power: 75 KW
Rated Temperature: 950 °C
Loading Size: Ø 800 X 1200
Resistor Material: Cr20Ni80 Nickel-chromium Alloy
Type: Pit Type
Model: WAF Series
Core Components: Pressure Vessel
Usage: Heat Treatment Furnace
Heating Type: Electric Heating
Highlight:

500kg/h Capacity Electric Annealing Furnace

,

850 Working Temperature Pit Type Annealing Furnace

,

Long Service Life Industrial Furnace
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: DURA
Payment & Shipping Terms
Product Description

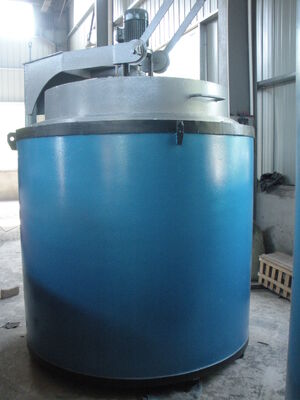

DURA Well Pit Type Electric Annealing Furnace
Industrial Annealing Solutions
Professional pit type electric annealing furnace with 500kg/h capacity, 380V operation, and 850°C working temperature for industrial heat treatment applications.
Medium Temperature Applications
Ideal for bright annealing or non-bright annealing treatments of various ferrous metal materials including:
  • Steel strips and wires
  • Silicon steel sheets
  • Scroll iron cores
  • Gas-protected welding sticks
Model Motor Power (KW) Rated Temperature (°C) Loading Size of Pot (mm)
WAF-75-9 75 950 Ø 800 x 1200
WAF-90-9 90 950 Ø 800 x 1500
WAF-120-9 120 950 Ø 1000 x 1500
WAF-150-9 150 950 Ø 1000 x 1800
Low Temperature Applications
Designed for bright annealing of nonferrous metal materials including:
  • Copper and aluminum wires
  • Copper and aluminum strips
  • Copper and aluminum pipes
Model Motor Power (KW) Rated Temperature (°C) Loading Size of Pot (mm)
WAF-45-6 45 650 Ø 700 x 1200
WAF-60-6 60 650 Ø 800 x 1200
WAF-75-6 75 650 Ø 800 x 1500

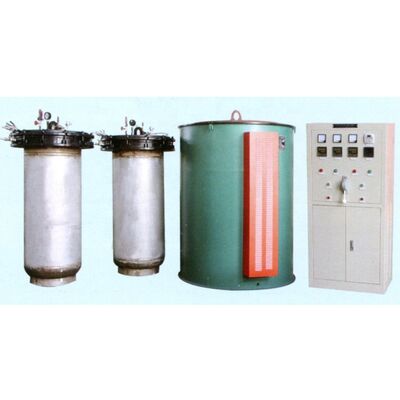

Energy-Saving Furnace Pot
DURA Well Pit Type Electric Annealing Furnace with 500kg/h Capacity 850 Working Temperature and Long Service Life 0
Key Features
  • Unique energy-saving furnace pot structure with Cr20Ni80 nickel-chromium alloy resistor strips
  • M-shaped coil design replaces traditional Fe-Cr-A1 resistor wire
  • Enhanced directional heat radiation for superior energy efficiency
  • Durable resistor bands with 3-year lifespan guarantee
