Features

Specifications

Machine Type: Cold Forging Machine

Motor Power: 5.5-30KW

Max. Ball Diameter: 5-14mm

Min. Ball Diameter: 2.5-7.5mm

Rated Output: 350-700pcs/min

Weight: 3700-11500kg

Noise Level: Low

Model Variants: ZS32-5, ZS32-8, ZS32-11, ZS32-14

Highlight:

High-Accuracy Steel Ball Making Machine

5.5-30KW Motor Power Cold Forging Machine

Cold Forging Steel Ball Production Equipment

Basic Infomation

Place of Origin: Jiangsu, China

Payment & Shipping Terms

Packaging Details: Nude or plywood case.

Delivery Time: 30~60days.

Supply Ability: 50pcs/year

Gallery

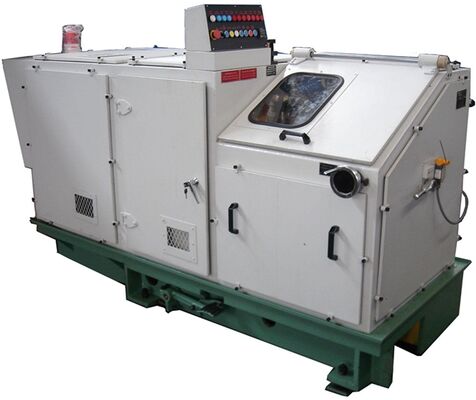

Steel Ball Making Machine equipped with advanced structure for precise steel ball manufacturing and low noise operation

Product Description

High Quality Steel Ball Making Machine of Modern Design, Advanced Type

This advanced steel ball making machine is engineered to manufacture high-quality ball blanks with precision and efficiency. Featuring a newly-designed structure, it delivers exceptional performance with minimal pressing deviation, low noise operation, excellent accuracy maintenance, and high material utilization ratio. The machine requires no foot screws for installation.

Technical Specifications

Model	ZS32-5	ZS32-8	ZS32-11	ZS32-14
Max. Dia. of Steel-ball (mm)	5	8	11	14
Min. Dia. of Steel-ball (mm)	2.5	3.5	5	7.5
Rated Output (pcs/min)	700	600	420	350
Motor Power (kw)	5.5	11	30	30
Weight (kg)	3700	4200	11500	11500
Overall Dimensions (LWH)(mm)	2600x998x1628	2850x1080x1685	5000x1700x2200	5000x1700x2200

Customer Support Services

Pre-Sales Service

Inquiry and consulting support
Sample testing support
Factory viewing opportunities

After-Sales Service

Comprehensive machine installation training
Complete machine operation training
Overseas engineering service support
