6.5mm Diameter Intermediate Dry Ss Wire Drawing Machine

1 SET

MOQ

to be negotiated

Price

6.5mm Diameter Intermediate Dry Ss Wire Drawing Machine

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Pulley Type Wire Drawing Machines

Outlet Diameter: 2.5~6.5mm

Power: 11~18KW

Weight: 1500kgs

Type: Dry Type

Inlet Diameter: 0.75~2.5mm

Voltage: 380/415/440/220

Dimension(L*W*H): 1520x810x1700mm

Pulley: OTO

Usage: Wire Drawing/Wire Processing

Highlight:

6.5mm dry wire drawing machine

,

Intermediate dry wire drawing machine

,

6.5mm ss wire drawing machine

Basic Infomation

Place of Origin: Jiangsu, China

Brand Name: DURA

Certification: CE

Model Number: LW-560, LW-450, LW-350

Payment & Shipping Terms

Packaging Details: Nude Package or Steel Pallet Under Request

Delivery Time: 1-10 Sets/25 Days; ＞10 To Be Negotiated

Payment Terms: L/C, D/P, T/T

Supply Ability: 100 Sets Per Month

Gallery

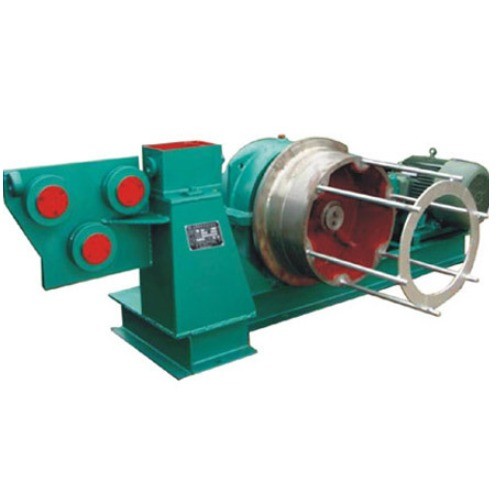

6.5mm Diameter Intermediate Dry Ss Wire Drawing Machine

Product Description

Pulley Type Wire Drawing Machine for Nail Making

1. Usage This Kind of machine is an ideal equipment applied to draw high-, medium- and low-carbon steel wire, as well as copper, alumium and alloy wire, the machine is applied to draw wires in nail, screw and rivet making factories etc.

2. Structure The equipment consists of main reduction box, die casing, wheel frame, wire brace and electrical control system. The spinning drawing blocks are driven by JZT or Y series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body, the gear pair are lubricated with oil. In order to lower residual heat on the surface of the block, the cooling device is installed in inter-wall of the block.

3. The machine runs with carwl or linkage. The safety halt gear is installed by the position of operation block.

4. Technical specifications:


			Item

			Continuous Multi-block Type


			Model
			Unit
			LW- n/ 560
			LW-n/450
			LW-n/350


			Max. drawing pass (n)

			n: 1 - 10
			n: 1 – 8
			n: 1- 8


			Tensile strength of wire rod
			Kg/mm²
			>110
			128
			>140


			Max. dia. of wire rod
			mm
			6.5
			3.4
			2.5


			Min. dia. of finished wire
			mm
			2.5
			1
			0.75


			Typical configuration
			--
			LW1- 6/560
			LW1-7/450
			LW1-6/350


			Max. average reduction percent
			%
			30
			20
			21


			Designed total reduction percent
			%
			78-88.5
			77.9
			78


			Max. speed of block
			m/min.
			245 (block 6)
			346.9 (block. 7)
			200 (block 6)


			Total power
			kw
			18.5-30
			7.5-11
			7.5-11


			Weight
			kg
			2000
			1500
			1000


			Overall dimensions(L×W×H)
			mm
			1700x1150x1750
			1520x810x1700
			1400x800x1500



Other machines and accessories for wire drawing production are available.
